3. O VERVIEW
3.1 Product Description (cont.)

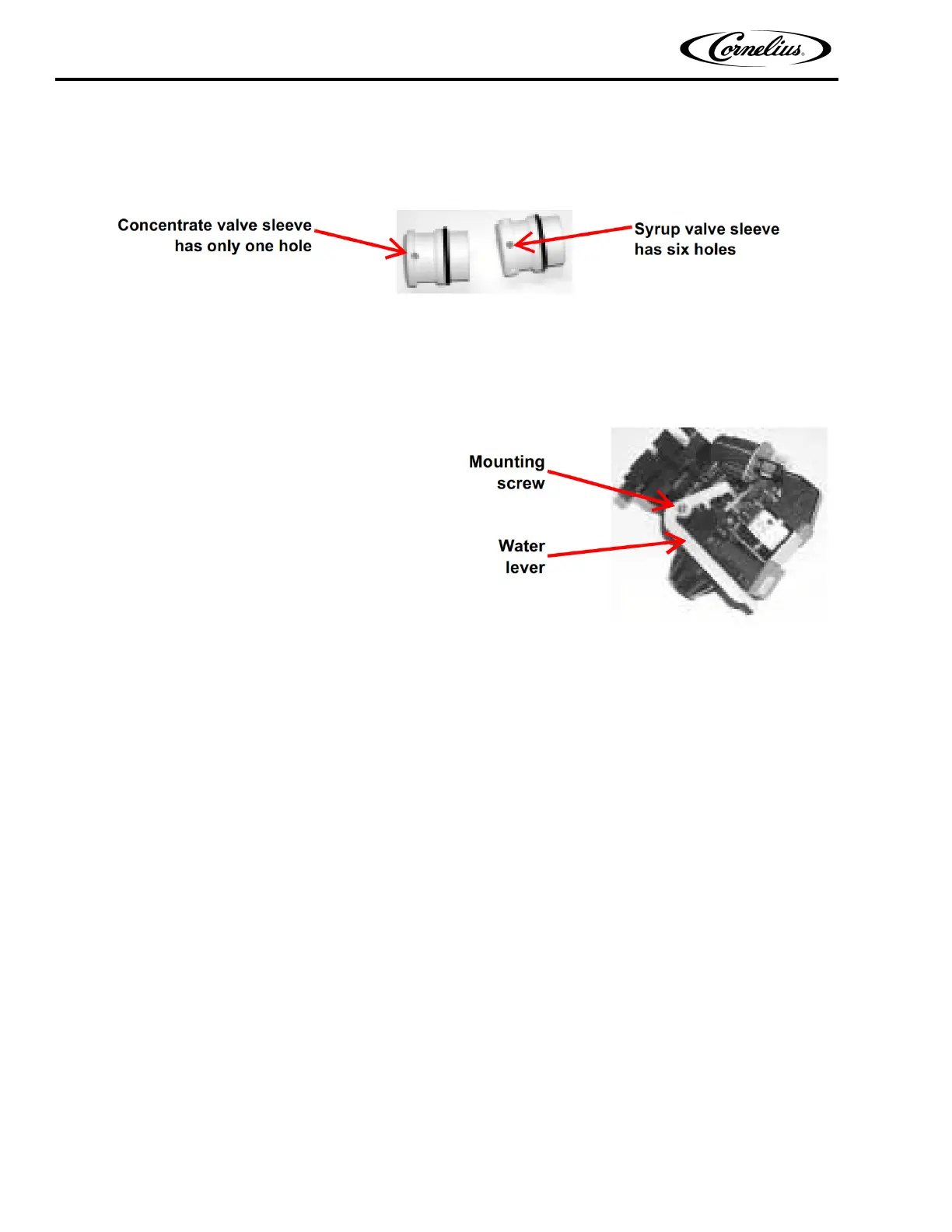

Figure 3
A side water lever kit can be added to a valve allowing for dispensing of water without syrup or concentrate. The side
water lever can be added to either a carbonated drink valve or a non-carbonated drink valve.
Post-mix valves control:
• the ON–OFF of syrup and water,
• the flow rates of syrup and water,
• the mixing of the two ingred
ients as they pour into 
the cup, and
• in some instances - dispensed portion.
Figure 4
3.2 Dimensions & Capacities
Fast Flow: 1 ½ to 3 oz./sec.
UFB-1: 2 to 4 oz./sec.
Ultra Flow: 3 to 4 ½ oz./sec.
Operational temperature range: 10°C (50°F) t
o 43°C (110° F)
Voltage requirements: 22 t
o 27 VAC (50/60 Hz)
Transformer (electronic valves): 80 VA min.
Operating Pressure (flowing): syrup = 20 p
si min; water = 35 psi min.
Concentrates and juices that contain particula
tes must be dispensed from a juice valve.
A slanted drip tray is necessar
y when using an Optifill
TM
valve.
