4. Mechanical
4.1 UF-1 and UFB-1 Valve Disassembly

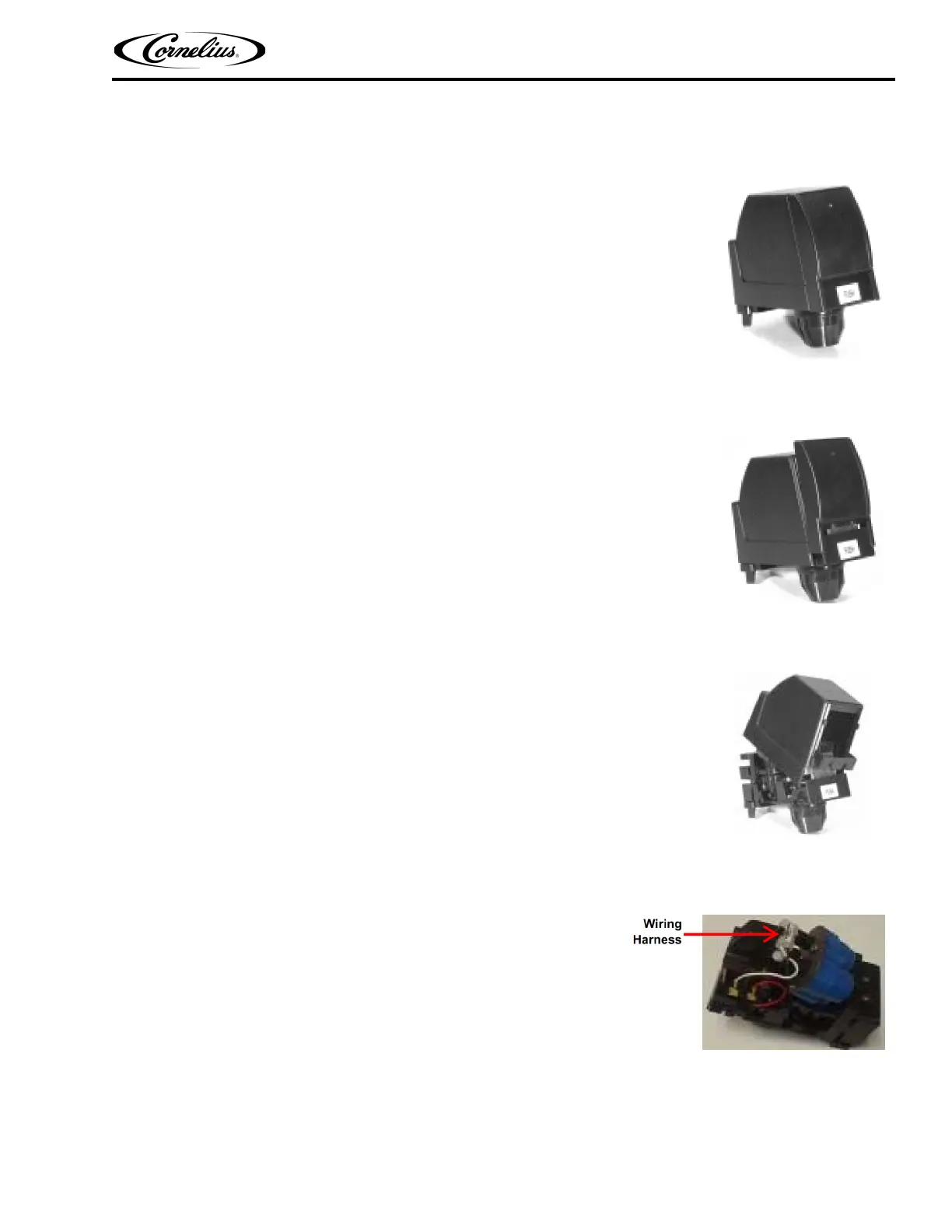

1. Sequence for disassembly (refer to UF-1 Post-mix Dispensing
Valve Illustrated Parts List) is as follows:

Figure 10
________________________________________________________________________________________
2. Remove front cover by lifting.


Figure 11
________________________________________________________________________________________
3. Remove valve cover.



Figure 12
________________________________________________________________________________________
4. Unplug wiring harness.
Figure 13
