UF-1 and UFB-1 Valves Training Manual
© 2023, Marmon Foodservice Technologies Inc. - 10 - Publication Number: 315222001OPR

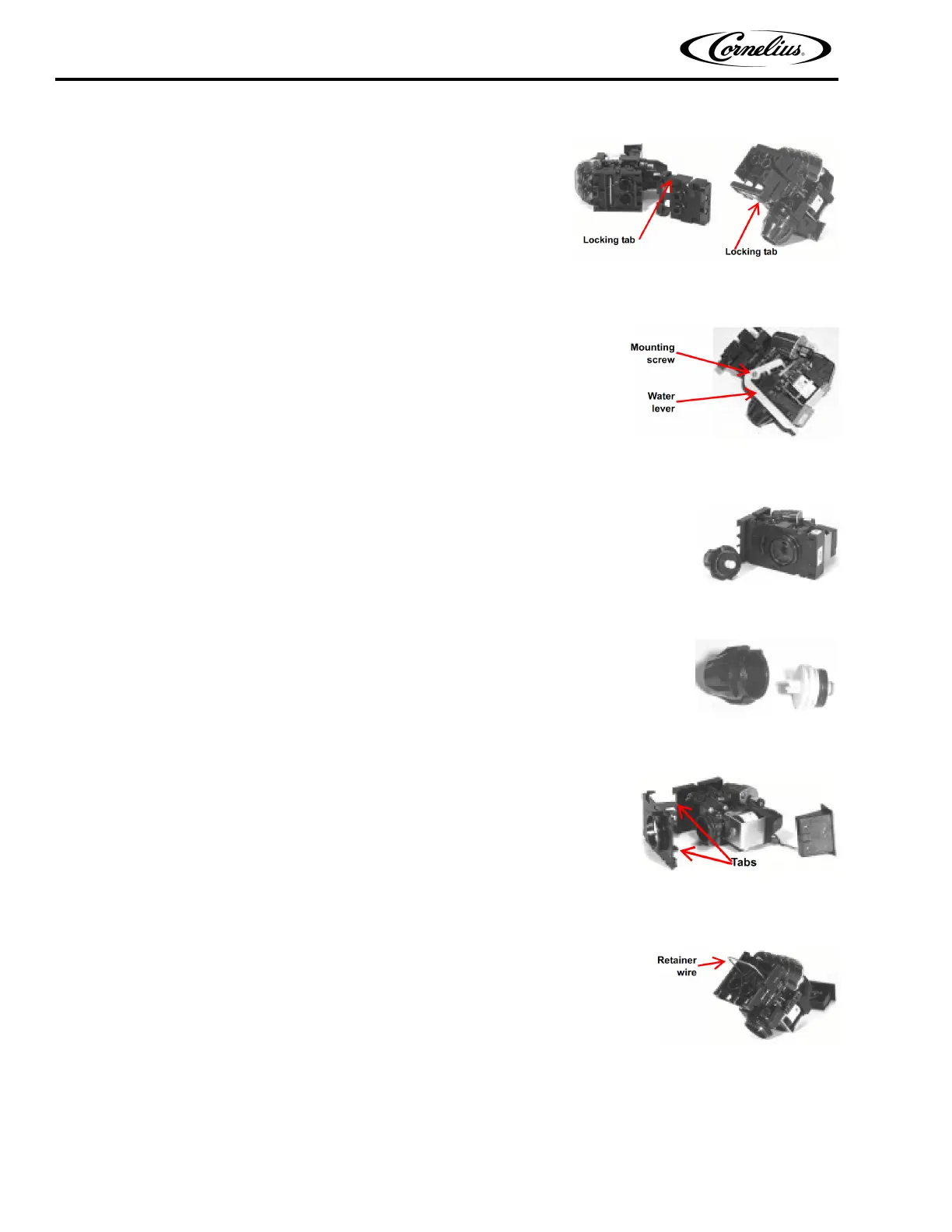

4.1 UF-1 and UFB-1 Valve Disassembly (cont.)
5. Remove valve from mounting block
by pushing locking tab to left and
push down on top plate of block.
Figure 14
________________________________________________________________________________________
6. Remove water screw and lever (if it
is installed on the valve).
Figure 15
________________________________________________________________________________________
7. Remove nozzle – turn left ¼ turn.
Figure 16
________________________________________________________________________________________
8. Remove diffuser assembly.
Note: The diffuser must be cleaned daily. Do not use bleach,
do not use detergent, do not put in dishwasher. Use lukewarm
water or soak in carbonated water.
Figure 17
________________________________________________________________________________________
9. Remove bottom plate by disengaging side tabs.
Figure 18
________________________________________________________________________________________
10. Remove U-shaped retainer wire from back of valve.
Figure 19
