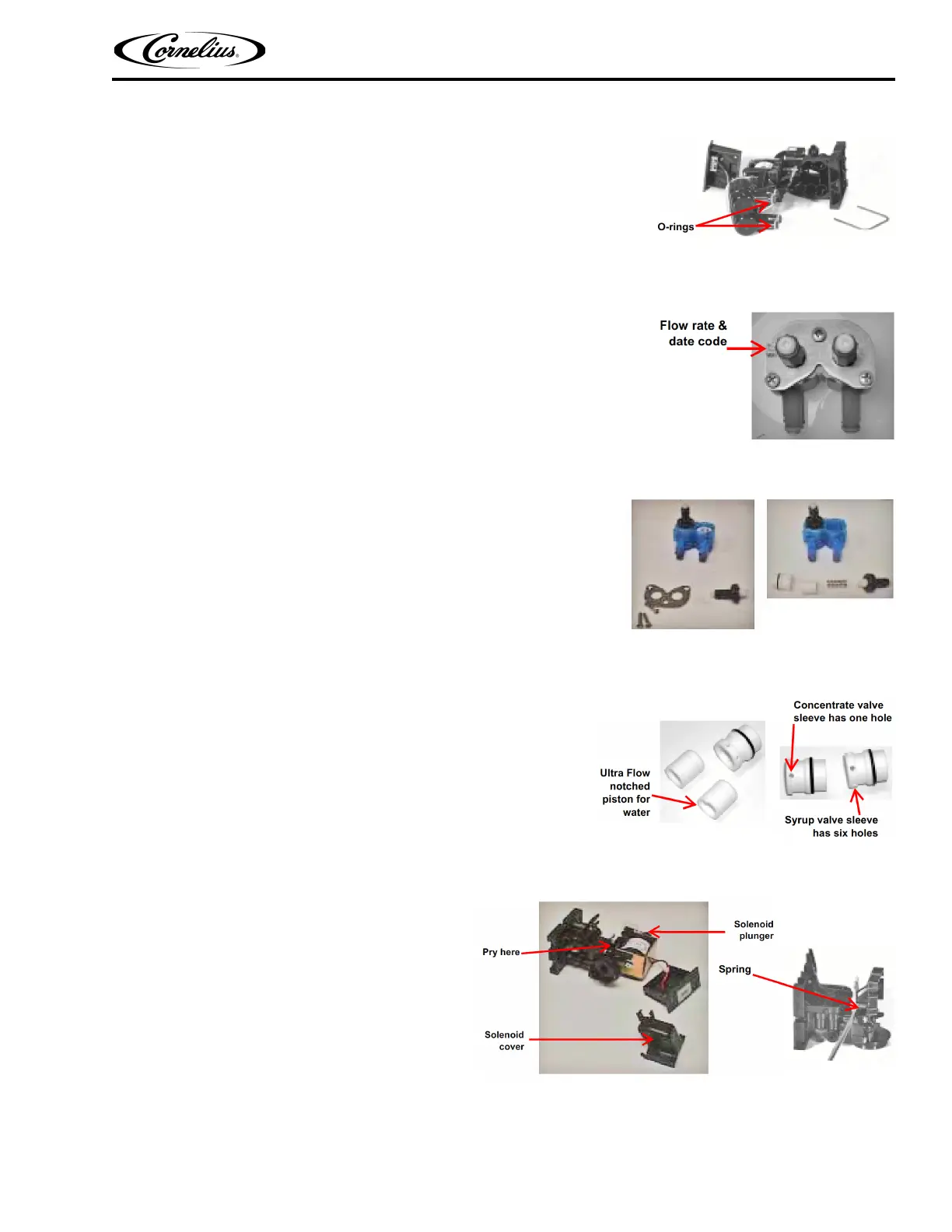

4.1 UF-1 and UFB-1 Valve Disassembly (cont.)
11. Grasp flow control module assembly and pull up.
Note: O-rings on bottom of inlets and outlets.
Figure 20
________________________________________________________________________________________
12. Note that the flow rate (1 ½ - 3, 3 – 4 ½ or 1 ½ - 3 juice) and
date code are printed on the retainer plate.
Figure 21
________________________________________________________________________________________
13. To disassemble the flow control:
Remove screws and pull retainer forward. Remove top flow
control subassemblies exposing flow controls. Note the difference
between high flow and ultra flow valves.
Note: Top Flow control is an assembly and cannot be
dissasembled.
Figure 22
Figure 23
________________________________________________________________________________________
14. Pop off solenoid cover. Remove solenoid
assembly from valve body by prying with
screwdriver.
Note: Check plunger for corrosion and dirt –
replace as necessary.
15. Carefully remove banjo lever springs.
Figure 24
