Corsair HYDRO X Series User Manual

5 6

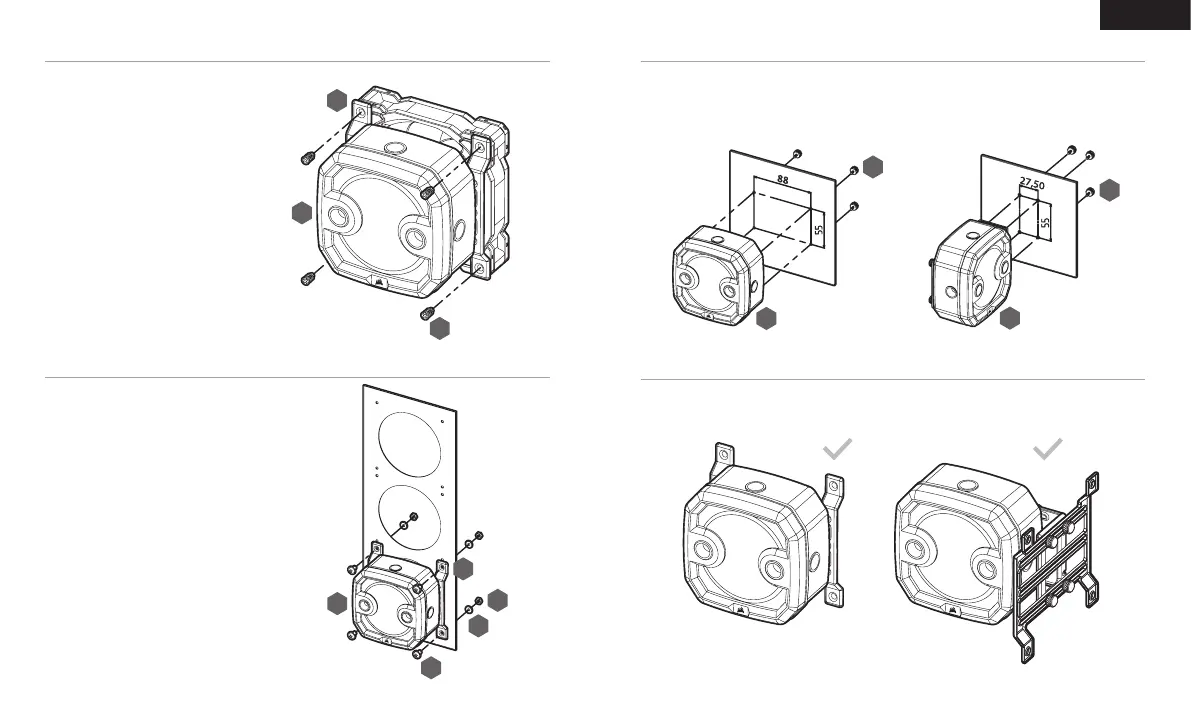

MOUNTING THE XD3 RGB TO A CASE FAN
ENGLISH
Secure the XD3 RGB (A) with the preinstalled 120mm
or 140mm fan mounting adapter plate (C) to a fan
using four enclosed self-tapping fan screws (G).
Secure the XD3 RGB (A) with the preinstalled 120mm
or 140mm fan mounting adapter plate (C) onto a case
fan opening. Use the enclosed M4x8mm screws (J)
along with washers (I) and M4 hex nuts (H).
MOUNTING THE XD3 RGB DIRECTLY TO A CASE FAN SLOT
The XD3 RGB must be installed vertically (see picture below).
MOUNTING THE XD3 RGB DIRECTLY TO A CASE FAN SLOT
XD3 RGB MOUNTING ORIENTATION
A
A
K
K
G
C
A
A
J
I
H
C
Locate the suitable cut-out hole pattern in the chassis that would fit 88mm x 55mm hole pattern (if mounting
the XD3 RGB directly) or 27.5mm x 55mm if using the perpendicular mounting bracket.
If there are no hole patterns available, there is an option to drill the holes using a Ø3,4mm - Ø4mm drill bit.
Secure the unit by screwing four M3 thumb screws (K).
