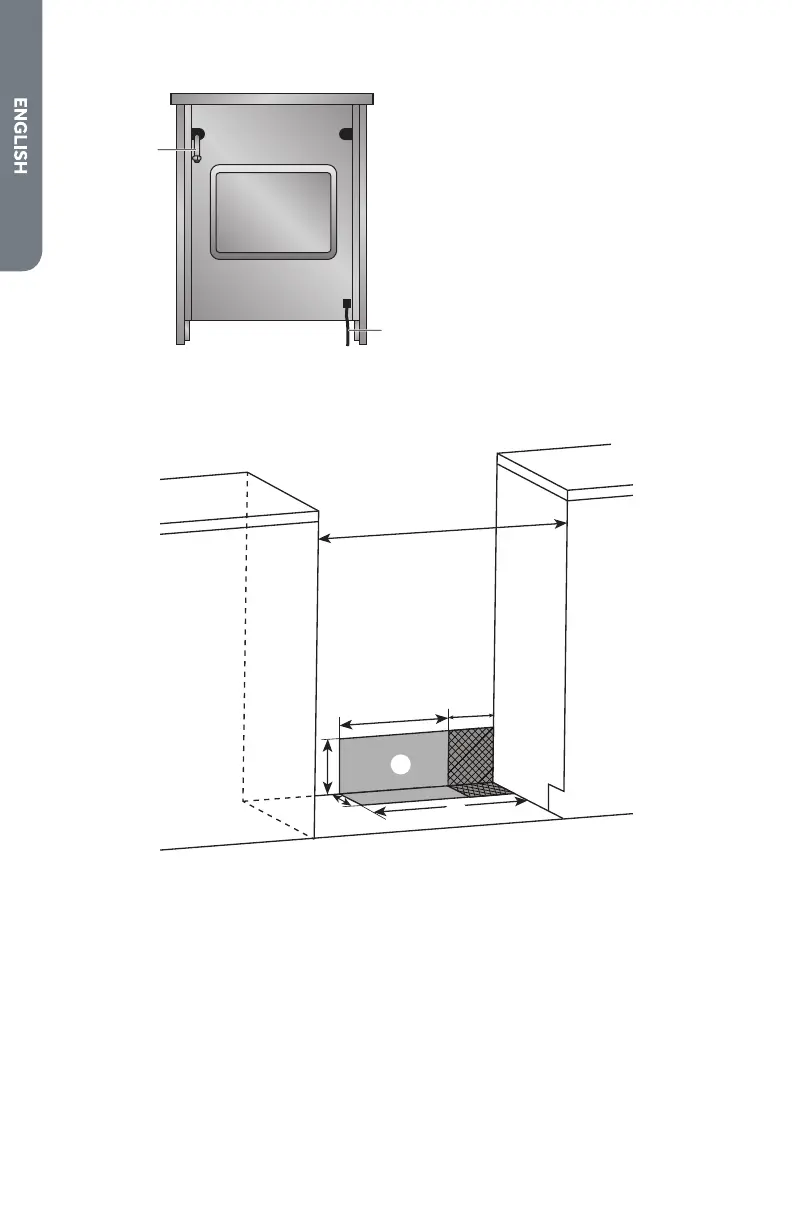

Back of Range
a Gas Line from Range
b Power Cord
Power Supply
IMPORTANT:
mounted, but an electrical outlet in the wall must be recessed to make the
a
b
e
d
g
h
c
f
a
b 11½" (29.2 cm)
c 6" (15.2 cm)
d 7¼" (18.4 cm)
e 3" (7.6 cm)
f 17½" (44 cm)
g Recommended Location for
Electrical Outlet
h Recommended Location for
Gas Supply Connection
*
NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is covered
No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum
or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the cooking and the bottom of an
uncovered wood or metal cabinet.
To Next Page
