Step 3:
Connect installed duct to existing ductwork.
For best performance avoid steep angles in
duct work.
Step 4:
A. Install the Drip Tray inside the bottom
rear of the range hood.
B. Install the baffle filters by inserting at an
angle towards the rear of the range hood.
Push the filter up and insert front of filter
into front recess. Slightly lower the filter
then slide back until it is in proper position.
Rear Mounted Installation
A. Find the key holes in the back of the range hood.
Mark their locations at the installation location with a
pencil or marker.
B. Drill 5/16"
(8mm) hole at each of the marked
locations.
C. Insert anchors into each drilled hole. Firmly
screw them into place.
D. Hang your Range Hood into place by aligning the
anchors with the key holes in the back of the range
hood.

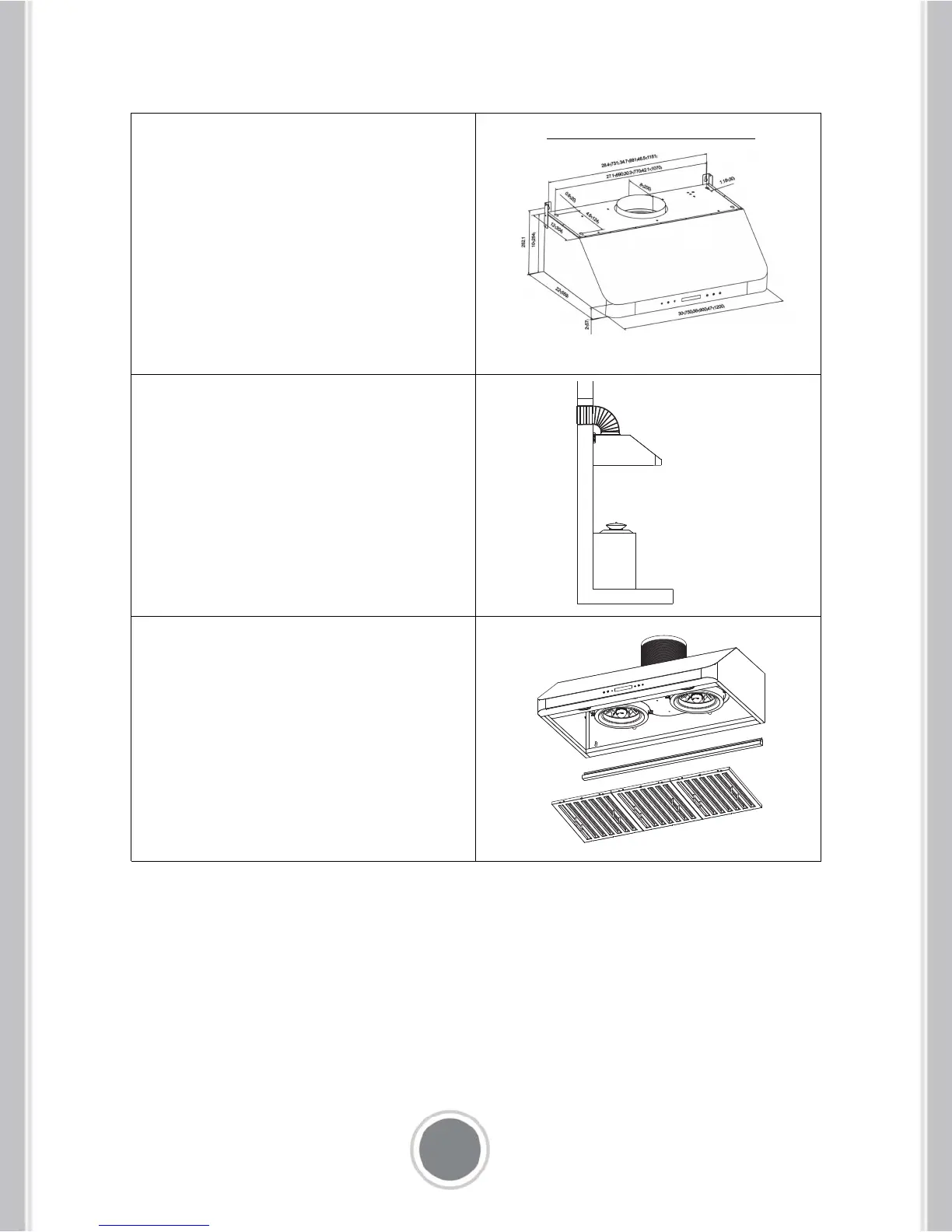

Larger images on Pages 4,5,6
