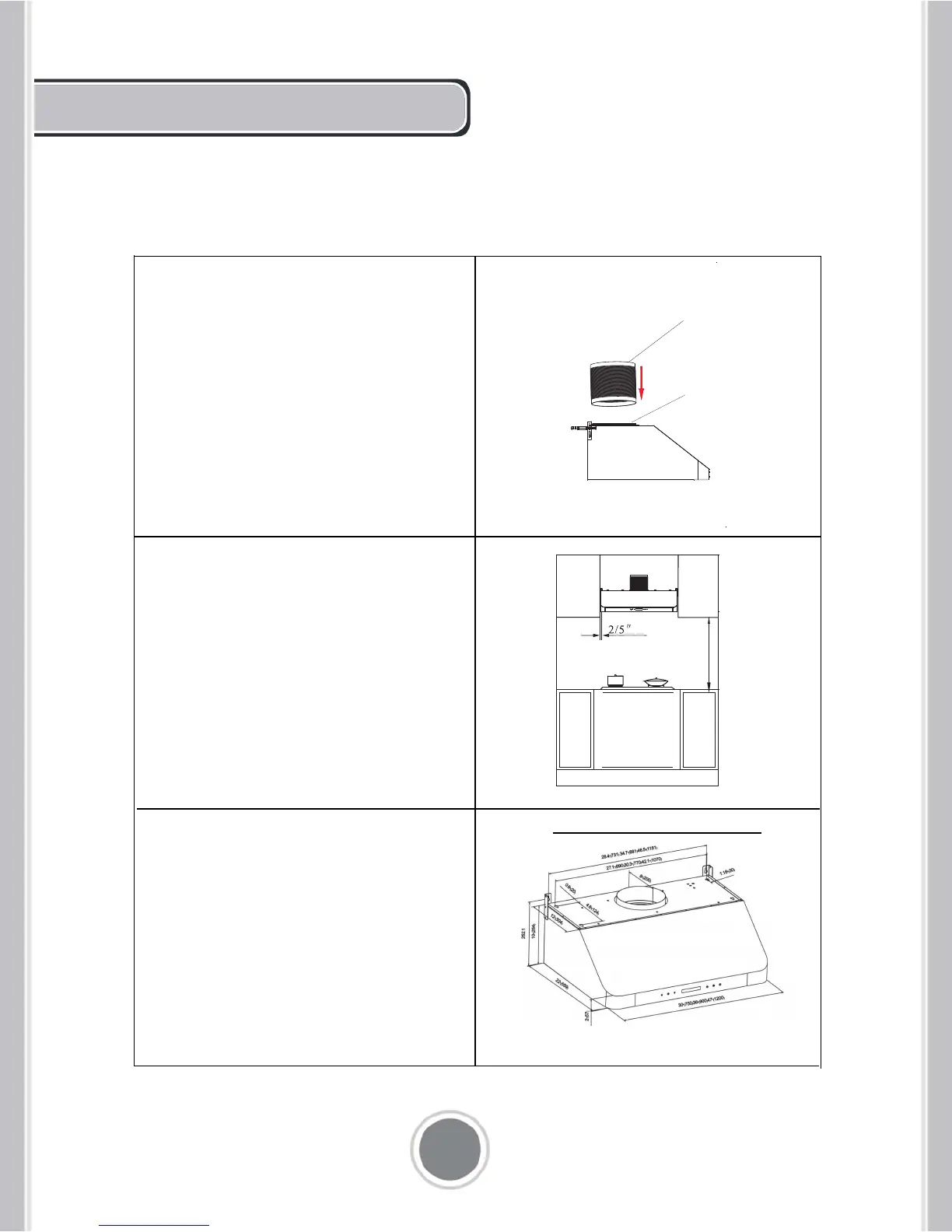

Step 2:
Clearance above stovetop ranging from
24” to 36” is recommended for optimal
performance.
Please measure accordingly before
mounting this unit.
6
INSTALLATION PROCEDURES
24" to 36"
Top Mounted Installation
A. Find the key holes at the top of the range hood.
Mark their locations at the installation location (Bottom
of Cabinet) with a pencil or marker.
B. Drill 5/16" (8mm) hole at each of the
marked
locations.
C.
Insert anchors into each drilled hole. Firmly screw
them into place.
D. Hang your Range Hood into place by aligning the
anchors with the four holes in the top of the range
hood. Push in to place to lock into place
Step 1:
Connect the duct into the damper.
Duct
Damper
CAUTION: HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE
GLOVES WHENEVER IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING,
CLEANING OR SERVICING.
Larger images on Pages 4,5,6
