3-1-4. Function Switch 

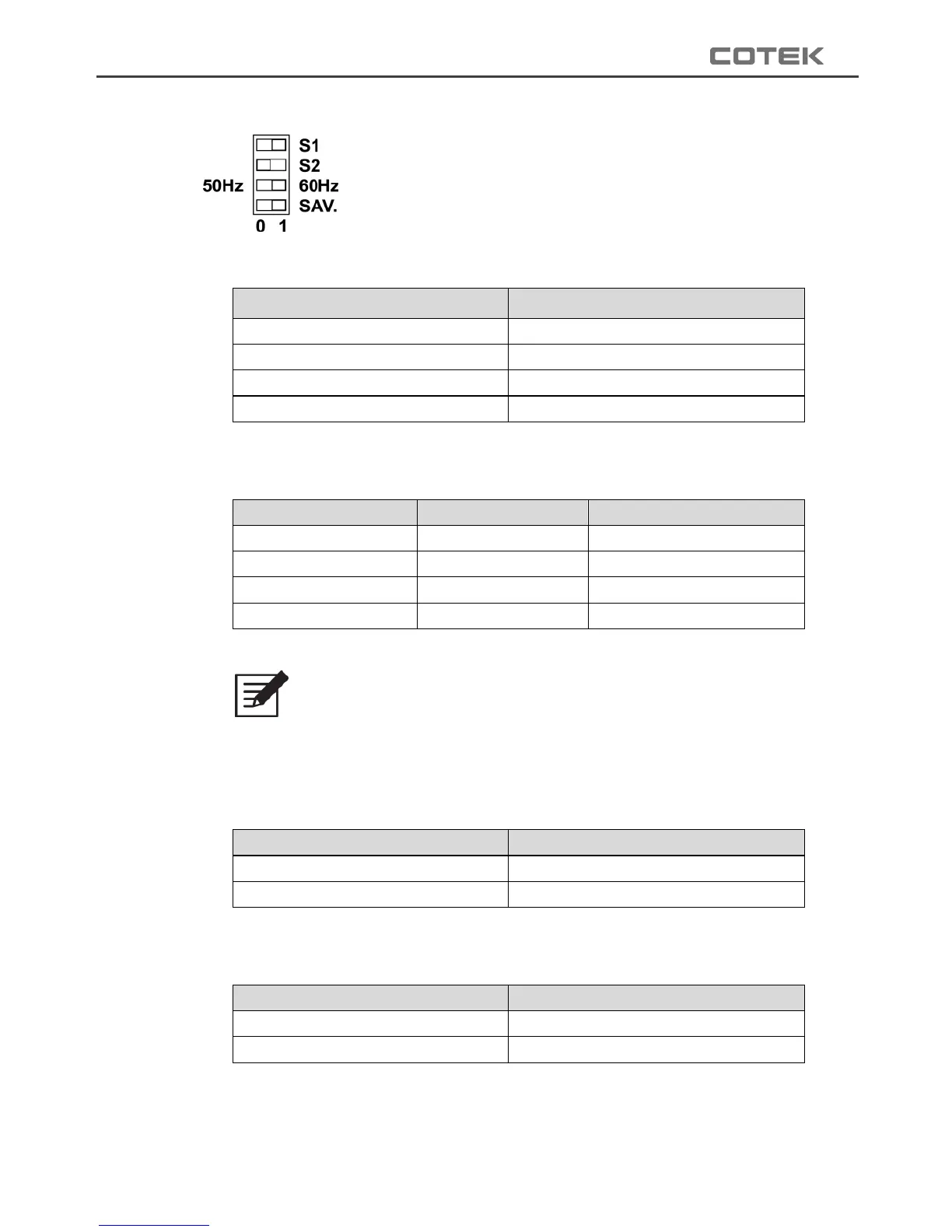

Figure 7. SE series DIP switch
3-1-4-1. Function switch definition
Dip Switch
Function
S1
Voltage select
S2
Voltage select
S3
Frequency Select
S4
Power saving ON/OFF
Table 10. SE series function switch definition
3-1-4-2. Output voltage selection (S1&S2)
Output voltage
S1
S2
100V/200V
0
0
110V/220V
0
1
115V/230V
1
0
120V/240V
1
1
Table 11. SE series output voltage selection
Note：
100V series can be selected between
100/110/115/120VAC, and 200V series can be selected
between 200/220/230/240VAC.
3-1-4-3. Output frequency selection
Frequency
DIP Switch
50Hz
0
60Hz
1
Table 12. SE series output frequency selection
3-1-4-4. Power saving selection
Saving function
DIP Switch
Power Saving OFF
0
Power Saving ON
1
Table 13. SE series power saving selection
