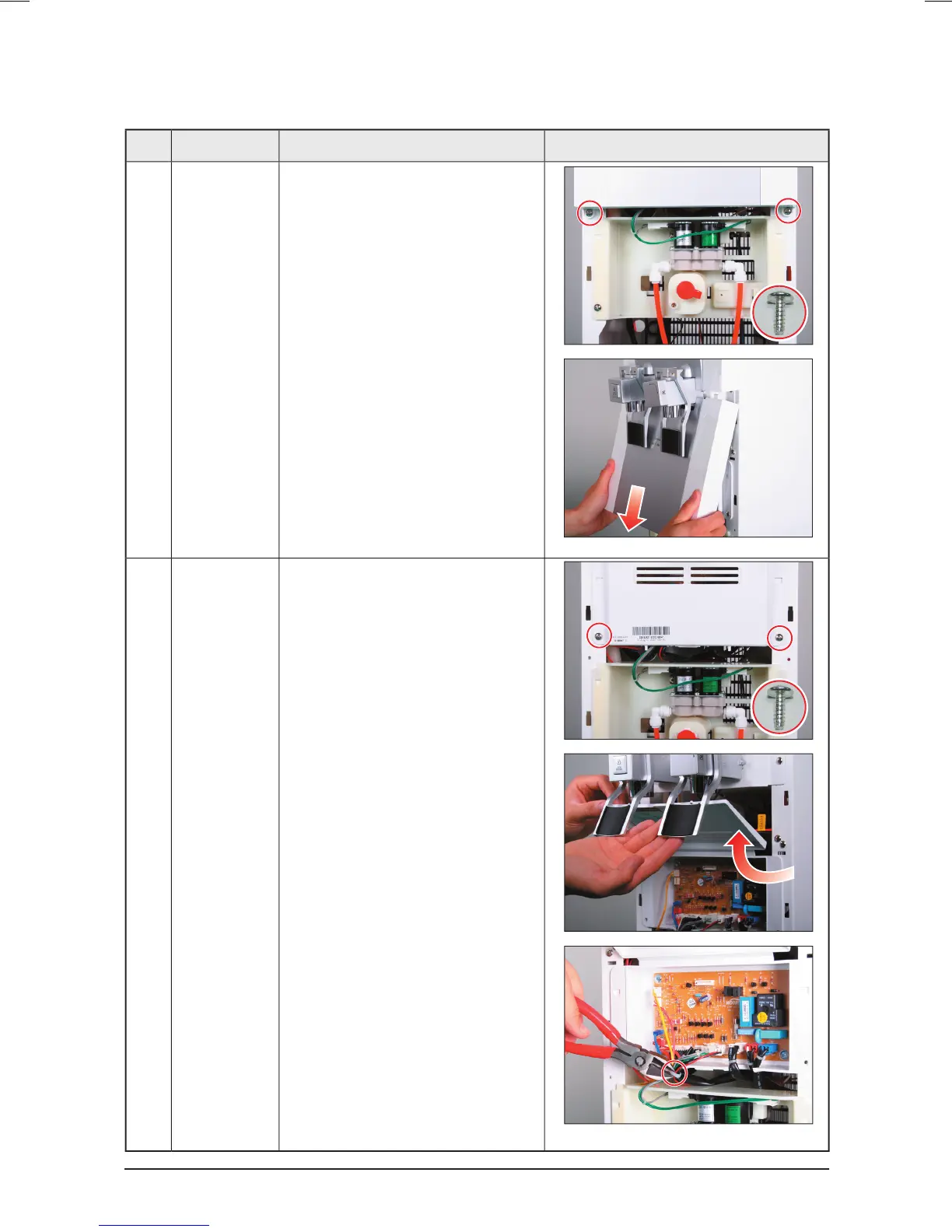

4-2-5 Separating the front middle part
No. Part name Explanation Reference picture
1 Front middle
assy
1) Remove the 2 screws from the
lower part of the front middle
assy.
: 2 screw tappings (THT2, 4x10,
MSWR, Ni-P)
2) Remove the front upper assy by
pulling it downward.
2 Main PBA
assy
1) Remove the 2 screws from the
main PBA assy.
: 2 screw tappings (THT2, 4x10,
MSWR, Ni-P)
2) Lift open the main PBA assy
cover and hold it against the
cocks.
It is convenient to work with
the main PBA assy cover held
against the cocks.
3) Cut the cable tie using a nipper.
To Next Page
