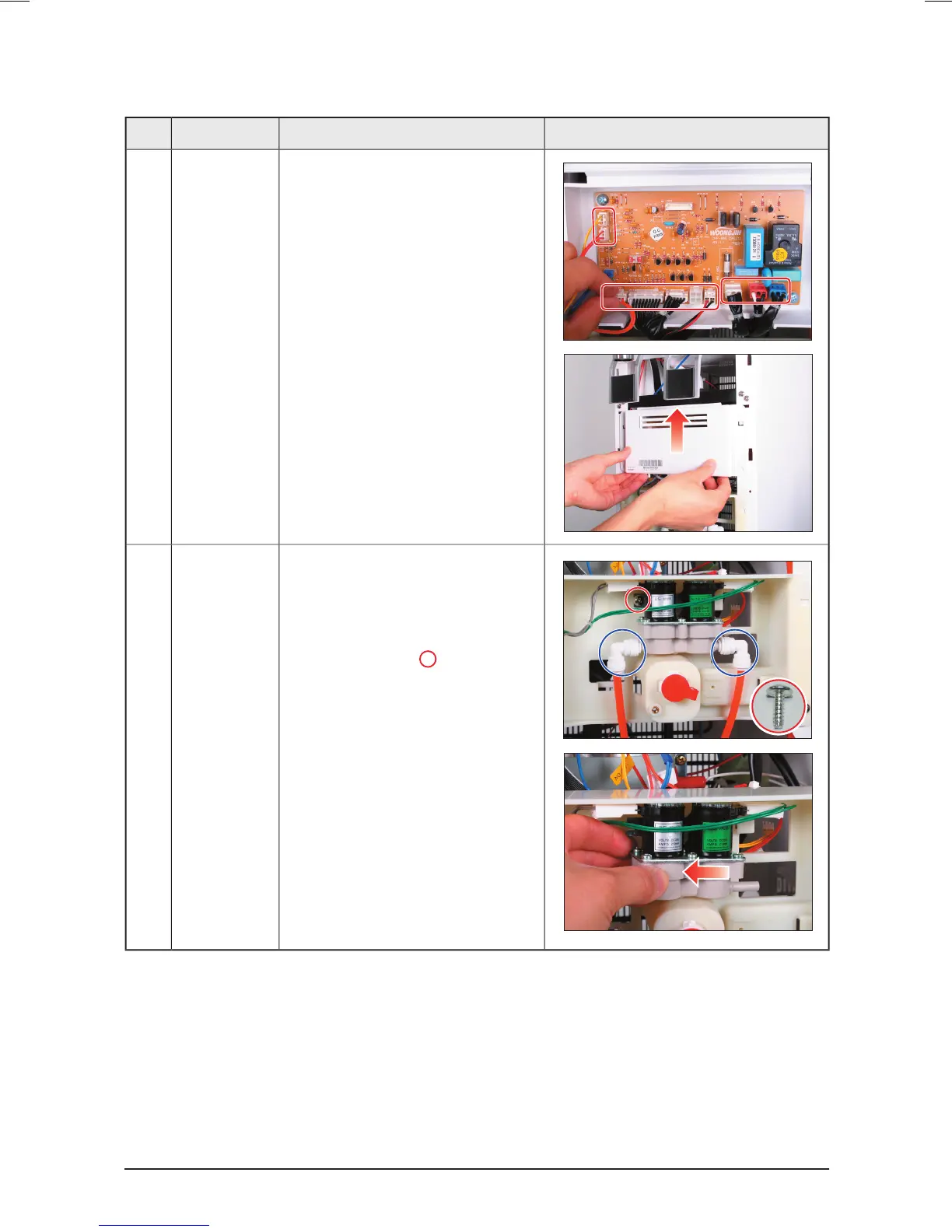

Disassembling and refitting
Coway co., Ltd
4-9
No.
Part name
Explanation
Reference picture
2
Main PBA
assy
4)
Separate all connectors to the
main PBA
assy
.
5)
Remove the main PBA
assy by
lifting it upward.
3
Feed-NOS
V
alve
Assy
1)
Separate the 2 fittings and
remove the screw from the
Feed-NOS valve assy
.
:
Screw tapping (THT2, 4x10,
MSWR, Ni-P)-
2)
Remove the Feed-NOS V
alve
Assy in the left direction.
CHP-06EL-eng.indb 9
2007-10-19 ｿﾀﾈﾄ 1:04:06
28
30
Table of Contents
Default Chapter
3
Table of Contents
3
1 Precaution
5
Precautions on Electricity
5
Precautions on Installation
6
Precautions on Use
7
Precautions on Services
8
2 Product Characteristics and Specifications
9
Product Characteristics
9
Characteristics of Major Parts
10
Major Specifications
11
Appearance and Dimensions
12
3 Product Installation
15
Installation Materials
15
Parts
15
Installation Method
16
Precautions on Installation
16
Installing the Product
17
Using the Product after Installation
19
4 Disassembling and Refitting
21
Disassembling and Refitting Information
21
Necessary Tools
21
Draining Water before Disassembling the Product
22
Draining Water
22
Separating the Front Upper Part
25
Separating the Front Lower Part
25
5 Fault Diagnosis
33
Checking Faults by Symptoms
33
Control Specifications
36
Electrical Wiring Diagram
36
Basic Specifications
36
Major Functions
38
6 Exploded View of the System and the List of Service Parts
48
Exploded View and Parts List of CHP-06EL
48
Service Parts List of CHP-06EL
50
7 Parts Location Diagrams
53
Electrical Wiring Diagram
53
Cable Specification
54
Water Piping Diagram
57
PBA Location Diagram
58
Main
58
Button Switch
60
Smps L Type
61
8 Circuit Diagrams
63
Main
63
Button Switch
64
Smps L Type
65
9 Reference Information
67
Names of each Part
67
Functions and Reference Information
69
Explanation of Indication and Operation Parts
69
Types and Functions of Filters
71
The 5-Step Water Filtering System
72
Toto Services
73
Filter Replacement
73
Replacing Filters
74
Cleaning and Maintenance
76
