Coway CHP-06EL Service Manual

Disassembling and refitting
4-10
Coway co., Ltd

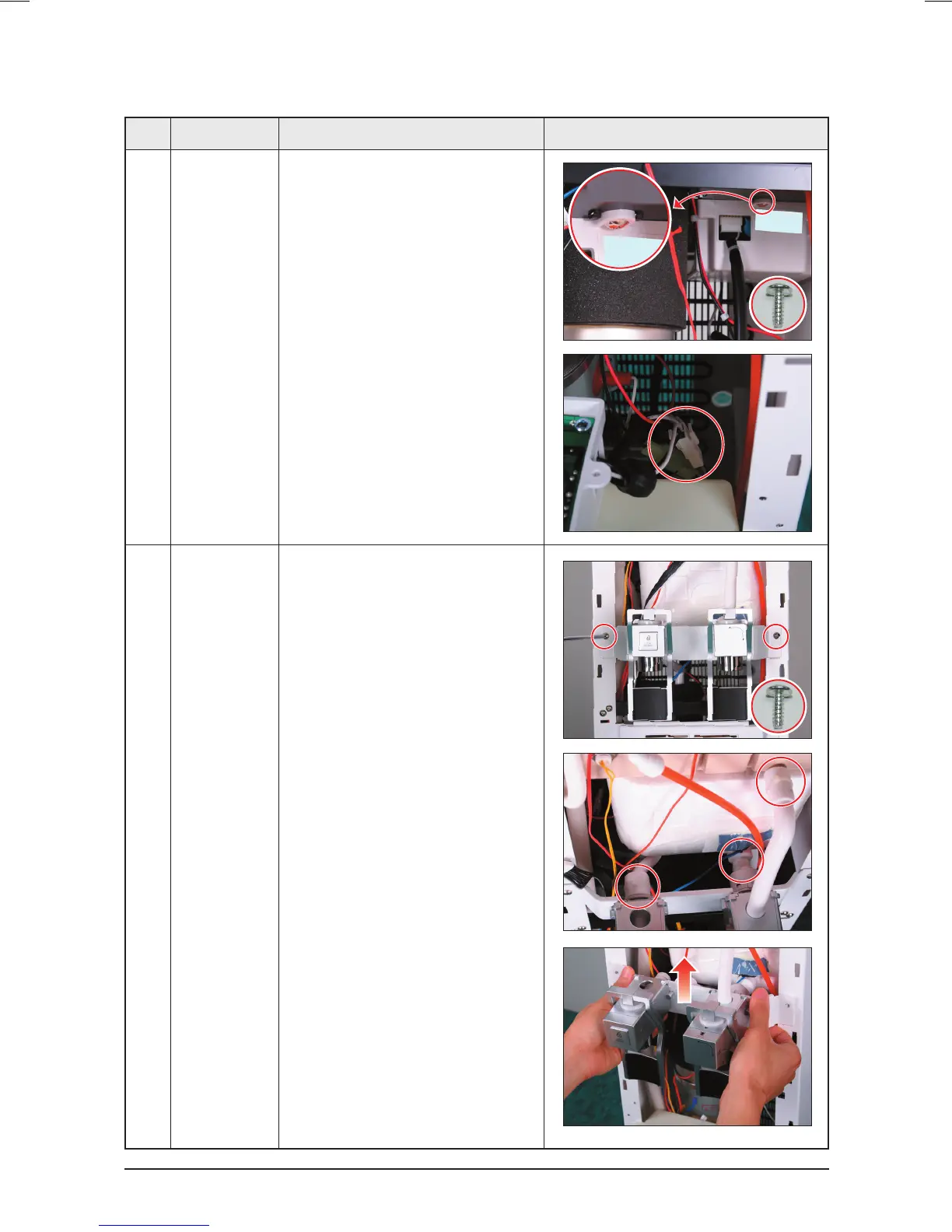

No. Part name Explanation Reference picture
4 SMPS Assy 1) Remove the screw from the
SMPS assy.
: Screw tapping (THT2, 4x10,
MSWR, Ni-P)
2) Separate the SMPS assy
completely by separating the
connector.
5 Cock bracket
assy
1) Remove the 2 screws from the
cock bracket assy.
: 2 screw tapping (THT2, 4x10,
MSWR, Ni-P)
2) Separate the 3 fittings connected
to each tank and take out the
silicon hose.
3 ) Separate the cock bracket assy
in the direction of the arrow.
