COZY CDV142E - CDV14 Series Furnace Assembly Parts; Furnace Assembly Exploded View and Parts List

20
MODEL NUMBERS
1
Face Panel 4310 4310
2
Combustion Chamber Shield 8A72 8A72
3
Combustion Chamber 6303 6303
4
Flue Tube Gasket (2 Req.) P147001/2 P147001/2
5
Inner Casing 8B62 8B62
6
Air Inlet Gasket P147000 P147000
7
Air Inlet Shield (Standard Maximum 9" Thick Wall) 6C54-1 6C54-1
8
Vent Cap 9306 9306
9
Air Inlet Collar (Standard Maximum 9" Thick Wall) 6C60 6C60
10
Flue Extension (Standard Maximum 9' Thick Wall) 6A193 6A193
11
Mounting Spacer Plate 8B64 8B64
12
Air Inlet Gasket P121800 P121800
REF.
NO.
REPLACEMENT PART DESCRIPTION NATURAL CDV142E PROPANE CDV141E

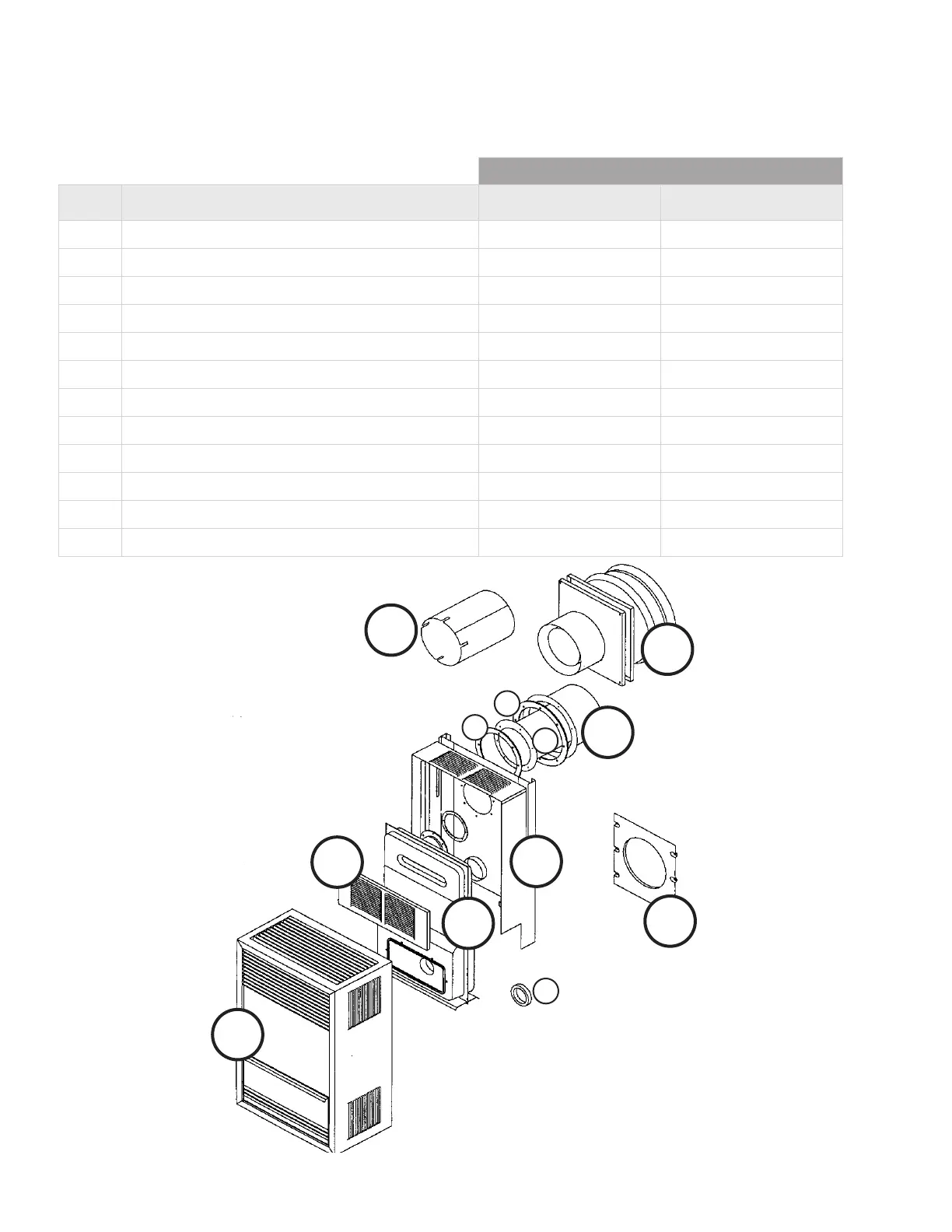

FURNACE ASSEMBLY EXPLODED VIEW & REPLACEMENT PARTS
CDV14 MODELS
1
2
3
4
5
6
7
8
9
10
11
12
