COZY CDV142E - CDV22;CDV30 Series Furnace Assembly Parts; Furnace Assembly Exploded View and Parts List

24
REF.
NO.
REPLACEMENT PART DESCRIPTION
NATURAL
CDV222E
PROPANE
CDV221E
NATURAL
CDV302E
PROPANE
CDV301E
1
Face Panel 4320 4320 4320 4320
2
Combustion Chamber Shield 6B149 6B149 6B149 6B149
3
Flue Tube Gasket (2 Req.) P147001 P147001 P147001 P147001
4
Flue Extension (Standard Maximum 9" Thick Wall) 8A51 8A51 6A190 6A190
5
Air Inlet Gasket P147000 P147000 P147000 P147000
6
Air Inlet Collar (Standard Maximum 9" Thick Wall) 6C60 6C60 6C51 6C51
7
Mounting Spacer Plate 6C66 6C66 6C66 6C66
8
Air Inlet Shield (Standard Maximum 9" Thick Wall) 6C54-1 6C54-1 6C54-1 6C54-1
9
Vent Cap 9306 9306 9306 9306
10
Inner Casing 6D20 6D20 6D20 6D20
11
Air Inlet Gasket (2 Req.) P121800 P121800 P121800 P121800
12
Combustion Chamber 6304 6304 6304 6304
13
Leg Cover Plate 6B25 6B25 6B25 6B25
14
Bottom Heat Shield – – 6A240 6A240

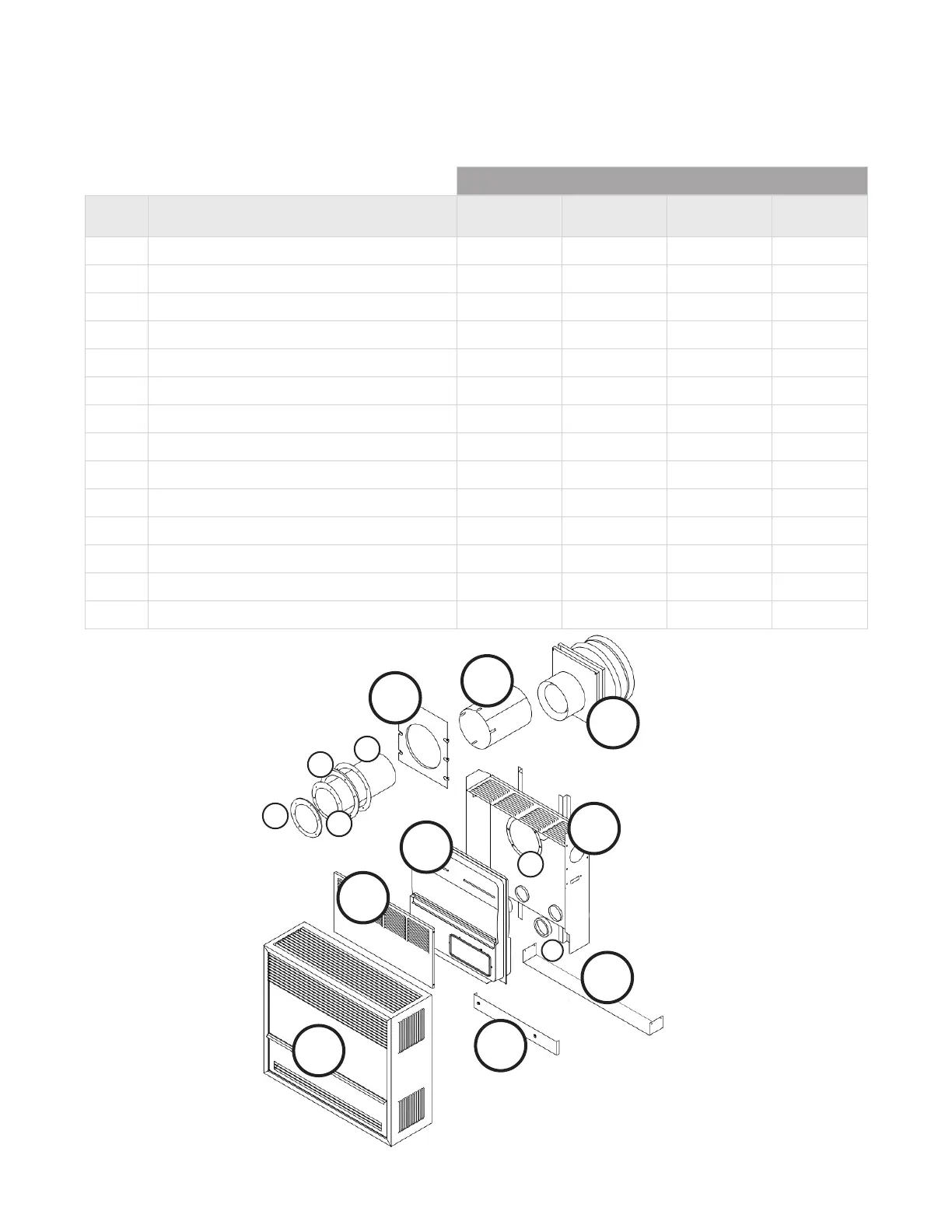

FURNACE ASSEMBLY EXPLODED VIEW & REPLACEMENT PARTS
CDV22 / CDV30 MODELS
MODEL NUMBERS
1
2
3
4
5
6
7
8
9
10
11
3
12
13
14
