Sliding Table Assembly

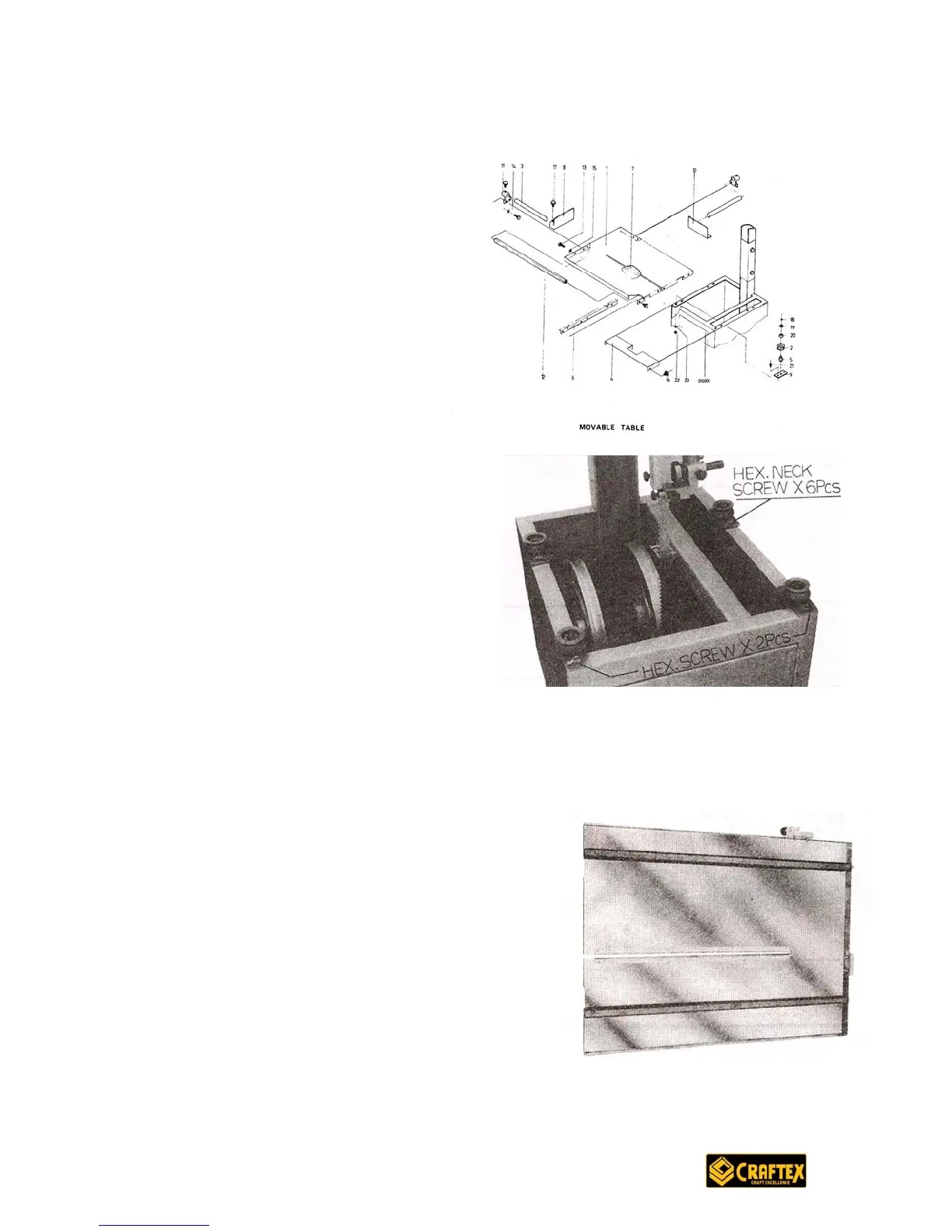

Assemble the sliding table as indicated in
the following schematic diagram.
(See page 18 for an exploded view)
Assembly of the Rollers
Mount the four rollers on the band saw
frame as shown. Do not tighten, as further
adjustments may be required.
Assembly of the Table
Place the two guide rails on the underside of the table, using screws and washers to fix one end
of the rails to the table. Place the table on the saw frame
and carefully adjust the rails and rollers to make sure
that the table assembly slides smoothly.
