9
Assembly of the Meat Grinder

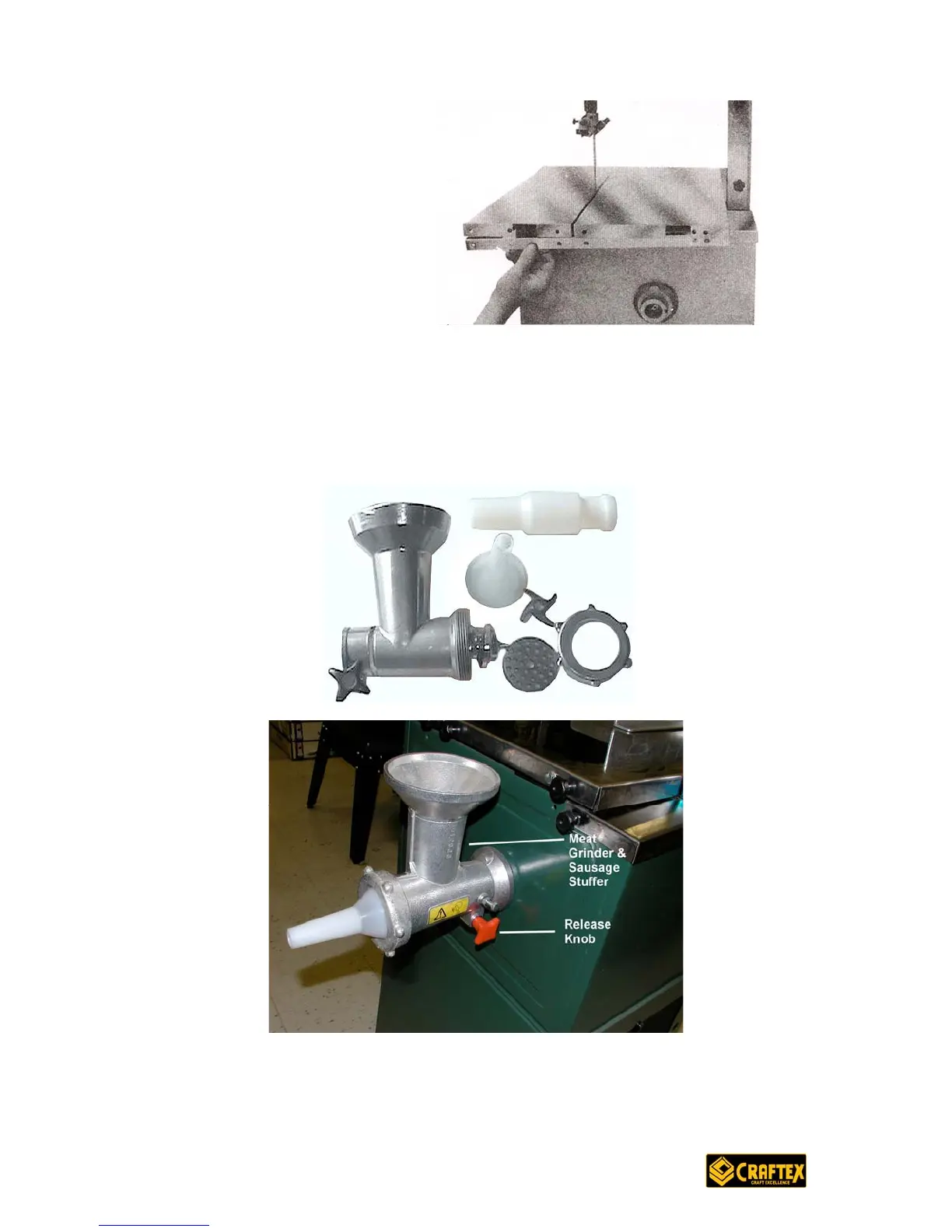

The following illustration shows the components and assembly procedure of the included meat
grinder. The photo shows the position on the band saw and the lock knob.
Assembly of the “L”
Plate
As shown, fix the “L” plate onto the
table edge, then screw and tighten
the other end of the rails on the
table. Adjust the table to be sure
that the bandsaw blade is in the
middle of the opening. You may
now tighten the four rollers.
