Lifting ＆ Installation
It is recommended that this machine is lifted by the use of a crane or hoisting mechanism as it is
very heavy.

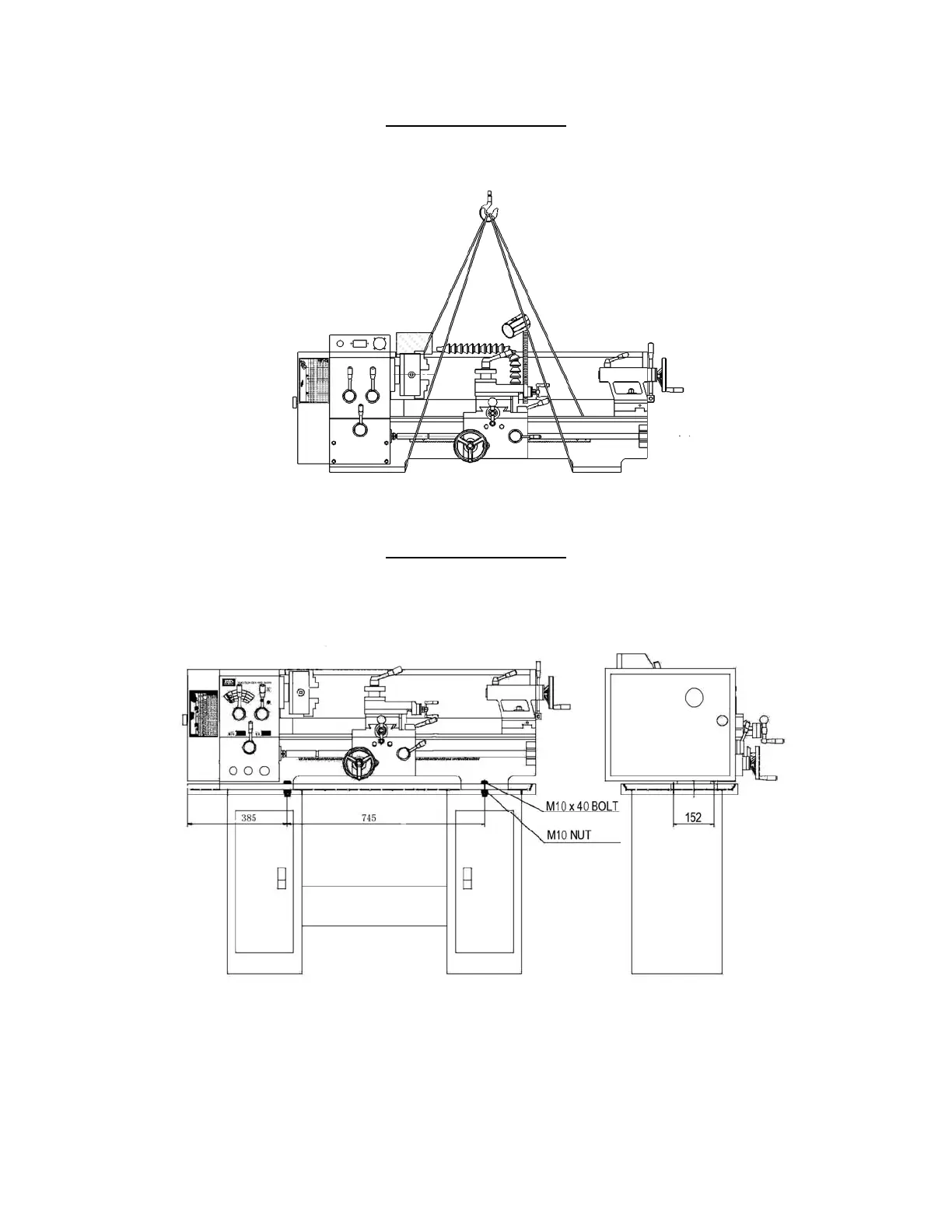

Fig 2. Lifting drawing.
Lifting ＆ Installation
Please refer to figure 3 when installing this machine. As this lathe is for the most part
pre-assembled at the factory, there is not a great deal of assembly for the end user. Line up the
four bolt holes with the stand and carefully place the lathe on the stand.
Fig 3. Installation drawing.
After installation, be sure to clean the antiseptic coat (used to preserve and protect during
shipping) off the guide carriage, tail stock, change gear and pulley with a clean cloth and
non-corrosive cleaner.
