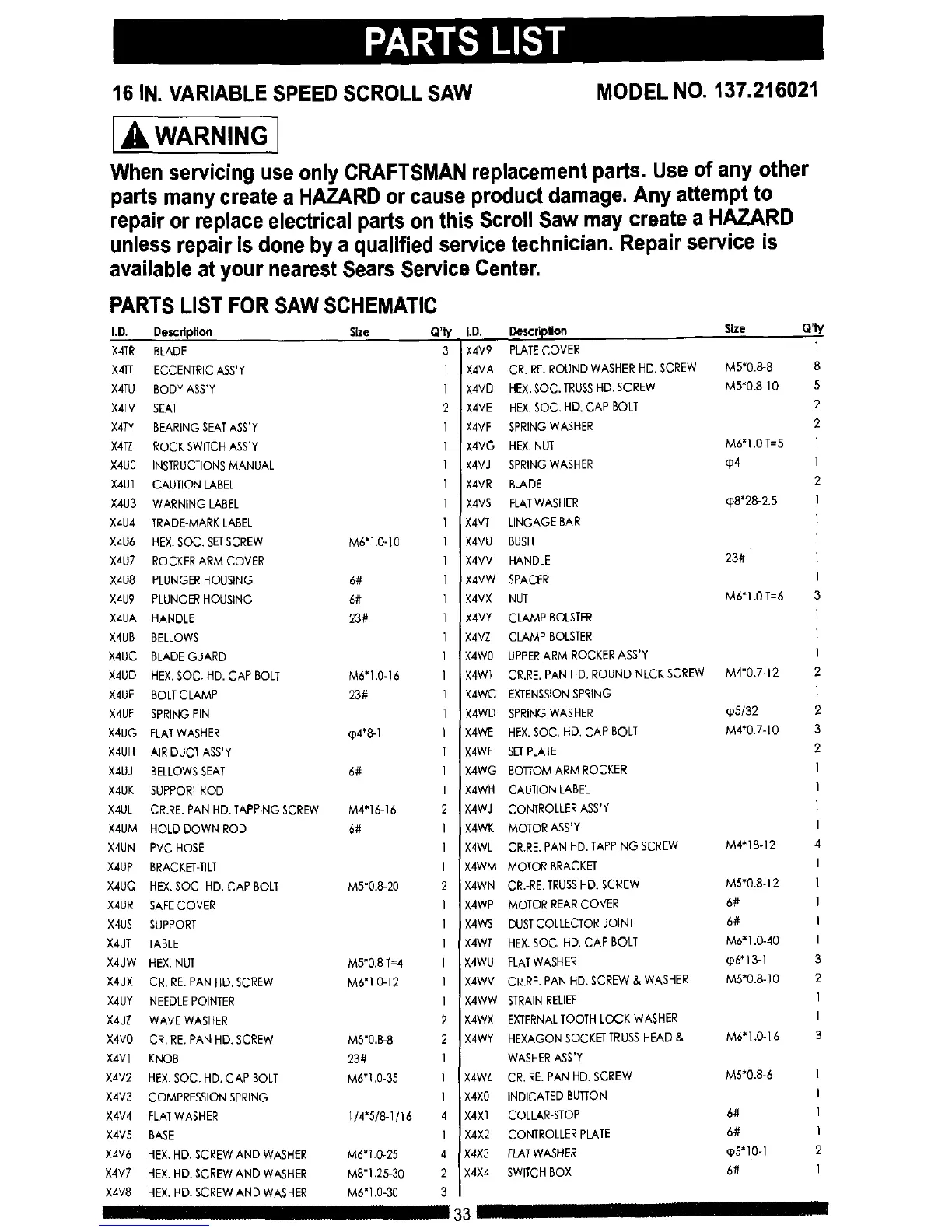

16 IN. VARIABLE SPEED SCROLL SAW
MODEL NO. 137.216021
_AWARNING I
When servicing use only CRAFTSMAN replacement parts. Use of any other
parts many create a HAZARD or cause product damage, Any attempt to
repair or replace electrical parts on this Scroll Saw may create a HAZARD
unless repair is done by a qualified service technician. Repair service is
available at your nearest Sears Service Center,
PARTS LIST FOR SAW SCHEMATIC
l.O. Oescdplton Size
X4TR BLADE
X41_ ECCENTRIC ASS'Y
X4TU BODY ASS'Y
X4TV SEAT
X4TY BEARING SEATASS'Y
X4TZ ROCK SWITCH ASS'Y
X4U0 INSTRUCTIONSMANUAL
X4Ul CAUTION LABEL
X4U3 WARNING LABEL
X4U4 TRADE-MARK LABEL
X4U6 HEX. SOC. BETSCREW M6'I.0-I0
X4U7 ROCKER ARM COVER
X4U8 PLUNGER HOUSING 6#
X4U9 PLUNGER HOUSING 6#
X4UA HANDLE 23#
X4UB BELLOWS
X4UC BLADE GUARD
X4UD HEX.SOC. HD. CAP BOLT M6"I.0-16
X4UE BOLT CLAMP 23#
X4UF SPRINGPiN
X4UG FLAT WASHER (p4'8-I
X4UH AIR DUCT ASS'Y
X4UJ BELLOWSSEAT 6#
X4UK SUPPORTROD
X4UL CR.RE. PAN HD. TAPPING SCREW M4"16-16
X4UM HOLD DOWN ROD 6#
X4UN PVC HOSE
X4UP BRACKET-TILT
X4UQ HEX, SOC, HD. CAP BOLT M5"0.8-20
X4UR SAFE COVER
X4US SUPPORT
X4UT TABLE
X4UW NEX. NUT M5*0.8T=4
X4UX CR. RE.PAN HD. SCREW M6'1.0-12
X4UY NEEDLE POINTER
X4UZ WAVE WASHER
X4V0 CR. RE. PAN HD. SCREW MB*0.B-8
X4VI KNOB 23#
X4V2 HEX.BOC. HD, CAP BOLT M6'1,0-35
X4V3 COMPRESSION SPRING
X4V4 FLATWASHER I/4%/8-I/I 6
X4VB BASE
X4V6 HEX. HD. SCREWAND WASHER M6*l.G-25
X4V7 HEX. HD. SCREWAND WASHER M8"!.25-30
X4V8 HEX. HD. SCREW AND WASHER M6'1.0-30
IIIII
Q'b'
I.D. Description Size Q'ly
X4V9 PLATECOVER I
X4VA CR. RE. ROUND WASHER HD. SCREW M5'0.8-8 8
X4VD HEX.SOC.TRUSS ND. SCREW M5'0.8-I0 5
X4VE HEX.SOC. HD. CAP BOLT 2
X4VF SPRING WASHER 2
x4VG HEX.NUT M6*!.0T=5 I
X4VJ SPRINGWASHER q)4 1
X4VR BLADE 2
X4VS FLATWASHER (p8'28-2.5 1
X4VT LINGAGE BAR 1
X4VU BUSH 1
X4VV HANDLE 23# 1
X4VW SPACER 1
X4VX NUT M6'1.0 T=6 3
X4VY CLAMP BOLSTER I
X4VZ CLAMP BOLSTER I
X4W0 UPPERARM ROCKERABS'Y I
X4W1 CR.RE. PAN HD. ROUND NECKSCREW M4'0.7-12 2
X4WC EXTENSSIONSPRING 1
X4WD SPRING WASHER (p5/32 2
X4WE HEX.SOC, HD. CAP BOLT M4"0.7-10 3
X4WF SETPLATE 2
X4WG BOT[OM ARM ROCKER I
X4WH CAUTION LABEL I
X4WJ CONTROLLER ASS'Y I
X4WK MOTOR ASS'Y 1
X4WL CR.RE. PAN HD. TAPPING SCREW M4"18-12 4
X4WM MOTOR BRACKET I
X4wN CR.-RE. TRUSSHD. SCREW M5"0.8-!2 I
X4WP MOTOR REAR COVER 6# I
X4WS DUSTCOLLECTOR JOINT 6# !
X4WT HEX. SOC. ND, CAP BOLT M6*1.0-40 I
X4WU FLATWASHER (p6'13-1 3
X4WV CR.RE. PAN HD. SCREW & WASHER MB*0.8-10 2
X4WW STRAINRELIEF 1
X4WX EXTERNALTOOTH LOCK WASHER I
X4WY HEXAGON SOCKETTRUSS HEAD & M6"I.0-16 3
WASHERASS'Y
X4WZ CR. RE.PAN HD. SCREW M5"0.8-6 I
X4X0 INDICATED BUT[ON I
X4XI COLLAR-STOP 6# I
X4X2 CONTROLLER PLATE 6# I
JX4X3 FLATWASHER (pB*I 0-1 2
X4X4 SWITCH BOX 6# 1
33 -- I III ]11
