Header Wall
Header Bracket
.... Rail Bracket
Garage
Door

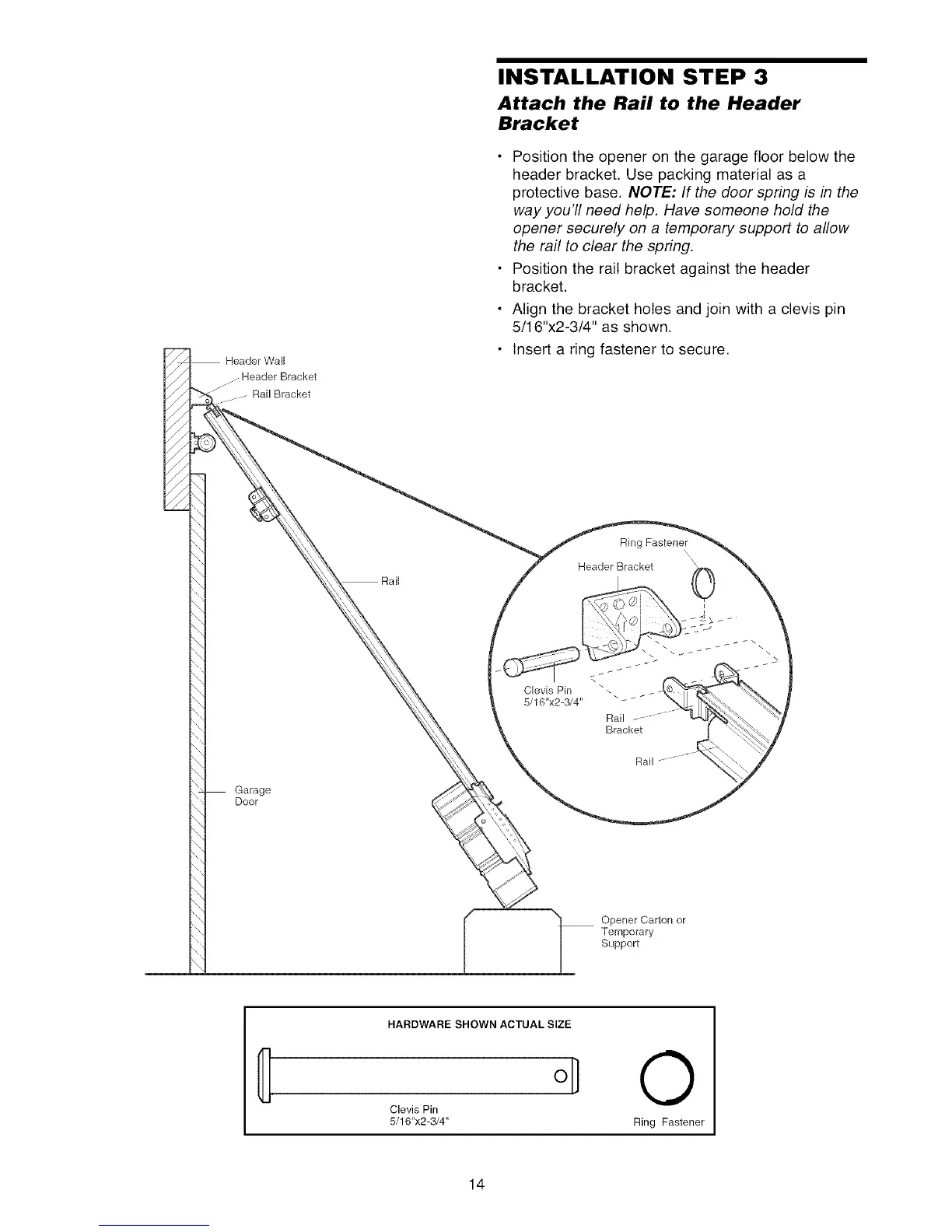

INSTALLATION STEP 3
Attach the Rail to the Header
Bracket
• Position the opener on the garage floor below the
header bracket. Use packing material as a
protective base. NOTE: If the door spring is in the
way you'll need help. Have someone hold the
opener securely on a temporary support to allow
the rail to clear the spring.
• Position the rail bracket against the header
bracket.
• Align the bracket holes and join with a clevis pin
5/16"x2-3/4" as shown.
• Insert a ring fastener to secure.
Ring Fastener
Header Bracket 0
i
_x
J
Clevis Pin
5/16"x2-3/4" \ -
Rail ...........
Bracket
Rail
Opener Carton or
Temporary
Support
HARDWARE SHOWN ACTUAL SIZE
o}
Clevis Pin
5/16"x2-3/4"
O
Ring Fastener
14
