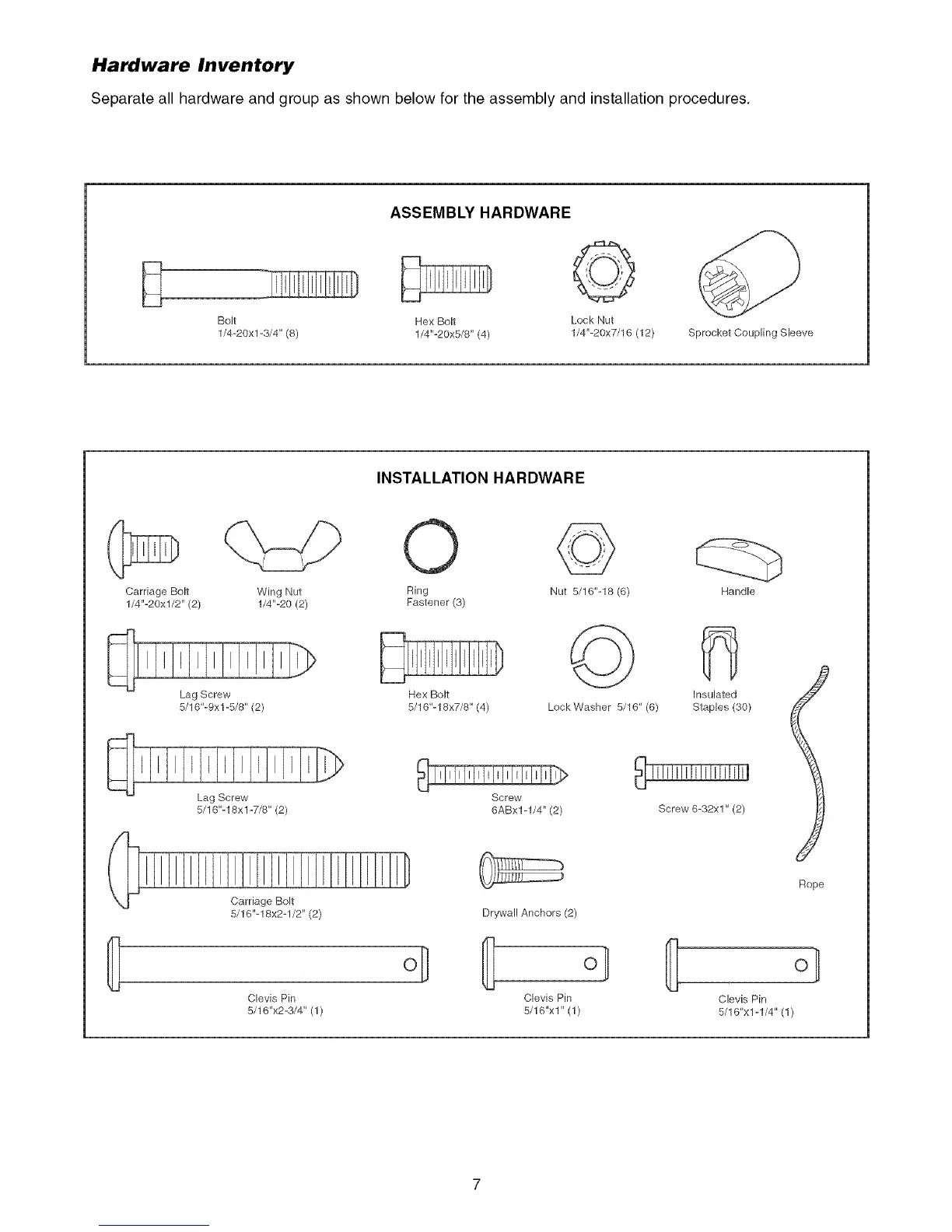

Hardware Inventory

Separate all hardware and group as shown below for the assembly and installation procedures.

Bolt

1/4-20xl-3/4" (8)

ASSEMBLY HARDWARE

Hex Bolt Lock Nut

1/4"-20x5/8" (4) 1/4"-20x7/16 (12)

Sprocket Coupling Sleeve

INSTALLATION HARDWARE

Carriage Bolt

1/4"-20xl/2" (2)

Wing Nut

1/4"-20 (2)

Lag Screw

5/16'Lgx1-5/8" (2)

Lag Screw

5/16"-18xl -7/8" (2)

Carriage Bolt

5/16"-18x2-1/2" (2)

Clevis Pin

5/16"x2-3/4"(1)

Ring

Fastener (3)

Hex Bolt

5/16"-18x7/8" (4)

Screw

6ABxl-1/4 '_(2)

Nut 5/16"-18 (6)

Handle

LockWasher 5/16" (6)

Drywall Anchors (2)

o; o;

Clevis Pin

5/16"x1" (1)

Insulated

Staples (30)

Screw 6-32xl" (2)

Rope

Clevis Pin

5/16"x1-1/4" (1)
