Craftsman 149.236321 - Parts List

REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
3O
31
32
33
34
35
36
37
38
39
40
41
42

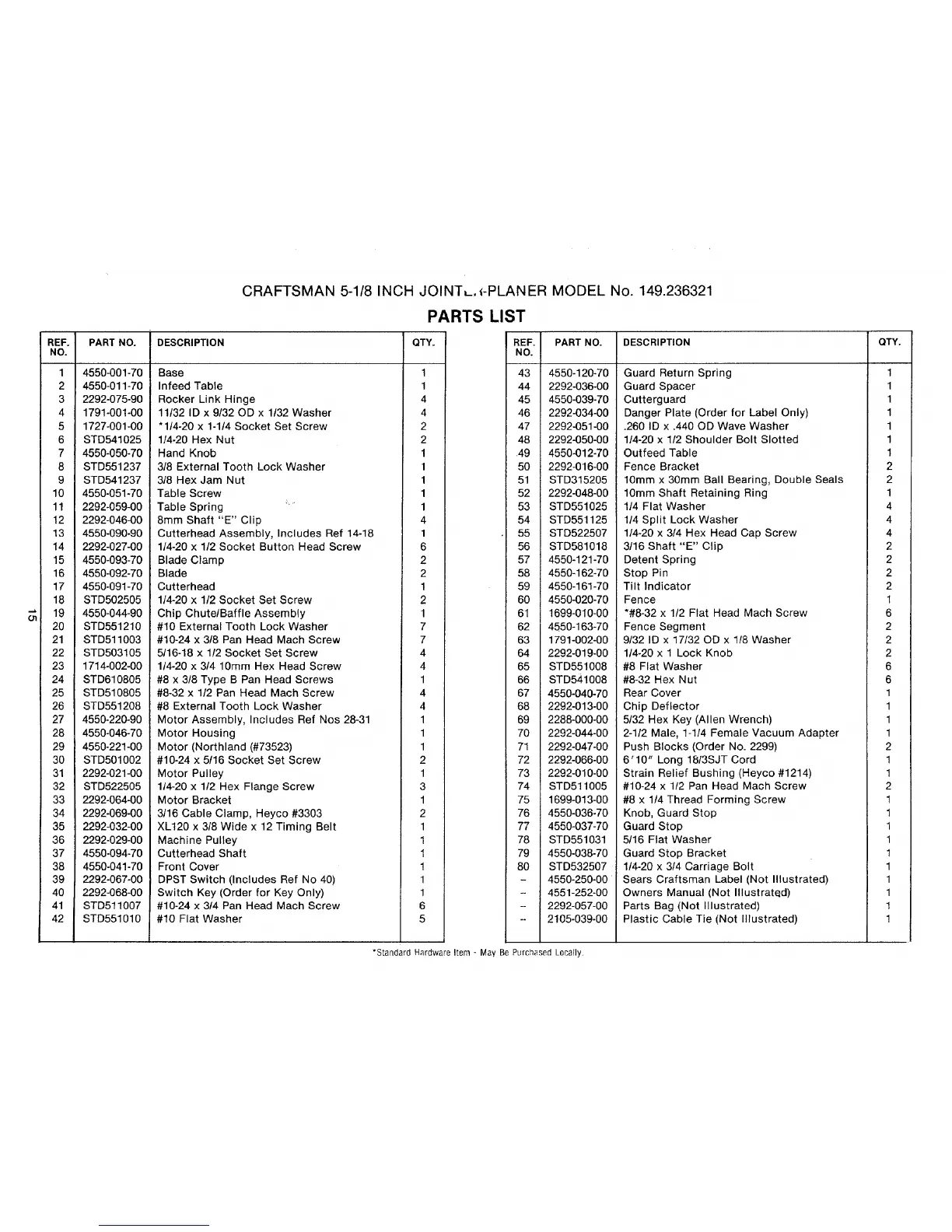

CRAFTSMAN 5-1/8 INCH JOINTL._-PLANER MODEL No. 149.236321
PARTS LIST
PART NO. DESCRIPTION QTY.
4550-001-70
4550-011-70
2292-075-90
1791-001-00
1727-001-00
STD541025
4550-050-70
STD551237
STD541237
4550-051-70
2292-059-00
2292-046-00
4550-090-90
2292-027-00
4550-093-70
4550-092-70
4550-091-70
STD502505
4550-044-90
STD551210
STD511003
STD503105
1714-002-00
STD610805
STD510805
STD551208
4550-220-90
4550-046-70
4550-221-00
STD501002
229_021-00
STD522505
2292-064-00
2292-069-00
2292-032-00
2292-029-00
4550-094-70
4550-041-70
2292-067-00
2292-068-00
STD511007
STD551010
Base
Infeed Table
Rocker Link Hinge
11/32 ID x 9/32 OD x 1/32 Washer
"1/4-20 x 1-1t4 Socket Set Screw
114-20 Hex Nut
Hand Knob
3/8 External Tooth Lock Washer
3t8 Hex Jam Nut
Table Screw
Table Spring ....
8mm Shaft "E" Clip
Cutterhead Assembly, Includes Ref 14-18
1/4-20 x 1t2 Socket Button Head Screw
Blade Clamp
Blade
Cutterhead
1/4-20 x 112 Socket Set Screw
Chip Chute/Baffle Assembly
#10 External Tooth Lock Washer
#10-24 x 3/8 Pan Head Mach Screw
5/16-18 x 1/2 Socket Set Screw
1/4-20 x 3/4 10mm Hex Head Screw
#8 x 3/8 Type B Pan Head Screws
#8-32 x 112 Pan Head Mach Screw
#8 External Tooth Lock Washer
Motor Assembly, Includes Ref Nos 28-31
Motor Housing
Motor (Northland (#73523)
#10-24 x 5/16 Socket Set Screw
Motor Pulley
114-20 x 1/2 Hex Flange Screw
Motor Bracket
3/16 Cable Clamp, Heyco #3303
XL120 x 3f8 Wide x 12 Timing Belt
Machine Pulley
Cutterhead Shaft
Front Cover
DPST Switch (Includes Ref No 40)
Switch Key (Order for Key Only)
#10-24 x 3/4 Pan Head Mach Screw
#10 Flat Washer
1
1
4
4
2
2
1
1
1
1
1
4
1
6
2
2
1
2
1
7
7
4
4
1
4
4
1
1
1
2
1
3
1
2
1
1
1
1
1
1
6
5
REF.
NO.
43 4550-120-70
44 2292-036-00
45 4550-039-70
46 2292-034-00
47 2292-051-00
48 2292-050-00
49 4550-012-70
50 2292-016-00
51 STD315205
52 2292-048-00
53 STD551025
54 STD551125
55 STD522507
56 STD581018
57 4550-121-70
58 4550-162-70
59 4550-161-70
60 4550-020-70
61 1699-010-00
62 4550-163-70
63 1791-002-00
64 2292-019-00
65 STD551008
66 STD541008
67 4550-04_70
68 2292-013-00
69 2288-000-00
70 2292-044-00
71 2292-047-00
72 2292-066-00
73 2292-010-00
74 STD511005
75 1699-013-00
76 4550-036-70
77 4550-037-70
78 STD551031
79 4550-038-70
80 STD532507
-- 4550-250-00
-- 4551-252-00
-- 2292-057-00
-- 2105-039-00
PART NO. DESCRIPTION QTY.
Guard Return Spring 1
Guard Spacer 1
Cutterguard 1
Danger Plate (Order for Label Only) 1
.260 ID x .440 OD Wave Washer 1
1/4-20 x 1/2 Shoulder Bolt Slotted 1
Outfeed Table 1
Fence Bracket 2
10mm x 30ram Ball Bearing, Double Seals 2
10mm Shaft Retaining Ring 1
1/4 Flat Washer 4
1/4 Split Lock Washer 4
114-20 x 314 Hex Head Cap Screw 4
3/16 Shaft "E" Clip 2
Detent Spring 2
Stop Pin 2
Tilt Indicator 2
Fence 1
*#8-32 x 1/2 Flat Head Mach Screw 6
Fence Segment 2
9/32 ID x 17132 OD x 1t8 Washer 2
1/4-20 x 1 Lock Knob 2
#8 Flat Washer 6
#8-32 Hex Nut 6
Rear Cover 1
Chip Deflector 1
5132 Hex Key (Allen Wrench) 1
2-112 Male, 1-114 Female Vacuum Adapter 1
Push Blocks (Order No. 2299) 2
6'10" Long 1813SJT Cord 1
Strain Relief Bushing (Heyco #1214) 1
#10-24 x 1/2 Pan Head Mach Screw 2
#8 x 1t4 Thread Forming Screw 1
Knob, Guard Stop 1
Guard Stop 1
5116 Flat Washer 1
Guard Stop Bracket 1
1/4-20 x 3t4 Carriage Bolt 1
Sears Craftsman Label (Not Illustrated) 1
Owners Manual (Not Illustrated) 1
Parts Bag (Not Illustrated) 1
Plastic Cable Tie (Not Illustrated) t
"Standard Hardware Item - May Be Purchased Lecally.
