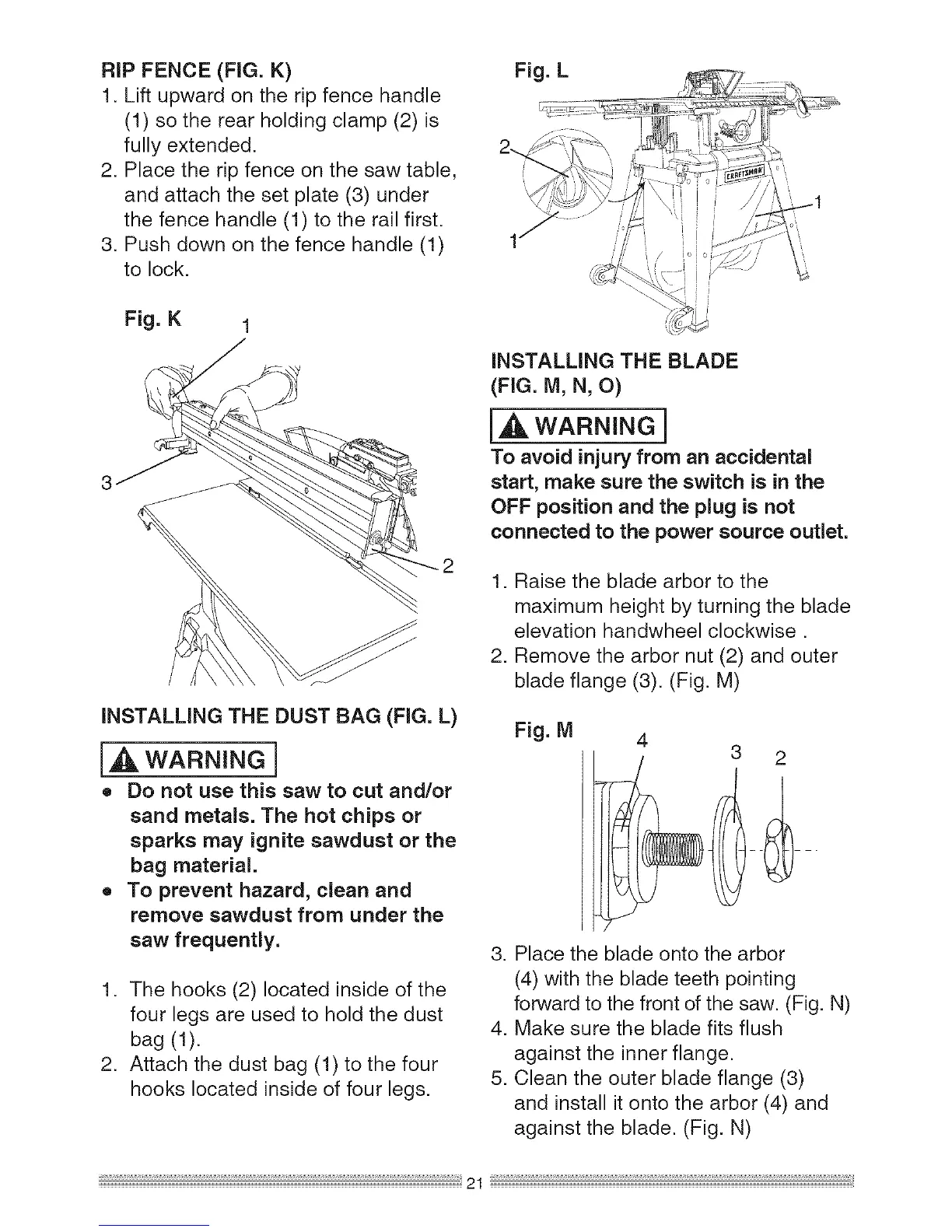

RiP FENCE (FIG. K)
1. Lift upward on the rip fence handle
(1) so the rear holding clamp (2) is
fully extended.
2. Place the rip fence on the saw table,
and attach the set plate (3) under
the fence handle (1) to the rail first.
3. Push down on the fence handle (1)
to lock.
Fig. K 1
iNSTALLiNG THE DUST BAG (FIG. L)
[_ WARNING]
o Do not use this saw to cut and/or
sand metals. The hot chips or
sparks may ignite sawdust or the
bag material.
o To prevent hazard, clean and
remove sawdust from under the
saw frequently.
1. The hooks (2) located inside of the
four legs are used to hold the dust
bag (1).
2. Attach the dust bag (1) to the four
hooks located inside of four legs.
Fig. L
INSTALLING THE BLADE
(FIG. M, N, O)
i_ WARNING]
To avoid injury from an accidental
start, make sure the switch is in the
OFF position and the plug is not
connected to the power source outlet.
1. Raise the blade arbor to the
maximum height by turning the blade
elevation handwheel clockwise.
2. Remove the arbor nut (2) and outer
blade flange (3). (Fig. M)
Fig. M
4
3 2
3. Place the blade onto the arbor
(4) with the blade teeth pointing
forward to the front of the saw. (Fig. N)
4. Make sure the blade fits flush
against the inner flange.
5. Clean the outer blade flange (3)
and install it onto the arbor (4) and
against the blade. (Fig. N)
