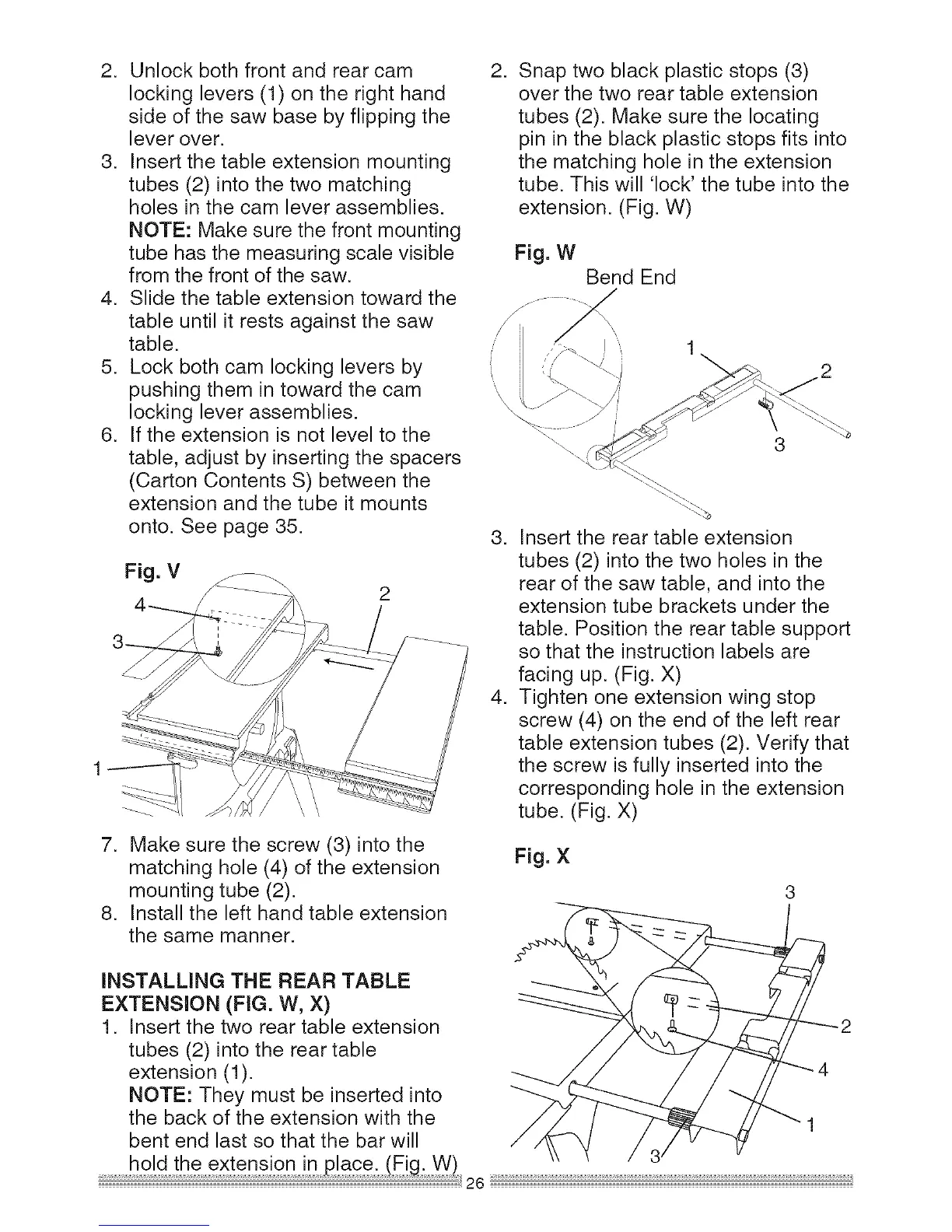

2. Unlockbothfrontandrearcam
lockinglevers(1)ontherighthand
sideofthesawbasebyflippingthe
leverover.
3. Insertthetableextensionmounting
tubes(2)intothetwomatching
holesinthecamleverassemblies.
NOTE:Makesurethefrontmounting
tubehasthemeasuringscalevisible
fromthefrontofthesaw.
4. Slidethetableextensiontowardthe
tableuntilitrestsagainstthesaw
table.
5. Lockbothcamlockingleversby
pushingthemintowardthecam
lockingleverassemblies.
6. Iftheextensionisnotleveltothe
table,adjustbyinsertingthespacers
(CartonContentsS)betweenthe
extensionandthetubeitmounts
onto.Seepage35.
Fig. V
7. Make sure the screw (3) into the
matching hole (4) of the extension
mounting tube (2).
8. Install the left hand table extension
the same manner.
.
Snap two black plastic stops (3)
over the two rear table extension
tubes (2). Make sure the locating
pin in the black plastic stops fits into
the matching hole in the extension
tube. This will 'lock' the tube into the
extension. (Fig. W)
Fig. W
Bend End
3
3. Insert the rear table extension
tubes (2) into the two holes in the
rear of the saw table, and into the
extension tube brackets under the
table. Position the rear table support
so that the instruction labels are
facing up. (Fig. X)
4. Tighten one extension wing stop
screw (4) on the end of the left rear
table extension tubes (2). Verify that
the screw is fully inserted into the
corresponding hole in the extension
tube. (Fig. X)
Fig. X
INSTALLING THE REAR TABLE
EXTENSION (FIG. W, X)
1. Insert the two rear table extension
tubes (2) into the rear table
extension (1).
NOTE: They must be inserted into
the back of the extension with the
bent end last so that the bar will
