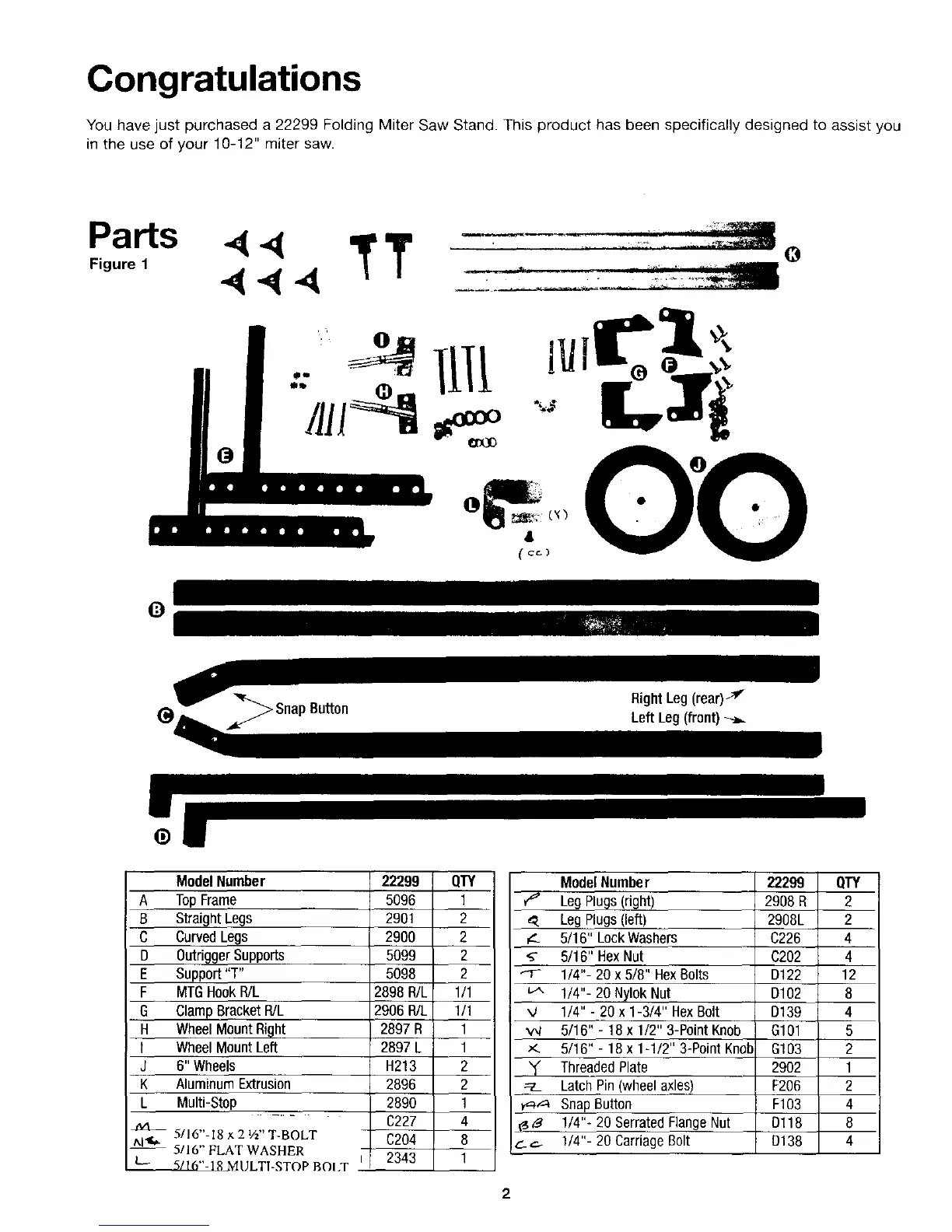

Craftsman 22299 - Parts Identification; Component List and Diagram

Congratulations
You have just purchased a 22299 Folding Miter Saw Stand. This product has been specifically designed to assist you
in the use of your 10-12" miter saw.
Parts 44 TT
Figure, 4 "_ 4
0
0
_Snap Button RightLeg(rear)_
(_ _ LeftLeg(front)
ModelNumber
A TopFrame
B StraightLegs
C CurvedLegs
D OutriggerSupports
E Support"T"
F MTGHookR/L
G ClampBracketR/L
H WheelMountRight
I WheelMountLeft
J 6" Wheels
K AluminumExtrusion
L Multi-Stop
5/16"-18 x 2 W' T-BOLT
t,.l"_
-- 5/16" FLAT WASHER
L- 5/16"-18 MULTI-STOP BOI.T
22299 ffl'Y
5096 1
2901 2
2900 2
5099 2
5098 2
2898R/L 1/1
2906R/L 1/1
2897 R 1
2897 L 1
H213 2
2896 2
2890 1
C227 4
C204 8
2343 1
ModelNumber 22299 QTY
¢_" Leg Plugs(right) 2908R 2
_. Leg Plugs(left) 2908L 2
_. 5/16" LockWashers C226 4
_" 5/16" HexNut C202 4
---r- 1/4"- 20 x 5/8" HexBolts D122 12
u... 1/4"- 20 NylokNut D102 8
"4 1/4" - 20 x 1-3/4" HexBolt D139 4
",N 5/16" - 18 x 1/2" 3-PointKnob G101 5
5/16" - 18 x 1-1/2" 3-PointKnob G103 2
"!" ThreadedPlate 2902 1
__ LatchPin(wheelaxles) F206 2
#=_,.-4SnapButton F103 4
X_' 1/4"- 20 SerratedFlangeNut Dl18 8
¢_.-_ 1/4"- 20 CarriageBolt D138 4
