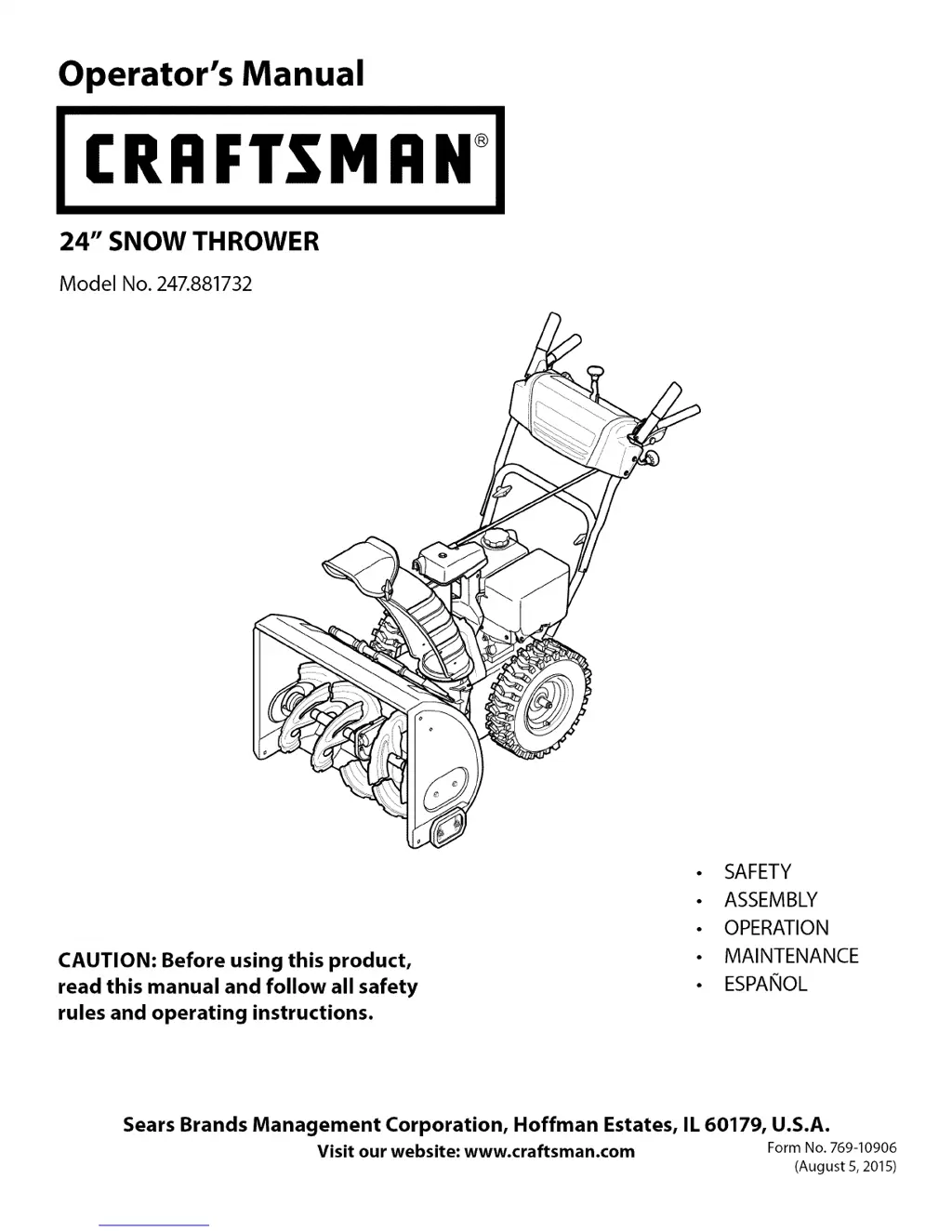

Operator's Manual

CRFIFISMFIN

24" SNOW THROWER

Model No. 247.881732

CAUTION: Before using this product,

read this manual and follow all safety

rules and operating instructions.

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• ESPANOL

Sears Brands Management Corporation, Hoffman Estates, IL 60179, U.S.A.

Visit our website: www.craftsman.com Form No. 769-10906

(August 5, 2015)

Questions and Answers:

S
Sarah HigginsJul 26, 2025
How to fix a Craftsman Snow Blower when the engine fails to start?
- A
  Amy HoweJul 27, 2025
  If your Craftsman Snow Blower engine won't start, try these steps: 1. Ensure the choke control is in the CHOKE position. 2. Check that the spark plug wire is connected to the spark plug. 3. Inspect the spark plug; clean, adjust the gap, or replace it if necessary. 4. Make sure the fuel tank has clean, fresh gasoline. 5. Prime the engine as instructed in the Operation section. 6. Verify the safety key is fully inserted into the switch. 7. If equipped with an electric start, confirm the extension cord is properly connected to both the snow blower and a grounded AC outlet.
T
timothy22Jul 30, 2025
Why is my Craftsman 247.881732 engine running erratically?
- J
  jamessmithJul 30, 2025
  If your Craftsman Snow Blower engine is running erratically, exhibiting inconsistent RPMs (hunting or surging), consider the following: 1. Ensure the engine isn't running on CHOKE by moving the choke control to the RUN position. 2. Replace stale fuel with clean, fresh gasoline. 3. Drain the fuel tank to remove any water or dirt in the fuel system by running the engine until it stops, then refill with fresh fuel. 4. If the carburetor is out of adjustment or the engine is over-governed, contact your Sears Parts & Repair Center.
J
Jack McgrathAug 4, 2025
What to do if my Craftsman Snow Blower fails to discharge snow?
- C
  Connor CooperAug 4, 2025
  If your Craftsman Snow Blower isn't discharging snow, here's what to do: 1. Immediately stop the engine and disconnect the spark plug wire. Then, clean the chute assembly and the inside of the auger housing using a clean-out tool. 2. If there's a foreign object lodged in the auger, stop the engine immediately, disconnect the spark plug wire, and remove the object with a clean-out tool. 3. Check and adjust the auger control cable, referring to the Assembly section. 4. If the auger belt is loose or damaged, replace it, referring to the Service and Maintenance section. 5. If the shear pins are sheared, replace them with new ones, referring to the Operation section.
J
James NashAug 8, 2025
What to do if my Craftsman 247.881732 Snow Blower won't move?
- R
  Robert KellyAug 8, 2025
  If your Craftsman Snow Blower isn't moving forward on its own, check these items: 1. The drive cable may need adjustment. Refer to the Service and Maintenance section for instructions. 2. If the drive belt is loose or damaged, have it replaced by contacting your Sears Parts & Repair Center. 3. A worn friction wheel may be the cause. Replace it by referring to the Service and Maintenance section.
N
nortizAug 13, 2025
Why is my Craftsman 247.881732 losing power?
- M
  melissalawrenceAug 13, 2025
  If your Craftsman Snow Blower is losing power, check the following: 1. Make sure the spark plug wire is securely connected and tightened. 2. Ensure the gas cap vent hole isn't blocked by ice or snow, and that the vent hole is clear.
S
Samantha SalazarAug 16, 2025
How to stop excessive vibration in my Craftsman 247.881732 Snow Blower?
- S
  stevenhudsonAug 16, 2025
  If your Craftsman Snow Blower is vibrating excessively: 1. Stop the engine immediately, disconnect the spark plug wire, and tighten all bolts and nuts. If the vibration continues, have the unit serviced by a Sears Parts & Repair Center.
L
Lauren BradleyAug 21, 2025
Why does my Craftsman Snow Blower plow snow instead of blowing it?
- S
  Shannon LeeAug 21, 2025
  If your Craftsman Snow Blower is plowing snow instead of blowing it, consider these points: 1. Increase ground speed and ensure the engine is running at FULL throttle, especially in wet or slushy snow that is 1-3” deep. 2. Replace any sheared shear pins, referring to the Operation section.

Craftsman 247.881732 Specifications

General

Model	247.881732
Product Type	Snow Blower
Engine Displacement	208cc
Clearing Width	24 inches
Intake Height	21 inches
Drive Type	Self-Propelled
Number of Forward Speeds	6
Number of Reverse Speeds	2
Auger Material	Steel
Chassis	Steel
Chute Control	Remote
Throw Distance	40 feet
Wheel Size	13 inches

Summary

Warranty and Product Information

Warranty Coverage and Product Specifications

Covers warranty details and essential product specifications like oil and fuel.

Safety Instructions

Operator Safety, Preparation, and Fuel Handling

Guidelines for safe operation, preparation, and handling gasoline.

Safety Instructions (Continuation)

Safe Operation, Chute Clearing, and Storage Safety

Instructions for safe operation, clearing blockages, and maintenance safety.

Safety Instructions (Continuation)

Engine Modification and Emissions Warnings

Warning against engine modification and information on emissions control.

Safety Instructions (Continuation)

Safety Symbol Guide

Depicts and describes safety symbols found on the product and manual.

Assembly

Unpacking and Handle Assembly

Steps to unpack the snow thrower and assemble the handles.

Chute Assembly and Controls

Steps to assemble the chute and its control mechanisms.

Assembly (Continuation)

Setup: Clean-Out Tool, Tires, and Skid Shoes

Instructions for clean-out tool, tire pressure, and skid shoe adjustment.

Operation

Adjusting Controls: Skid Shoes, Chute, Auger

How to adjust skid shoes, chute angle, and auger control cable.

Operation (Continuation)

Key Operational Controls

Explains the shift lever, safety key, and choke control functions.

Operation (Continuation)

Engine Controls and Features

Details throttle, primer, recoil, electric starter, fuel, and oil systems.

Auger, Chute, and Drive Operation

Operation of auger, chute assembly, auger control, and skid shoes.

Operation (Continuation)

Chute Clearing and Pre-Start Procedures

Using the clean-out tool, checking oil, and refueling the unit.

Starting the Engine

Instructions for starting the engine using recoil or electric starter.

Operation (Continuation)

Engaging Components and Shear Pin Replacement

How to start/stop engine, engage drive/auger, and replace shear pins.

Service and Maintenance

Maintenance Schedule and Engine Oil

Schedule for maintenance tasks and procedures for engine oil.

Service and Maintenance (Continuation)

Spark Plug Maintenance

How to inspect, clean, gap, and replace the spark plug.

Service and Maintenance (Continuation)

Lubrication and Shave Plate/Skid Shoe Service

Guide to lubrication and servicing shave plate and skid shoes.

Service and Maintenance (Continuation)

Control System Adjustments

How to adjust shift cable, drive control, and chute for optimal performance.

Service and Maintenance (Continuation)

Auger Belt Replacement

Step-by-step guide for removing and replacing the auger belt.

Service and Maintenance (Continuation)

Drive Belt and Friction Wheel Service

Information on drive belt replacement and friction wheel removal.

Service and Maintenance (Continuation)

Friction Wheel Service Details

Steps for disassembling and replacing the friction wheel's rubber ring.

Off-Season Storage

Engine and Snow Thrower Storage Preparation

Steps to prepare the engine and snow thrower for long-term storage.

Troubleshooting

Engine Performance Troubleshooting

Common problems with engine starting, running, vibration, and power loss.

Troubleshooting (Continuation)

Unit Operation Troubleshooting

Troubleshooting for unit failing to discharge snow, rotate chute, or plowing snow.

Emission Control Warranty

Warranty Rights, Coverage, and Parts

Outlines owner responsibilities, coverage, and lists covered emission parts.

Emission Control Warranty (Continuation)

Covered Emission Control Parts

Lists specific emission-related parts covered under the warranty.

Repair Protection Agreement

Repair Plan Benefits and Service

Explains the benefits and services included in the Repair Protection Agreement.
