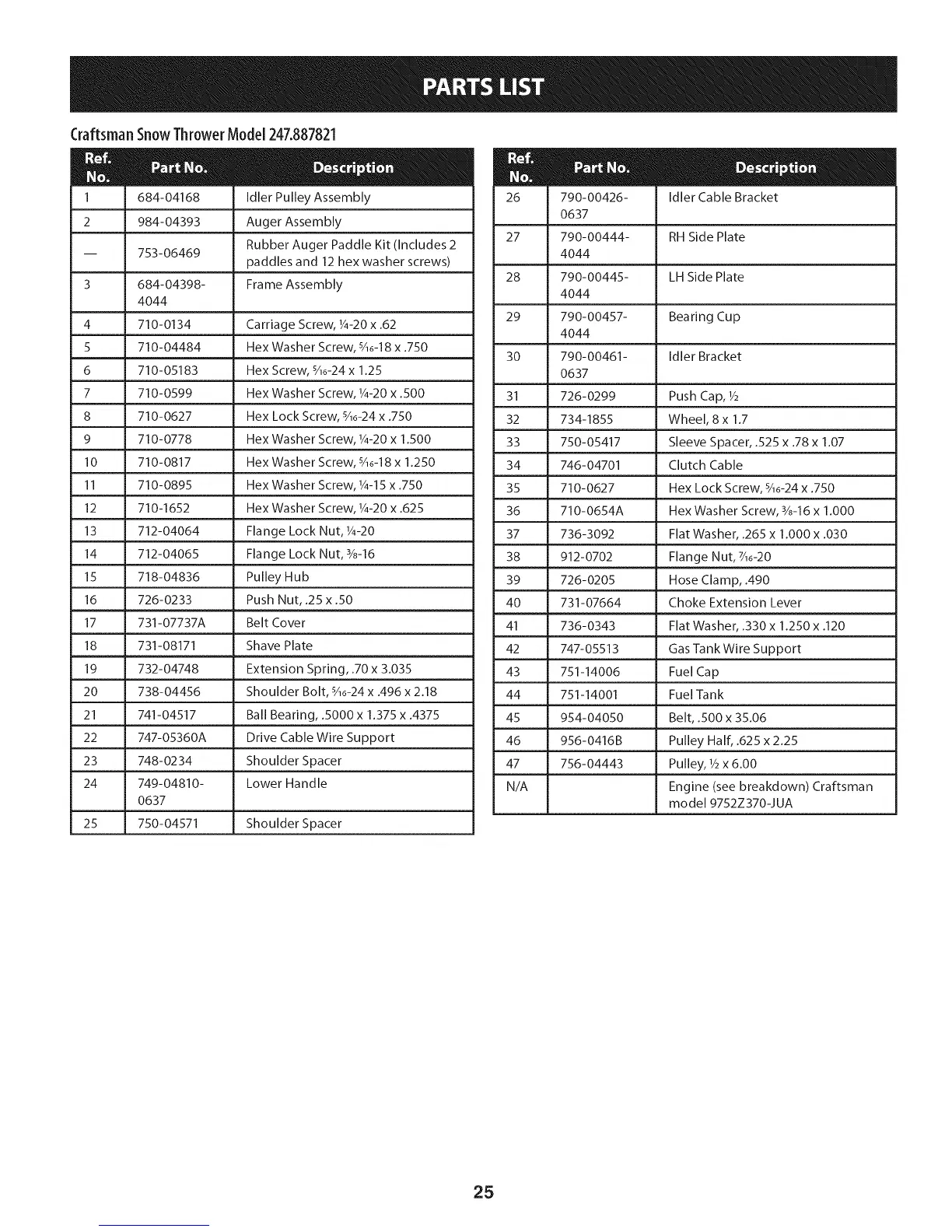

CraftsmanSnowThrowerModel247.887821
2
3
684-04168
984-04393
753-06469
684-04398-
4044
Idler Pulley Assembly
Auger Assembly
Rubber Auger Paddle Kit (Includes 2
paddles and 12 hex washer screws)
Frame Assembly
J
4 710-0134 Carriage Screw, 1/4-20x .62
5 710-04484 Hex Washer Screw, s/_o-18x .750
6 710-05183 Hex Screw, s/_o-24x 1.25
7 710-0599 Hex Washer Screw, 1/4-20x .500
8 710-0627 Hex Lock Screw, s/_o-24x .750
9 710-0778 Hex Washer Screw, 1/4-20x 1.500
10 710-0817 Hex Washer Screw, s/_o-18x 1.250
11 710-0895 Hex Washer Screw, 1/4-15x .750
12 710-1652 Hex Washer Screw, 1/4-20x .625
13 712-04064 Flange Lock Nut, 1/4-20
14 712-04065 Flange Lock Nut, 3/8-16
15 718-04836 Pulley Hub
16 726-0233 Push Nut, .25 x .50
17 731-07737A Belt Cover
18 731-08171 Shave Plate
19 732-04748
20 738-04456
21 741-04517
22 747-05360A
23 748-0234
24 749-04810-
0637
25 750-04571
Extension Spring, .70 x 3.035
Shoulder Bolt, s/_o-24x .496 x 2.18
Ball Bearing, .5000 x 1.375 x .4375
Drive Cable Wire Support
Shoulder Spacer
Lower Handle
Shoulder Spacer
790-00426- Idler Cable Bracket
0637
27 790-00444- RH Side Plate
4044
28 790-00445- LH Side Plate
4044
29 790-00457- Bearing Cup
4044
30 790-00461- Idler Bracket
0637
31 726-0299 Push Cap, 1/2
32 734-1855 Wheel, 8 x 1.7
33 750-05417 Sleeve Spacer, .525 x .78 x 1.07
34 746-04701 Clutch Cable
35 710-0627 Hex Lock Screw, sAo-24x .750
36 710-0654A Hex Washer Screw, 3/8-16x 1.000
37 736-3092 Flat Washer, .265 x 1.000 x .030
38 912-0702 Flange Nut, 7_o-20
39 726-0205 Hose Clamp, .490
40 731-07664 Choke Extension Lever
41 736-0343 Flat Washer, .330 x 1.250 x .120
42 747-05513 Gas Tank Wire Support
43 751-14006 Fuel Cap
44 751-14001 Fuel Tank
45 954-04050 Belt, .500 x 35.06
46 956-0416B Pulley Half, .625 x 2.25
47 756-04443 Pulley, 1/2x 6.00
N/A Engine (see breakdown) Craftsman
model 9752Z370-JUA
25
