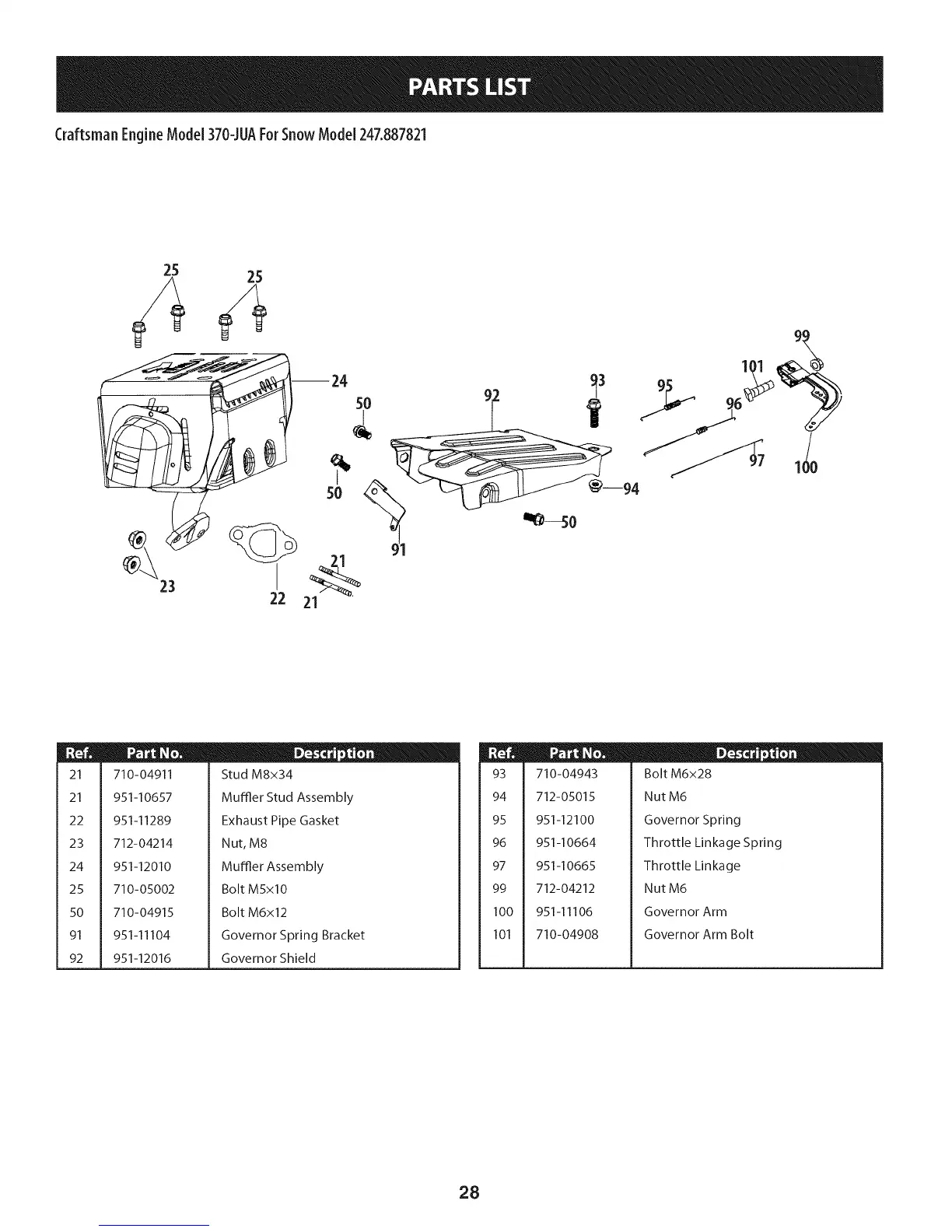

Craftsman 247.887821 - Page 28

CraftsmanEngineModel370JUA ForSnowModel247.887821
--24 _3
50
22 21
21
21
22
23
24
25
5O
91
92
710-04911
951-10657
951-11289
712-04214
951-12010
710-05002
710-04915
951-11104
951-12016
D _ ® o
Stud M8x34
Muffler Stud Assembly
Exhaust Pipe Gasket
Nut, M8
Muffler Assembly
Bolt M5x10
Bolt M6x12
Governor Spring Bracket
Governor Shield
m
93
94
95
96
97
99
100
101
710-04943
712-05015
951-12100
951-10664
951-10665
712-04212
951-11106
710-04908
D - ® 0
Bolt M6x28
NutM6
Governor Spring
Throttle Linkage Spring
Throttle Linkage
NutM6
Governor Arm
Governor Arm Bolt
28
