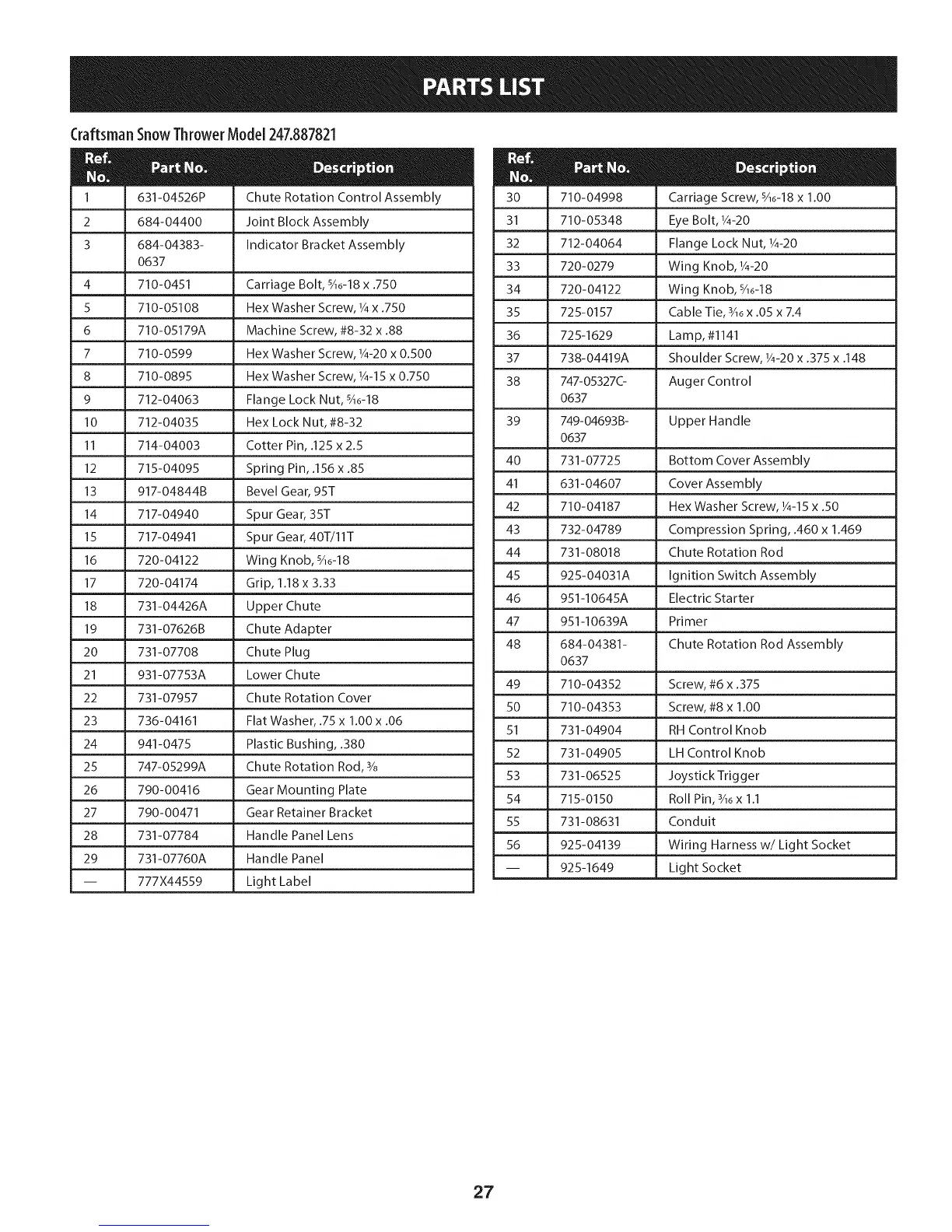

CraftsmanSnowThrowerModel247.887821
631-04526P Chute Rotation Control Assembly
2 684-04400 Joint Block Assembly
3 684-04383- Indicator Bracket Assembly
0637
4 _ 710-0451 _ Carriage Bolt, SA0-18x.750
5 710-05108 Hex Washer Screw, 1/4x .750
6 710-05179A Machine Screw, #8-32 x .88
7 710-0599 Hex Washer Screw, 1/4-20x 0.500
8 710-0895 Hex Washer Screw, 1/4-15x 0.750
9 712-04063 Flange Lock Nut, sA0-18
10 712-04035 Hex Lock Nut, #8-32
11 714-04003 Cotter Pin, .125 x 2.5
12 715-04095 Spring Pin, .156 x .85
13 917-04844B Bevel Gear, 95T
14 717-04940 Spur Gear, 35T
15 717-04941 Spur Gear, 40T/11T
16 720-04122 Wing Knob, sA0-18
17 720-04174 Grip, 1.18 x 3.33
L
18 731-04426A Upper Chute
19 , 731-07626B i Chute Adapter
20 731-07708 Chute Plug
21 931-07753A Lower Chute
22 731-07957 Chute Rotation Cover
23 736-04161 Flat Washer, .75 x 1.00 x .06
24 941-0475 Plastic Bushing, .380
25 747-05299A Chute Rotation Rod, 3/8
26 790-00416 Gear Mounting Plate
27 790-00471 Gear Retainer Bracket
28 731-07784 Handle Panel Lens
29 731-07760A Handle Panel
-- 777X44559 Light Label
710-04998 Carriage Screw, sA6-18x 1.00
31 710-05348 Eye Bolt, 1/4-20
32 712-04064 Flange Lock Nut, 1/4-20
33 720-0279 Wing Knob, 1/4-20
34 720-04122 Wing Knob, sA6-18
35 725-0157 Cable Tie, 3A6x .05 x 7.4
36 725-1629 Lamp, #1141
37 738-04419A Shoulder Screw, 1/4-20x .375 x .148
38 747-05327C- Auger Control
0637
39 749-04693B- Upper Handle
0637
40 731-07725 Bottom Cover Assembly
41 631-04607 Cover Assembly
42 710-04187 Hex Washer Screw, Y4-15x .50
43 732-04789 Compression Spring, .460 x 1.469
44 731-08018 Chute Rotation Rod
45 925-04031A Ignition Switch Assembly
46 951-10645A Electric Starter
47 951-10639A Primer
48 684-04381- Chute Rotation Rod Assembly
0637
49 710-04352 Screw, #6 x .375
50 710-04353 Screw, #8 x 1.00
51 731-04904 RH Control Knob
52 731-04905 LH Control Knob
53 731-06525 Joystick Trigger
54 715-0150 Roll Pin, 3A6x 1.1
55 731-08631 Conduit
56 925-04139 Wiring Harness w/Light Socket
-- 925-1649 Light Socket
27
