Craftsman 320.17543 - To Install Motor in Fixed Base; To Install Motor in Plunge Base

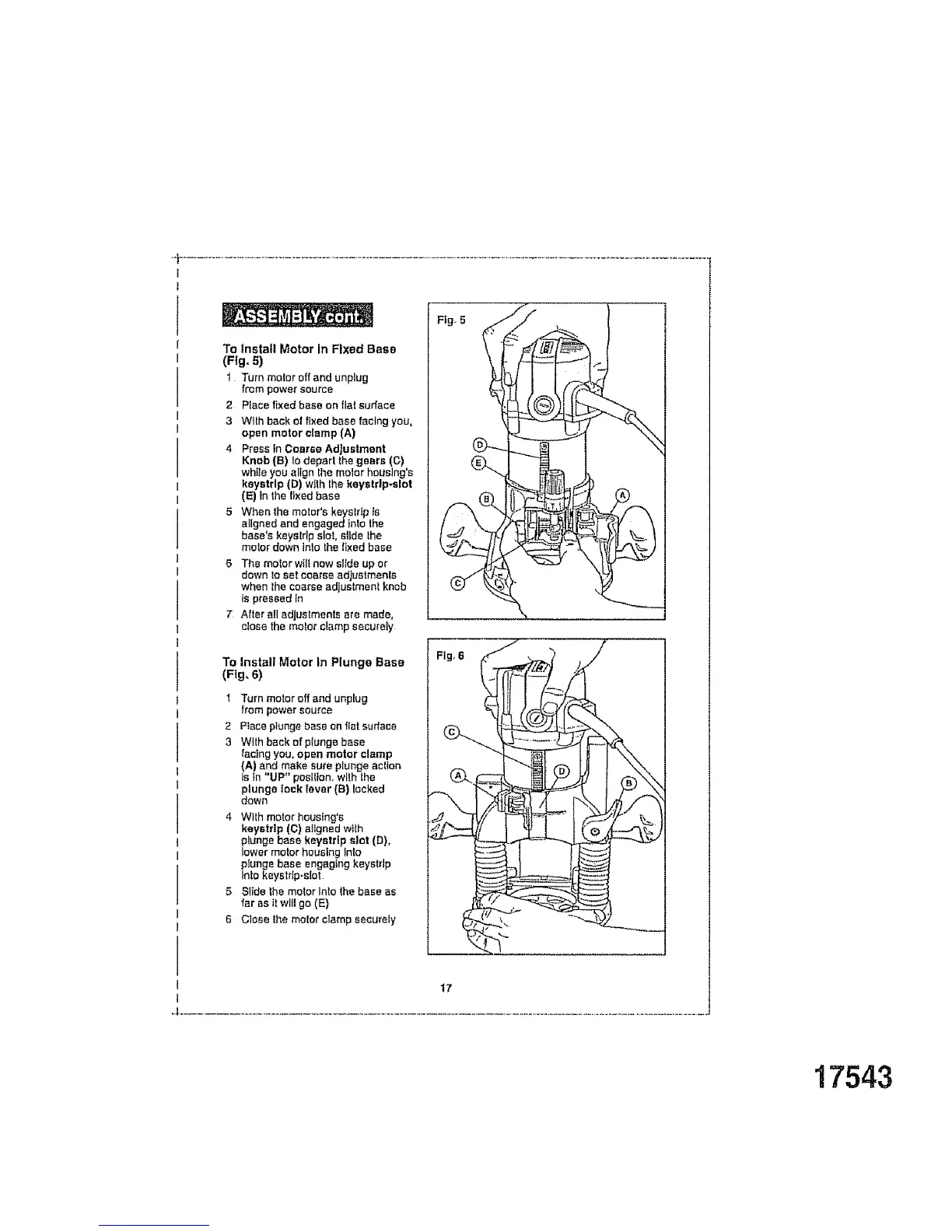

To install Motor In Fixed Base
(Fig, 5)
1 Turn moloroffsnd Unplug
from power source
2 Placefixed base on flatsurface
3 With back of fixed base facing you,
open motor clamp (A)
4 Pressin Coarse Adjustment
Knob(B) Iodepart thegears (C)
while you align the motor houslng's
keystrlp (D) with the keystdp-elot
(E) In the fixed base
5 When the motor's keystrtp is
aligned and engagedlnto the
base's keyslrlp slot, stlde the
motor down into the fixedbase
6 The motor witt now slide up or
down to set coarse adjuslmenls
when lhecoarse adjustmentknob
Is pressedin
7 Afferall adjustments are made,
close the motor clamp seeu_'ely
To Install Motor In Plunge Base
(Fig. 6)
1 Turn motor off and unplug
from powersource
2 Placeplunge baseon fist surface
3 With back of plunge base
facing you, open motor clamp
(A) and make sure plungeaction
is in "UP" positIon,withthe
plunge lock lever (B) locked
down
4 With motor houstng's
keystrlp (C) aligned w_th
plungebase keystrlp slot (D),
lower motor housing Into
plungebase engagingkeystdp
Int0 keyslrlp°slot
5 Slide 1he motor Into Ihe base as
far as it will go (E)
6 Close the motor clamp securely
FIg, 6
17543
