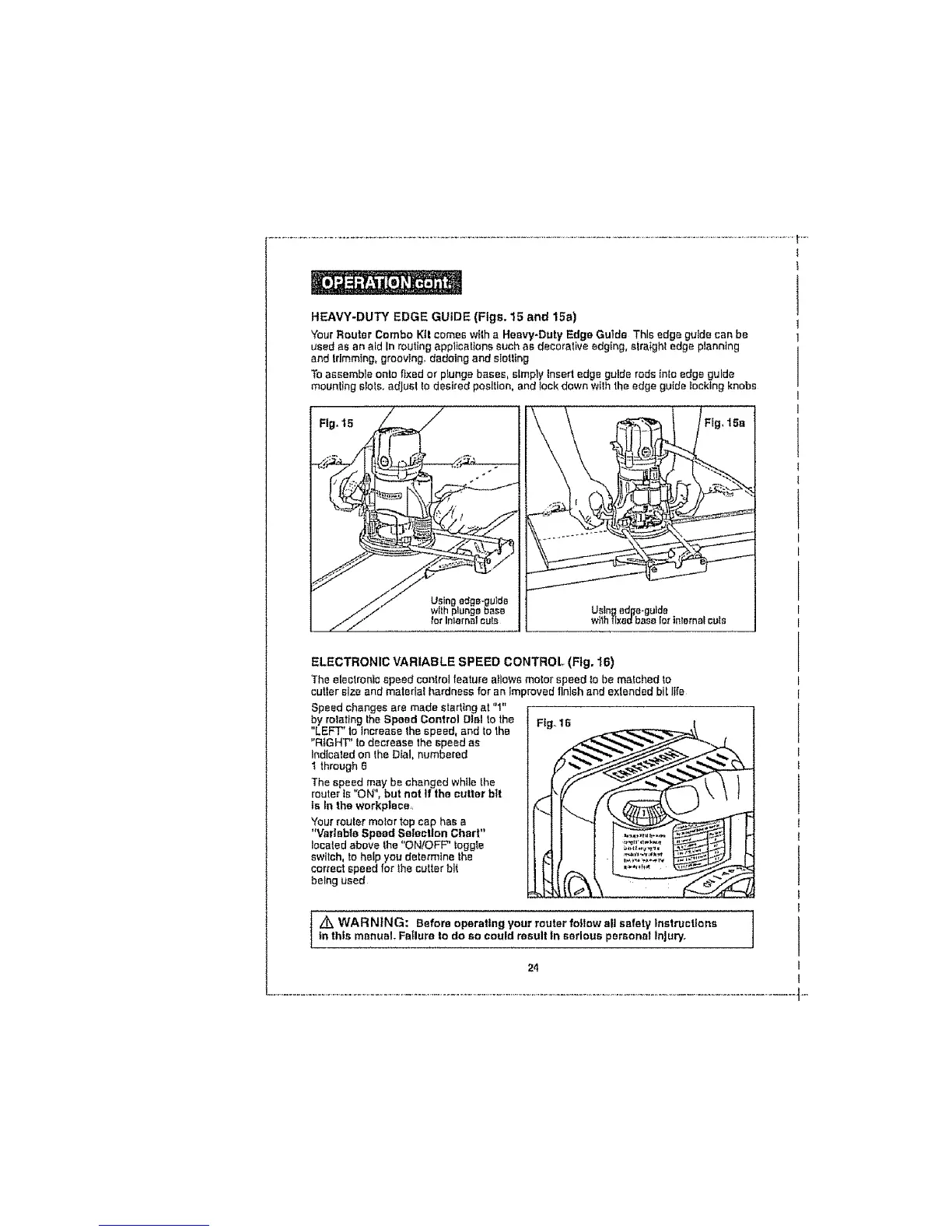

HEAVY-DUTY EDGE GUIDE (Figs. 15 and 15a)
Your Router Combo Kit comes w}tha Heavy-Duty Edge Guide This edge guide can be
used as an aid In routing appticat_ons such as decorative edging, straight edgeplanning
and trimm_ng,grooving, dadoing and stetting
Toassemble ontofixed or plunge bases, simply Insert edge guide rodsintoedge guide
mounting slots, adjust to desired position, and lock down with the edge guide locking knobs
Fig, t5 _=i
Usin
wl_h Usingedge.gulde_
withflxedbes_fartn_ornalculs
ELECTRONIC VARIABLE SPEED CONTROL (Fig. I6)
The electronic speed control feature allows motor speed to be malehed to
cuttersize and matedat hardness for an _mprovedfinishand exlendedbit life
Speed changes are made starting at "1"
by relating theSpeed Control Dial to the Fig. 16
"LEFT" to increase the speed, and to the
"R}GHT" to decrease the speed as
Indicated on the Dial, r_umbered
1 through6
The speed may be changed while the
router is"ON", but not tf the cutter bit
ts In the workplace,,
Yourrouter meier topcap has a
"Variable Speed Setection Chart"
located above the "ON!OFF' toggEe
switch, to help you determine the
correctspeed for the cutter bit
being used
Z_ WARNING: Before operating your router fogow all safety Instructions
in this manuel. Fa|lure to do so could result in serious personal injury.
24
