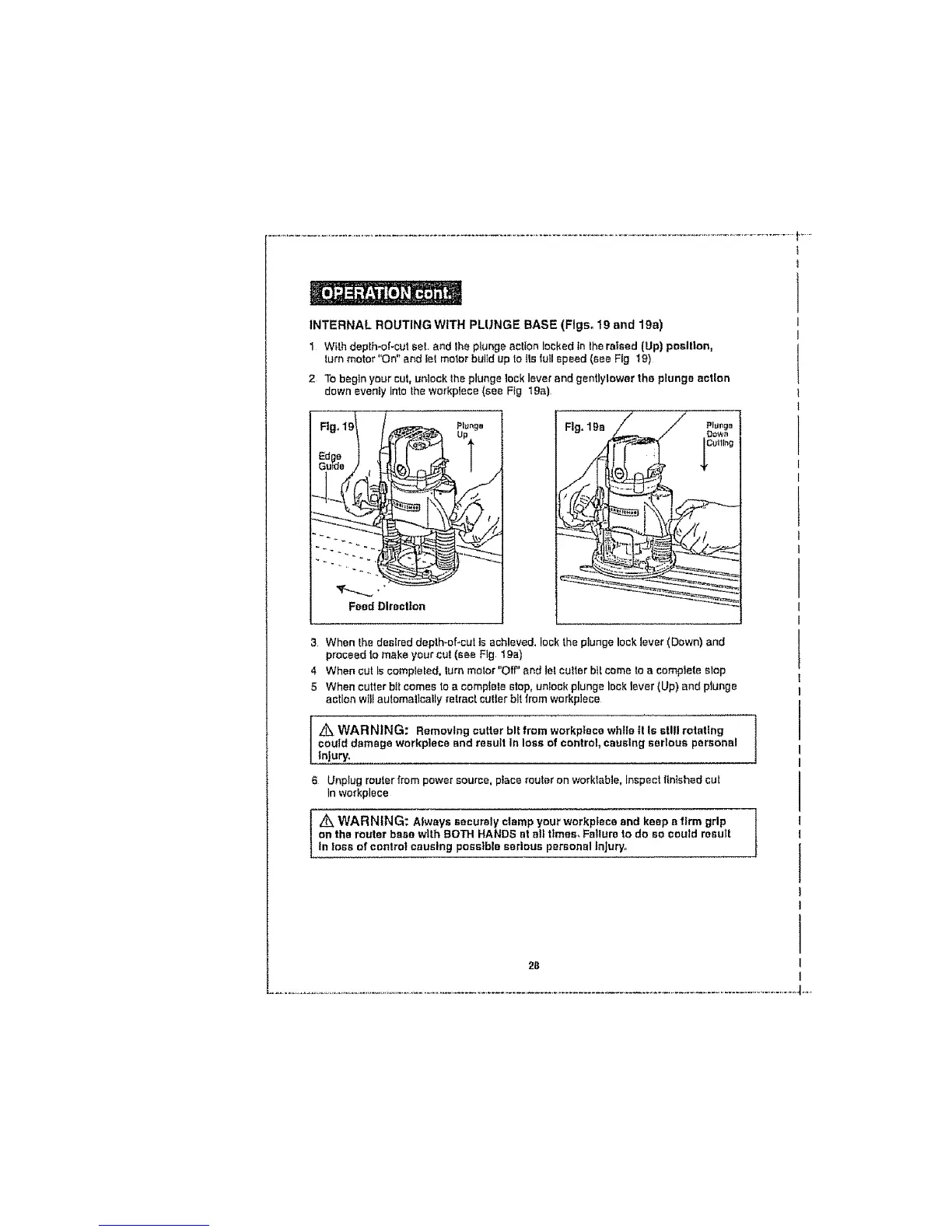

INTERNAL ROUTING WITH PLUNGE BASE (Flgso 19 and 19a)
1 Wilhdeplh-of_culset, andlhoplungeactionlockedtntheralsed{Up)poslgon,
lure motor "On" and lel motor build up to itslull speed (see Fig 19)
2 To begin yourcul, unlock the plunge lock lover and gsntlylowar the plunge action
down evenlyInto the workpiece(see Fig 19a)
i
Feed Direction
3 When the desired depth-of-cut is achieved, lock the plunge lock lover (Down) and
proceedto make your cut(see Fig ! 9a)
4 When cut Iscompleted, turn motor"Off" and lel cotter bit come toa complete slop
5 When culler bit comes to a comptele stop, unlock plunge looklever (Up) and ptunge
action willautomatically reiract cutter bit from workplace
, Z_ WARNING: Removing cutter bit from workplace while It is stl!l rotetlng
could damage workplace end result In loss of control, causing serious personal
injury.
6 Unplug router :frompower source, piece router on workiable, Inspect flnlehed cut
in workplace
i Z_ WARNING: Always securely clamp your workplace and keep a firm grip
on the router base with BOTH HANDS st eli times, Failure to do so could result
tn toss of control causing possible serious personal injury°
