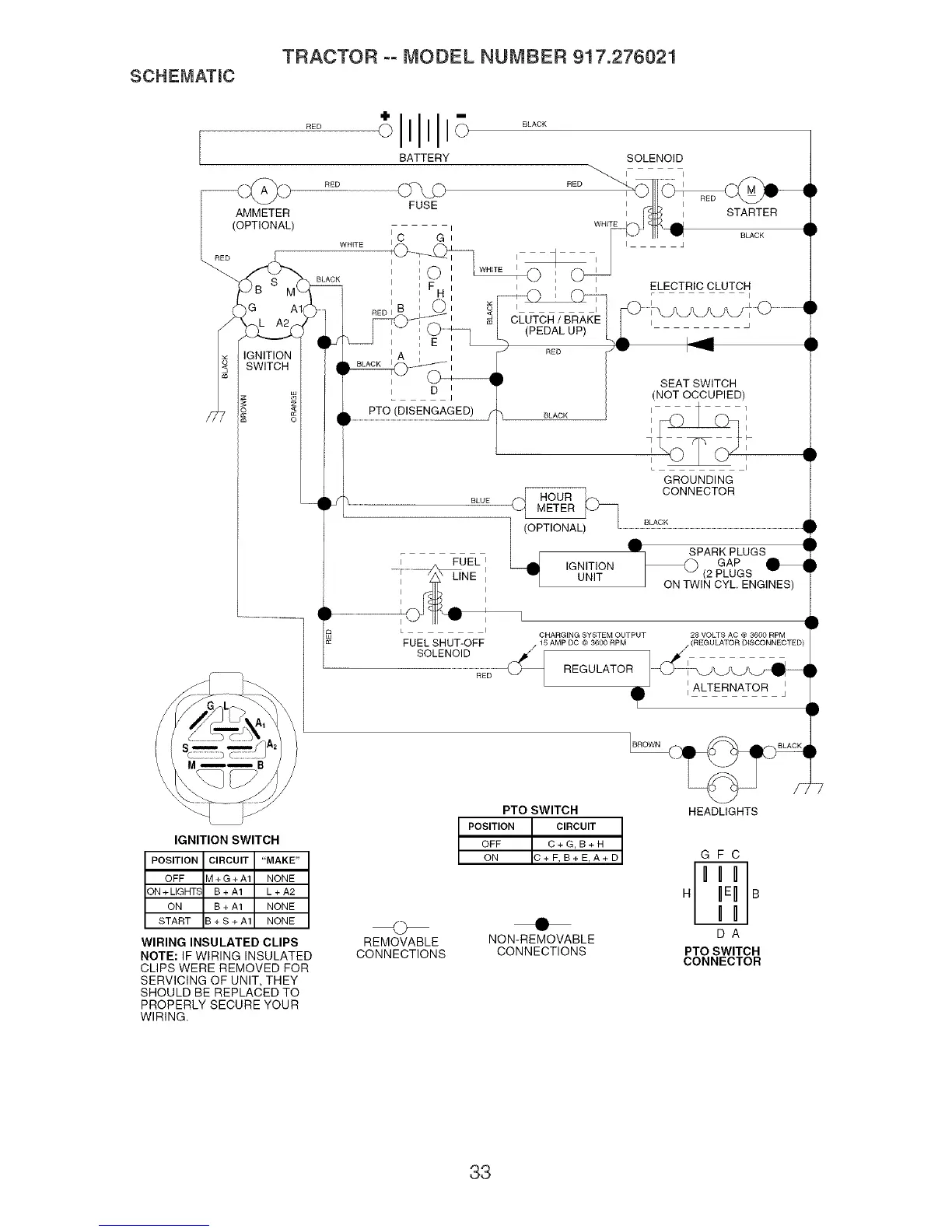

Craftsman 917.276021 - Electrical Schematic; Ignition and PTO Switch Circuits

SCHEMATmC
TRACTOR ooMODEL NUMBER 917.276021
RED
AMMETER
(OPTIONAL)
RED
BATTERY
RED _
FUSE
WHITE
BLACK
RED
SOLENOID
I
STARTER
BLACK
BLACK
)G
I
I
B
F H
©
D
PTO (DISENGAGED)
I
ELECTRIC CLUTCH
I
I I
CLUTCH / BRAKE I •
(PEDAL UP)
RED
BLUE
FUEL i
--]1 ............._LINE II
I I
I
CHARGING SYSTEM OUTPUT
FUEL SHUT-OFF _5AMPoc @36O0RPM
SOLENOID _€/'I
................................. REGULATOR
SEAT SWITCH
(NOT OCCUPIED)
I I
I
• I
GROUNDING
(_ CONNECTOR
(OPTIONAL) ..........................8LACK....................................................................................................................................................
• SPARK PLUGS
IGNITION _ GAP
--[ UNIT _" (2 PLUGS --
J ON TWIN CYL ENGINES)
28 VOLTS AC @ 3600 RPM
/ (REGULATOR DISCONNECTED
ALTERNATOR j
IGNITION SWITCH
POSITION CIRCUIT "MAKE"
OFF M + G + A1 NONE
ON+LIGHTS B+A1 L+A2
ON B + A1 NONE
START B + S + A1 NONE
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
PTO SWITCH
POSITION CIRCUIT
OFF C+G,B+H
ON C+F,B+E,A+D
REMOVABLE NON-REMOVABLE
CONNECTIONS CONNECTIONS
HEADLIGHTS
GFC
DA
PTO SWITCH
CONNECTOR
33
