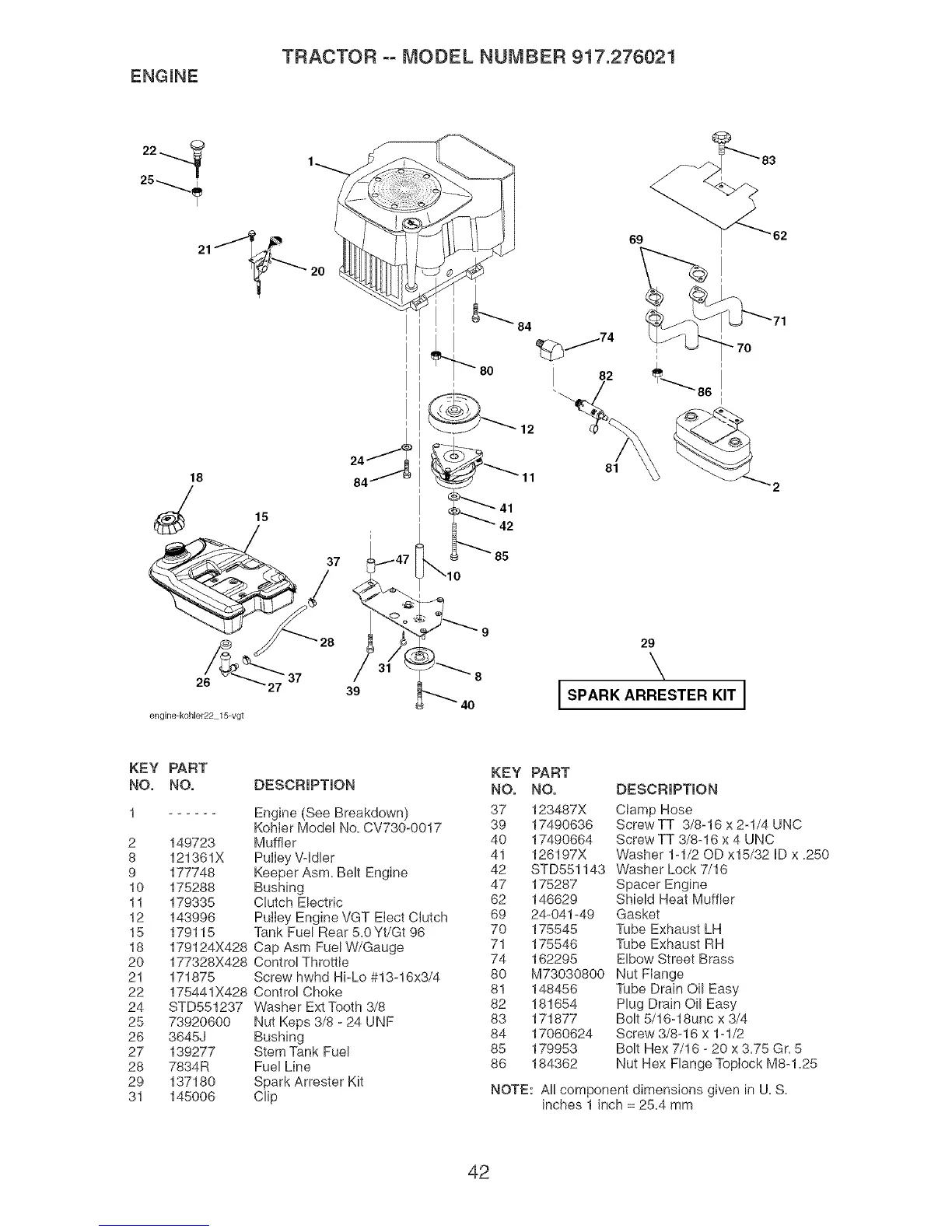

ENGINE
TRACTOR oo MODEL NUMBER 917.276021
22._
25_
21_ _
15
37
26 27
engine-kohle122 15-vgt
24/_
84 _
39
84
69 _ 62
12
81
29
\
I SPARK ARRESTER KIT I
KEY PART
NO. NO.
2 149723
8 121361X
9 177748
10 175288
11 179335
12 143996
15 179115
18 179124X428
20 177328X428
21 171875
22 175441X428
24 STD551237
25 73920600
26 3645J
27 139277
28 7834R
29 137180
31 145006
DESCRIPTION
Engine (See Breakdown)
Kohter Model No, CV730-0017
Muffler
PulIey Vqdler
Keeper Asm, Belt Engine
Bushing
Clutch Electric
PuiIey Engine VGT EIect Clutch
Tank Fuel Rear 5.0Yt/Gt 96
Cap Asm Fuel W/Gauge
Control Throttle
Screw hwhd Hi-Lo #13-16x3/4
Control Choke
Washer Ext Tooth 3/8
Nut Keps 3/8 - 24 UNF
Bushing
Stem Tank Fuel
Fuel Line
Spark Attester Kit
Clip
KEY PART
NO. NO. DESCRIPTION
37 123487X Clamp Hose
39 17490636 ScrewTT 3/8-16 x 2-1/4 UNC
40 17490664 Screw TT 3/8-16 x 4 UNC
41 126197X Washer 1-1/20D x15/32 ID x ,250
42 STD551143 Washer Lock 7/16
47 175287 Spacer Engine
62 146629 Shield Heat Muffler
69 24-041-49 Gasket
70 175545 Tube Exhaust LH
71 175546 Tube Exhaust RH
74 162295 Elbow Street Brass
80 M73030800 Nut FIange
81 148456 Tube Drain Oil Easy
82 181654 Hug Drain Oil Easy
83 171877 Bolt 5/16-18unc x 3/4
84 17060624 Screw 3/8-16 x 1-1/2
85 179953 Bolt Hex 7/16 - 20 x 3,75 Gr,5
86 184362 Nut Hex Flange TopIock M8-1,25
NOTE: Al! component dimensions given in U. S.
inches 1 inch = 25.4 mm
42
