Craftsman 917.276021 - Lift Assembly Diagram and Parts

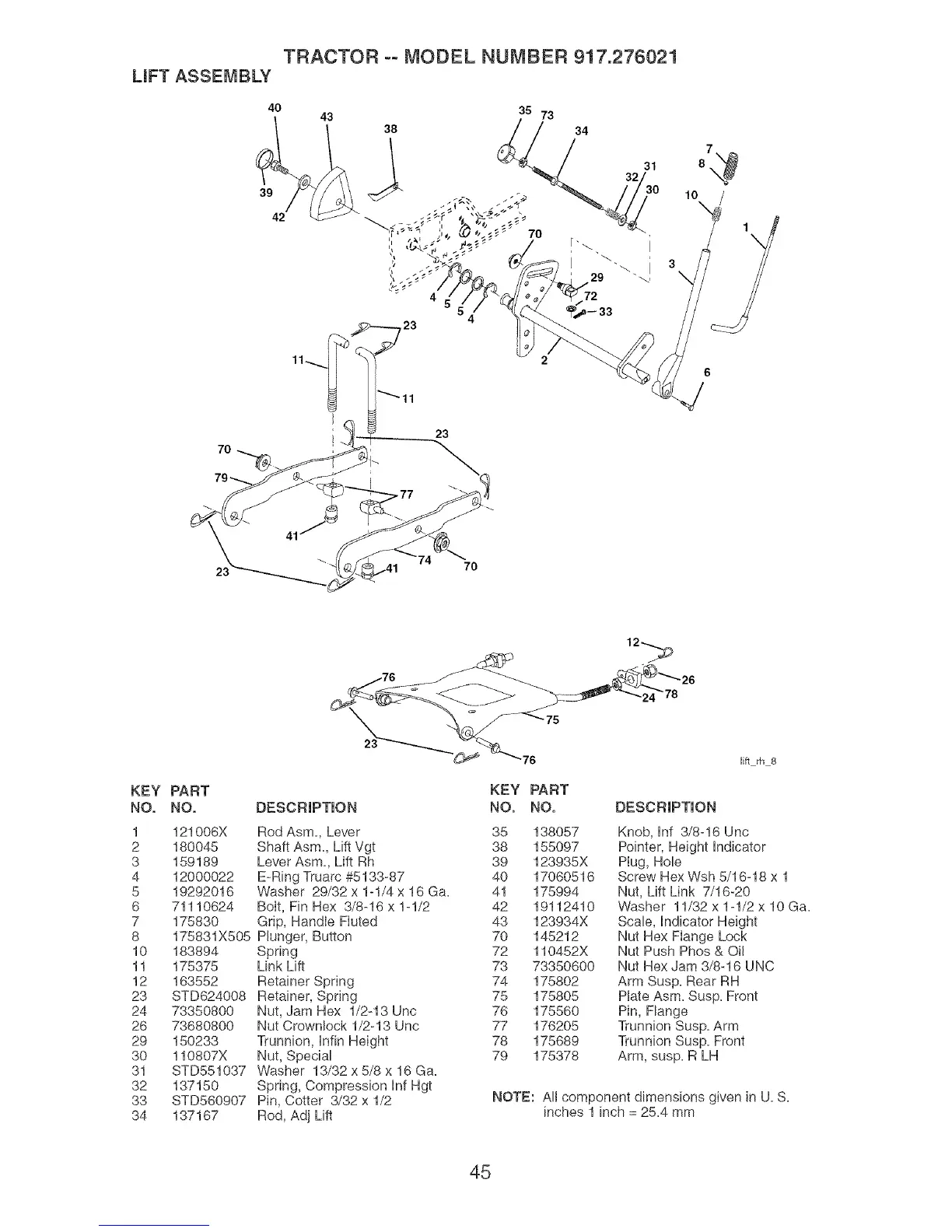

TRACTOR ooMODEL NUMBER 917.276021
UFT ASSEMBLY
35 73
34
31
32
23
23
7O
KEY PART
NO. NO.
1 121006X
2 180045
3 159189
4 12000022
5 19292016
6 71110624
7 175830
8 175831X505
10 183894
11 175375
12 163552
23 STD624008
24 73350800
26 73680800
29 150233
30 110807X
31 STD551037
32 137150
33 STD560907
34 137167
78
lift rh 8
DESCRIPTION
Rod Asm. Lever 35 138057
Shaft Asm. Lift Vgt 38 155097
Lever Asm. Lift Rh 39 123935X
E-Ring Truarc #5133-87 40 17060516
Washer 29/32 x 1-1/4 x 16 Ga. 41 175994
Bolt, Fin Hex 3/8-16 x 1-1/2 42 19112410
Grip, Handle Fluted 43 123934X
Plunger, Button 70 145212
Spring 72 110452X
Link Lift 73 73350600
Retainer Spring 74 175802
Retainer, Spring 75 175805
Nut, Jam Hex 1/2-13 Unc 76 175560
Nut Crownlock 1/2-13 Uric 77 176205
Trunnion, Infin Height 78 175689
Nut, Special 79 175378
Washer 13/32 x 5/8 x 16 Ga.
Spring, Compression Inf Hgt
Pin, Cotter 3/32 x 1/2
Rod, Adj Lift
KEY PART
NO. NO. DESCRIPTION
Knob, Inf 3/8-16 Unc
Pointer, Height Indicator
Plug, Hole
Screw Hex Wsh 5/16-18 x 1
Nut, Lift Link 7/16-20
Washer 11/32 x 1-1/2 x 10 Ga.
Scale, Indicator Height
Nut Hex Flange Lock
Nut Push Phos & O11
Nut Hex Jam 3/8-16 UNC
Arm Susp. Rear RH
Plate Asm. Susp. Front
Pin, Flange
Trunnion Susp. Arm
Trunnion Susp. Front
Arm, susp. R LH
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
45
