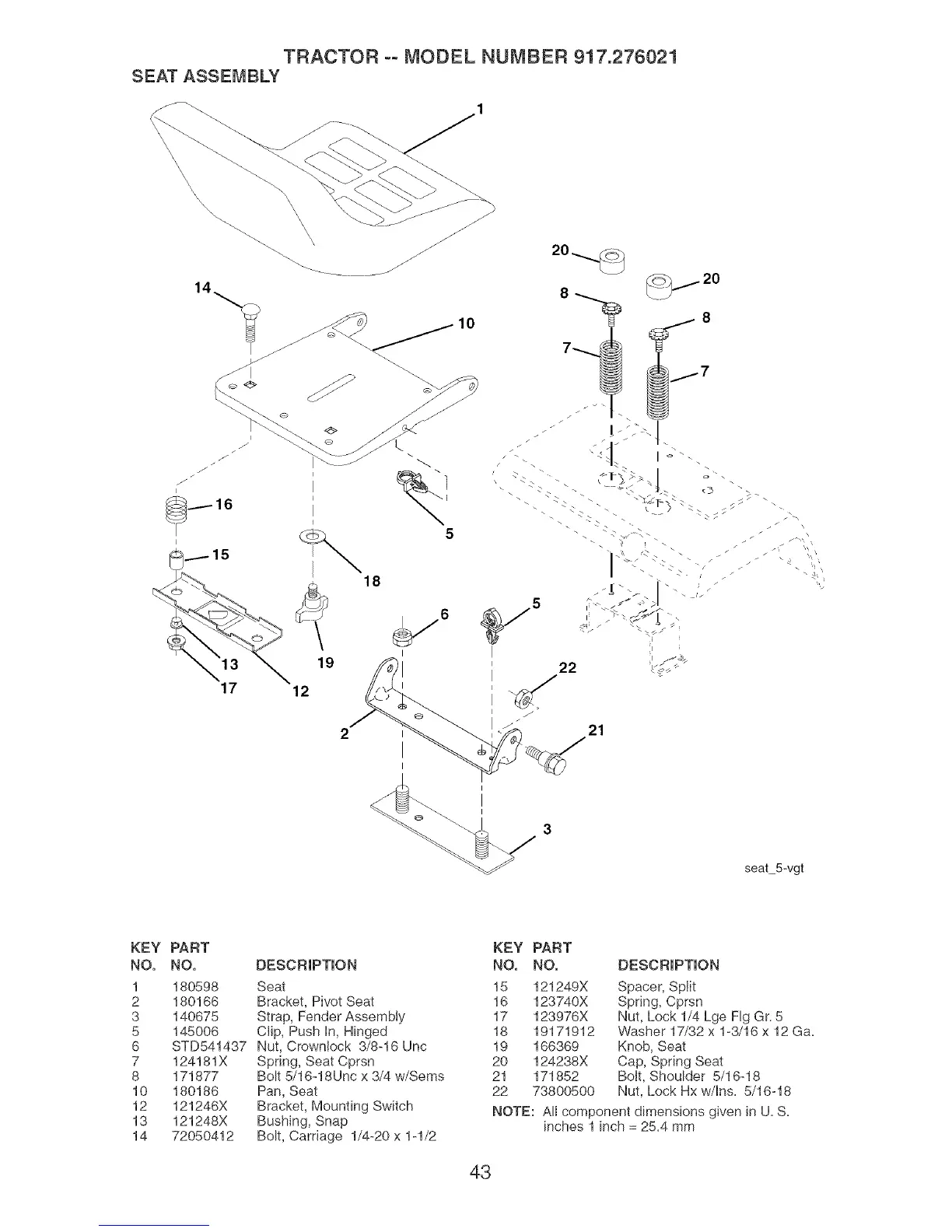

Craftsman 917.276021 - Seat Assembly

TRACTOR -- MODEL NUMBER 917.276021
SEAT ASSEMBLY
\
\
17
18
I
I
I
21
seat5-vgt
KEY
NO.
1
2
3
5
6
7
8
10
12
13
14
PART
NO.
180598
180166
140675
145006
STD541437
124181X
171877
180186
121246X
121248X
72050412
DESCRIPTION
Seat
Bracket, Pivot Seat
Strap, Fender Assembly
Clip, Push In, Hinged
Nut, Crownlock 3/8-16 Unc
Spring, Seat Cprsn
Bolt 5/16-18Unc x 3/4 w/Sems
Pan, Seat
Bracket, Mounting Switch
Bushing, Snap
Bolt, Carriage 1/4-20 x 1-1/2
KEY PART
NO, NO, DESCRIPTION
15 121249X Spacer, Split
16 123740X Spring, Cprsn
17 123976X Nut, Lock 1/4 Lge Fig Gr. 5
18 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
19 166369 Knob, Seat
20 124238X Cap, Spring Seat
21 171852 Bolt, Shoulder 5/16-18
22 73800500 Nut, Lock Nx w/Ins. 5/16-18
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
43
