Part 3 - Installing the Inner Reel

1. Pass the two line ends through the eyelets in the outer spool

(Fig. 32).

2. Place the spring inside the inner reel (Fig. 32).

3. Insert the inner reel into the outer spool (Fig. 32). Push the inner

reel and outer spool together.

4. While holding the inner reel and outer spool together, firmly pull

the two line ends to release them from the holding slots.

5. While holding the inner reel and outer spool together, screw the

bump knob on counterclockwise (Fig. 26). Tighten the bump

knob securely.

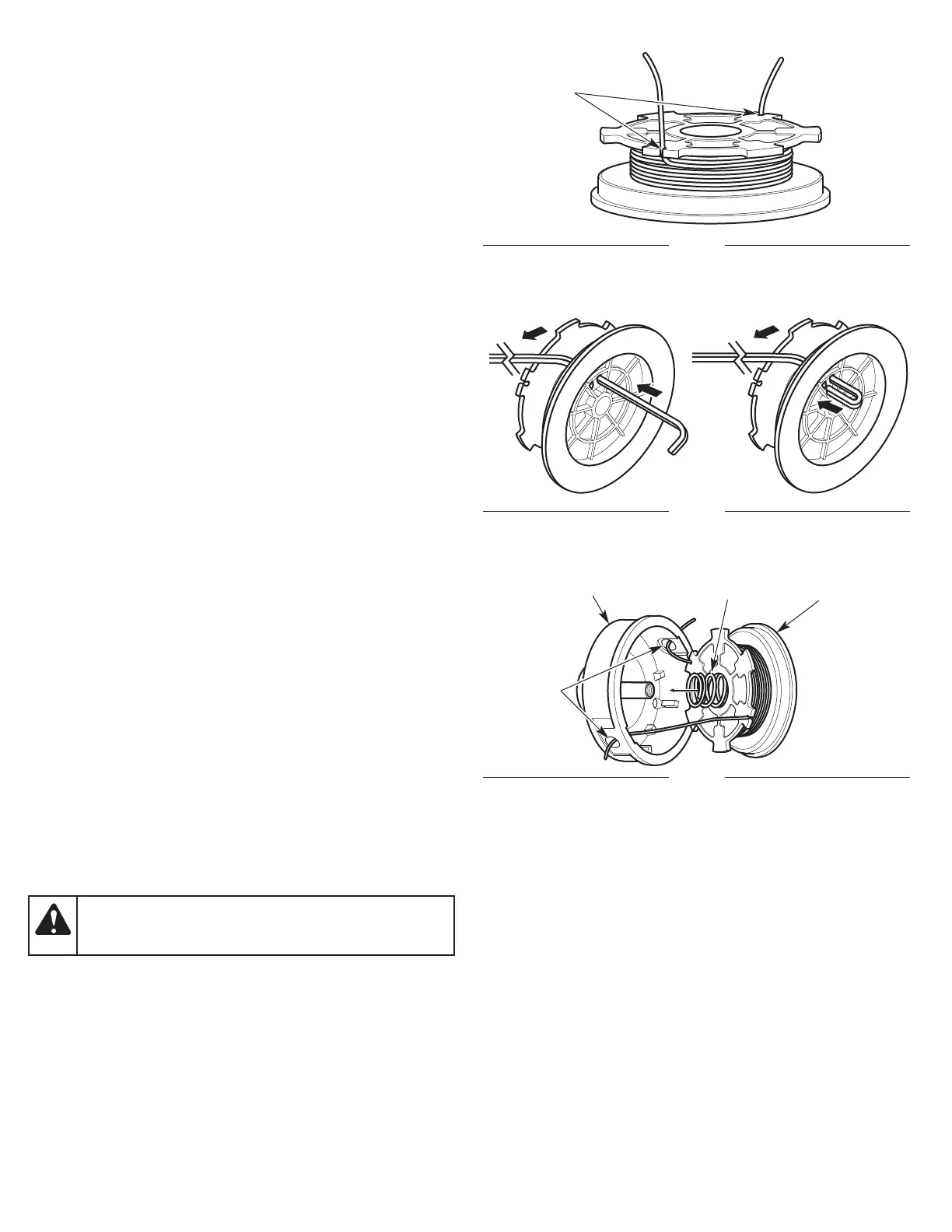

Fig. 31

Fig. 30

Holding

Slots

Fig. 32

Outer Spool

Inner Reel

Spring

Eyelets

MAINTAINING THE BLADE

The blade has a second cutting edge. If the blade becomes dull,

remove the blade, turn it upside down and reinstall the blade. If both

sides are dull, replace the blade. Refer to Removing the Blade and

Installing the Blade in the Assembly section.

WARNING:

Do not sharpen the blade. Sharpening the

blade can cause the blade tip to break off while in use.

This can result in severe personal injury.
