TOURNO 696.01-01 14 of 26 As of 2014
Original Operation Manual English

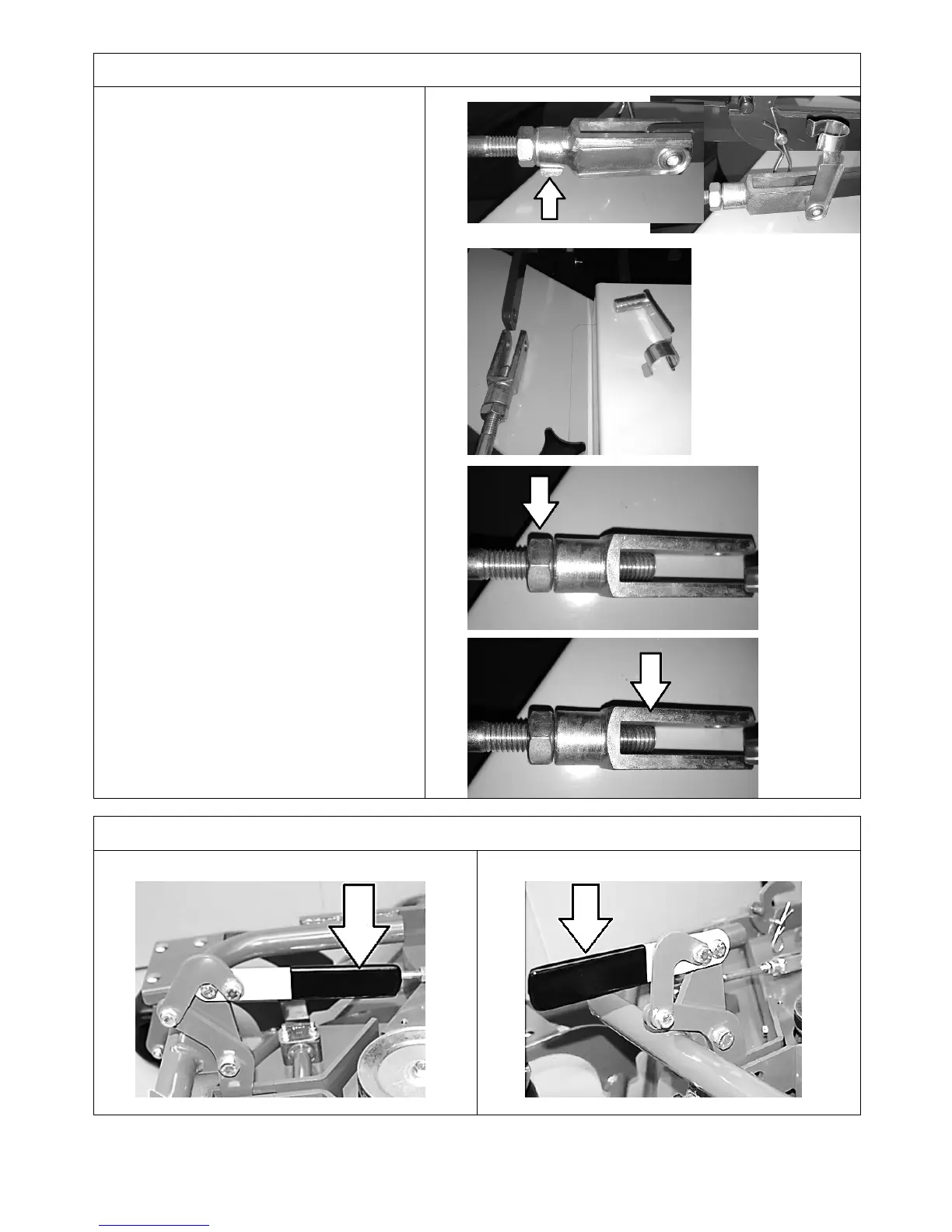

Adjustment rod for inclination setting
For optimum mulching, the mowing mechanism should be
inclined forward.
B1: Release the catch spring from the adjustment rod
and pull it slightly upward.
B2: Remove the catch spring from its fixture.
B3: For setting, loosen the adjustment rod bolt on one
side.
B4: Subsequently turn the adjustment rod until the
mowing mechanism inclines forward. At the back, the
mowing mechanism should be 2-10 mm higher than
at the front. Then tighten the bolt (A3) again.
B1: Engage the adjustment rod in the catch spring again.
B1
B2
B3
B4
Engaging the V-belt tensioning lever
V-belt tight V-belt slack
