TOURNO 696.01-01 24 of 26 AS OF 2014
Original Operation Manual English

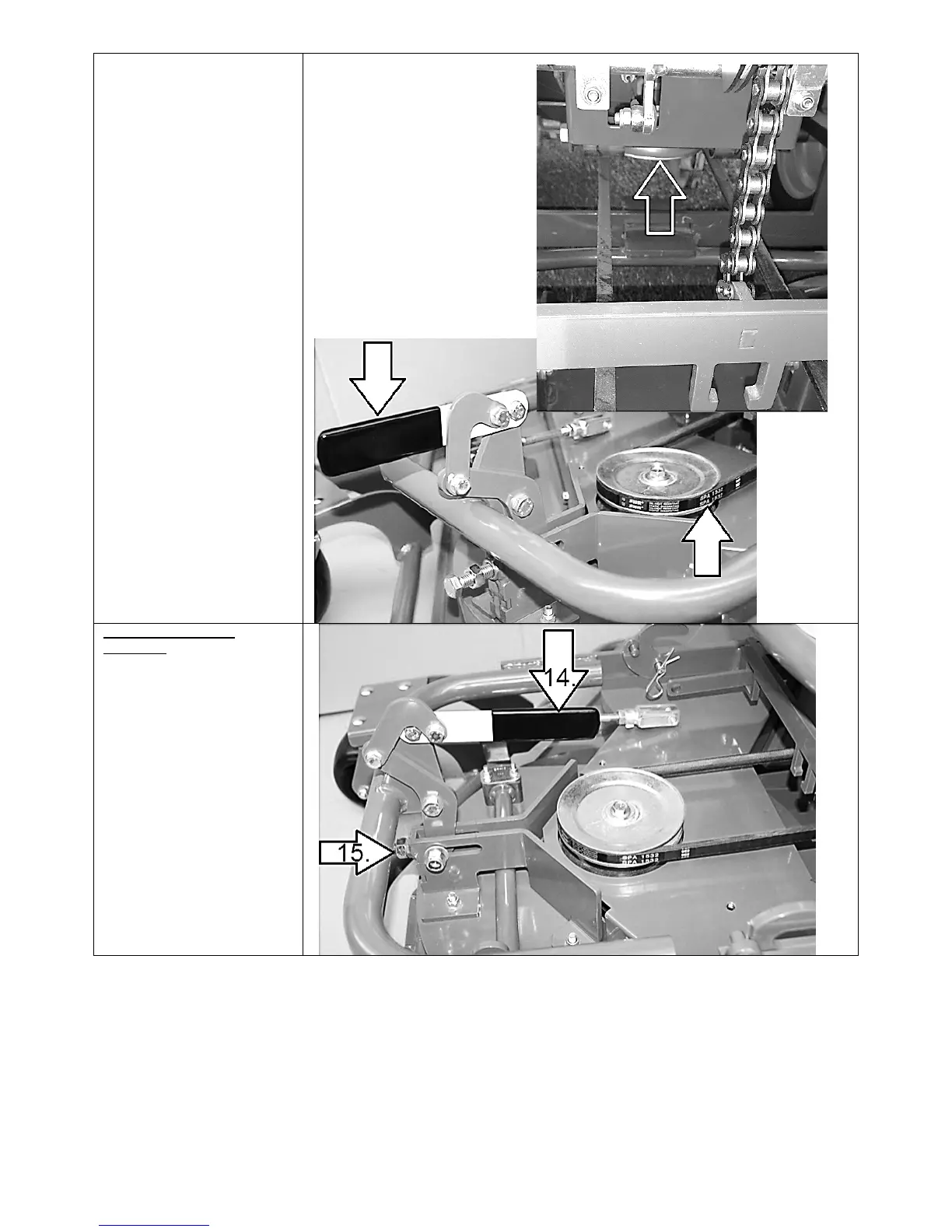

12. The lever of the V-belt
tensioner is set to slack.
13. Place the V-belt onto the belt
pulley.
A2: Setting the mowing
mechanism
14. Shift the lever of the V-belt
tensioner. The V-belt is
tensioned in this position.
15. The basic tension must be
increased if necessary. See
description in Section 4.4
Functions, V-belt tensioning.
