Crane Source Space Vector SV100 User Manual

15
SV100
Drive Class
Drive Rated
Amp.
Input
AWG
Output
AWG
Ground
AWG
DB Resistor
AWG
Control
AWG
230V Class
5.0
12 12
12 12
16
7.5
11
16 10 10
460V Class
2.5
12 12
4
5.5
8
Section 1.3: Wiring the Drive
1.3.1 Remove Cover From Drive

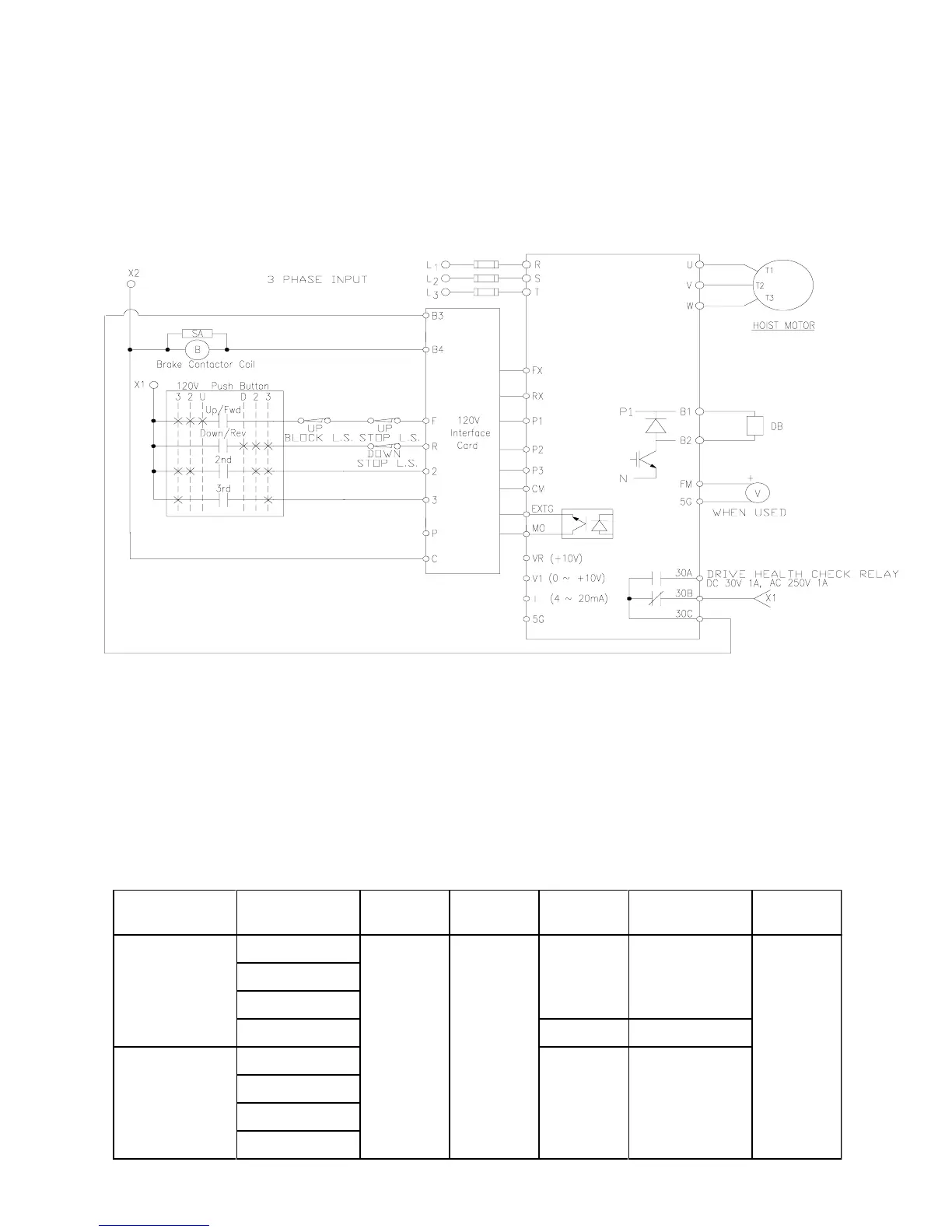

Figure 1.3.1 below is a reference for the basic Input / Output Terminals of a 460 VAC
SV100 drive. 230 VAC Models are wired the same.
Fig. 1.3.1: SV100 Layout For Basic Wiring
Drawings representative of other configurations are located in the Appendix.
1.3.2 Check For Correct Wire Gauges
Insure the correct wire gauges for the input and output power leads are being used before
wiring the drive. Use Table 1.3.1 for reference.
Table 1.3.1: Wire Gauge Reference Table.
