63
LOW VOLTAGE SIGNAL
Multi-Function Output terminals B3 and B4 programmed to 4: Low Voltage (LV fault)
Signal will close when the DC Link voltage falls below the low voltage level of the
drive (200VDC for 230 VAC, and 400VDC for 460 VAC drives).

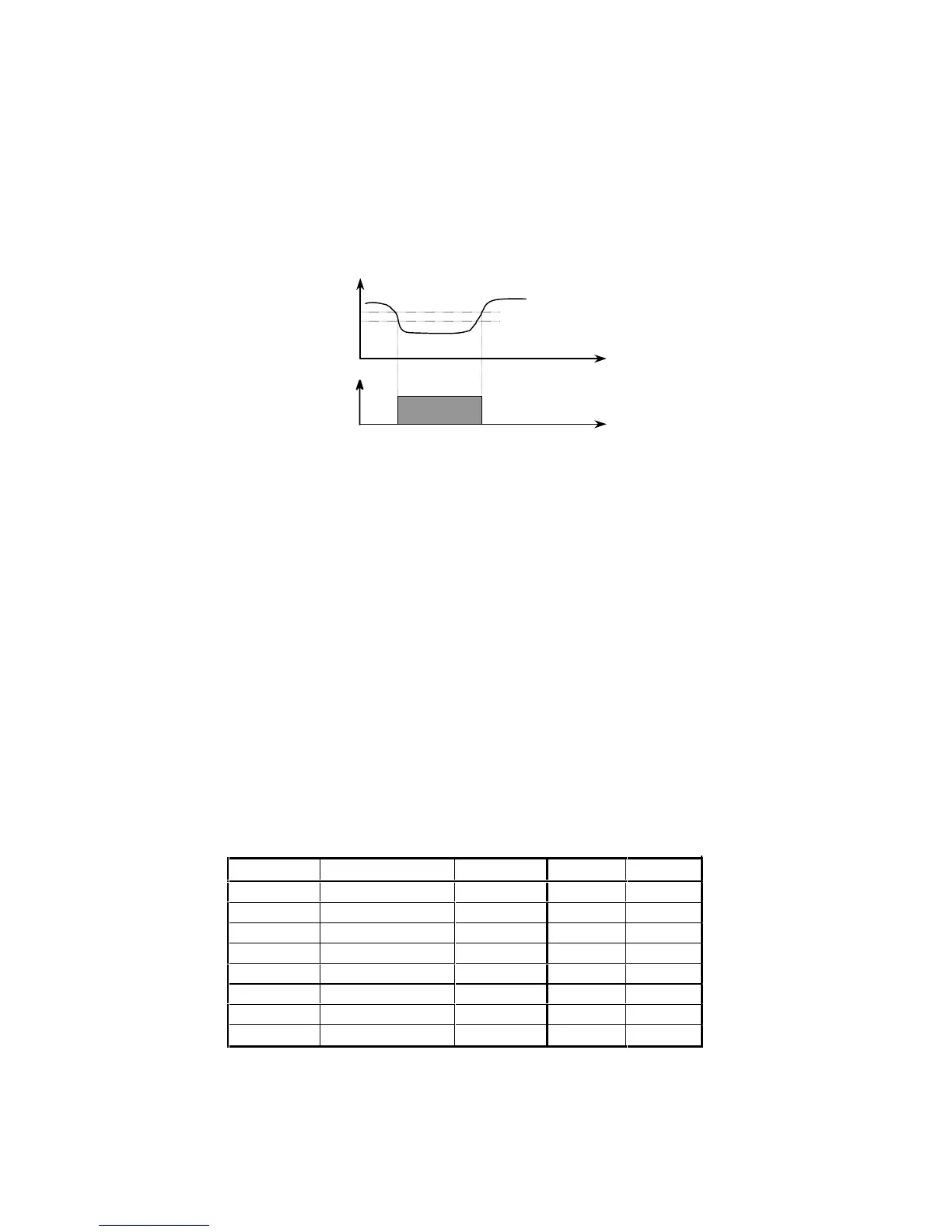

Fig. 5.2.3: Under-voltage Fault Signal
RUN / STOP SIGNAL
The Multi-Function Output terminals B3 and B4 programmed to 5: Run/Stop Signal
will close when the drive changes from a stop condition to a run condition.
5.2.5 Drive Model Selection
F8:
Drive Model Selection (Factory Default: See Table 5.2.2)
Range:See Table 5.2.2 below.
The drive model selection for each drive is preset at the factory. This parameter
must be set correctly in order for the drive to calculate its output current. Table 5.2.2
cross references the drive model number, horsepower, and voltage rating, and lists
the default values for Rated Motor Current (H21) and No Load Motor Current (H22).
Table 5.2.2: SV100 Part Number Cross Reference to Drive Model Selection
B3, B4
DC link voltage
time
ON
230V
200V
Model No. Description Part No. FLA (H21) NLA (H22)
1.2 1 HP - 230 Volt 446485-01 4.2 0.6
2.2 2 HP - 230 Volt 446485-02 6.8 1.8
3.2 3 HP - 230 Volt 446485-03 9.6 2.8
5.2 5 HP - 230 Volt 446485-04 15.2 4.4
1.4 1 HP - 460 Volt 446485-05 2.1 0.3
2.4 2 HP - 460 Volt 446485-06 3.4 0.9
3.4 3 HP - 460 Volt 446485-07 4.8 1.4
5.4 5 HP - 460 Volt 446485-08 7.6 2.2
B3 - B4
