5.3.4 Maximum / Minimum Operating Frequency
H11: Maximum Operating Frequency
Range:0.0 - F9 Hz. (Factory Default: 60.0 Hz)
H12: Minimum Operating Frequency (Factory Default: 0.0 Hz)
Range:0.0 - F9 Hz.
The output frequency range of the drive is limited to the values set in H11 and H12.
See Fig. 5.3.5.

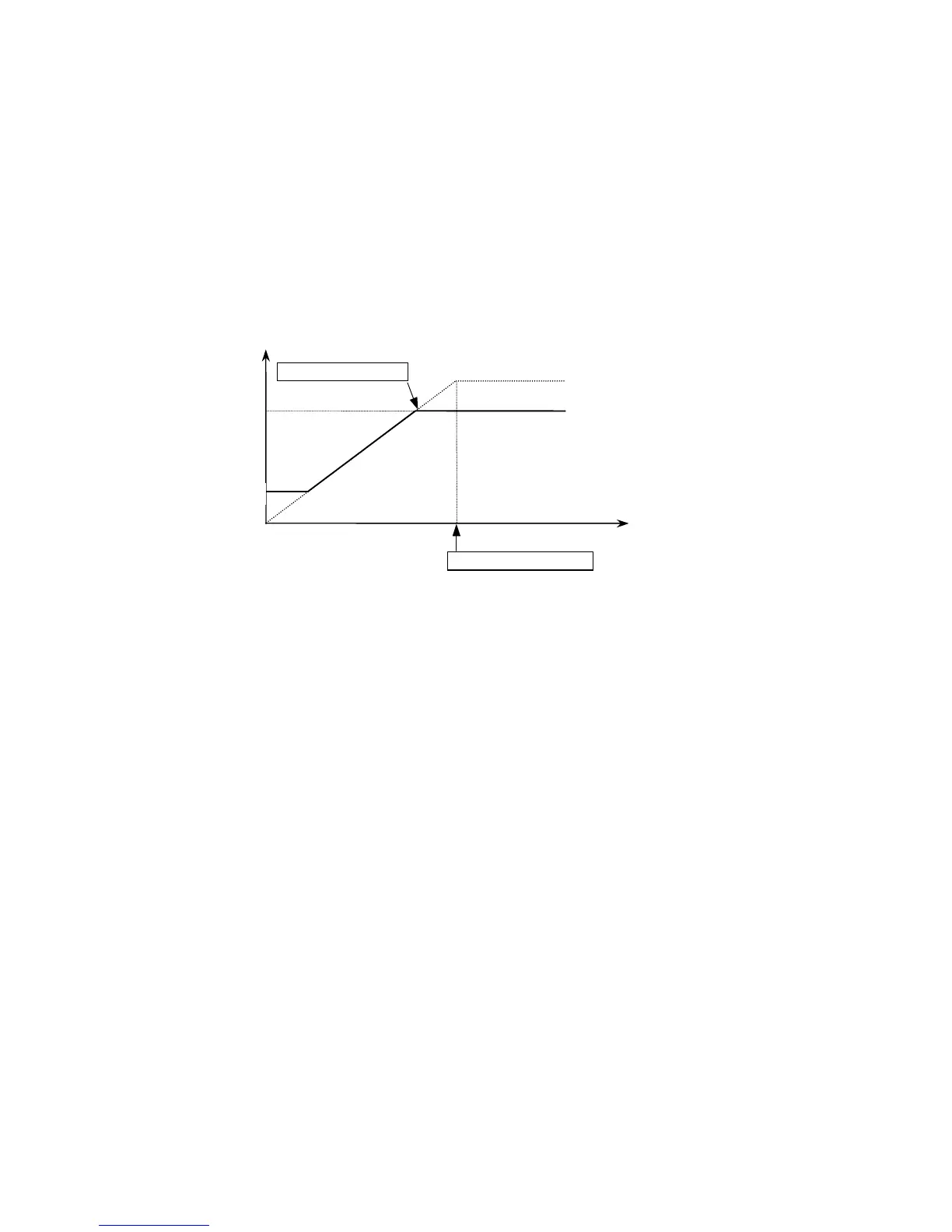

Fig. 5.3.5: Operational Maximum Frequency
Output Frequency
Command Frequency
50Hz
10Hz
Freq. ref.
Limited Frequency
H11
H12
