In the event of any failure the entire unit must be returned complete to Crane Merchandising Systems.
Due to the presence of flammable refrigerant, ground shipment must be used for transportation only.
Onsite repair of the sealed system, including evacuation of the unit, recharging, brazing, soldering or any other
heat producing method, is strictly prohibited. These tasks must only occur in a facility specifically equipped to
handle flammable refrigerants.
COMPONENTS

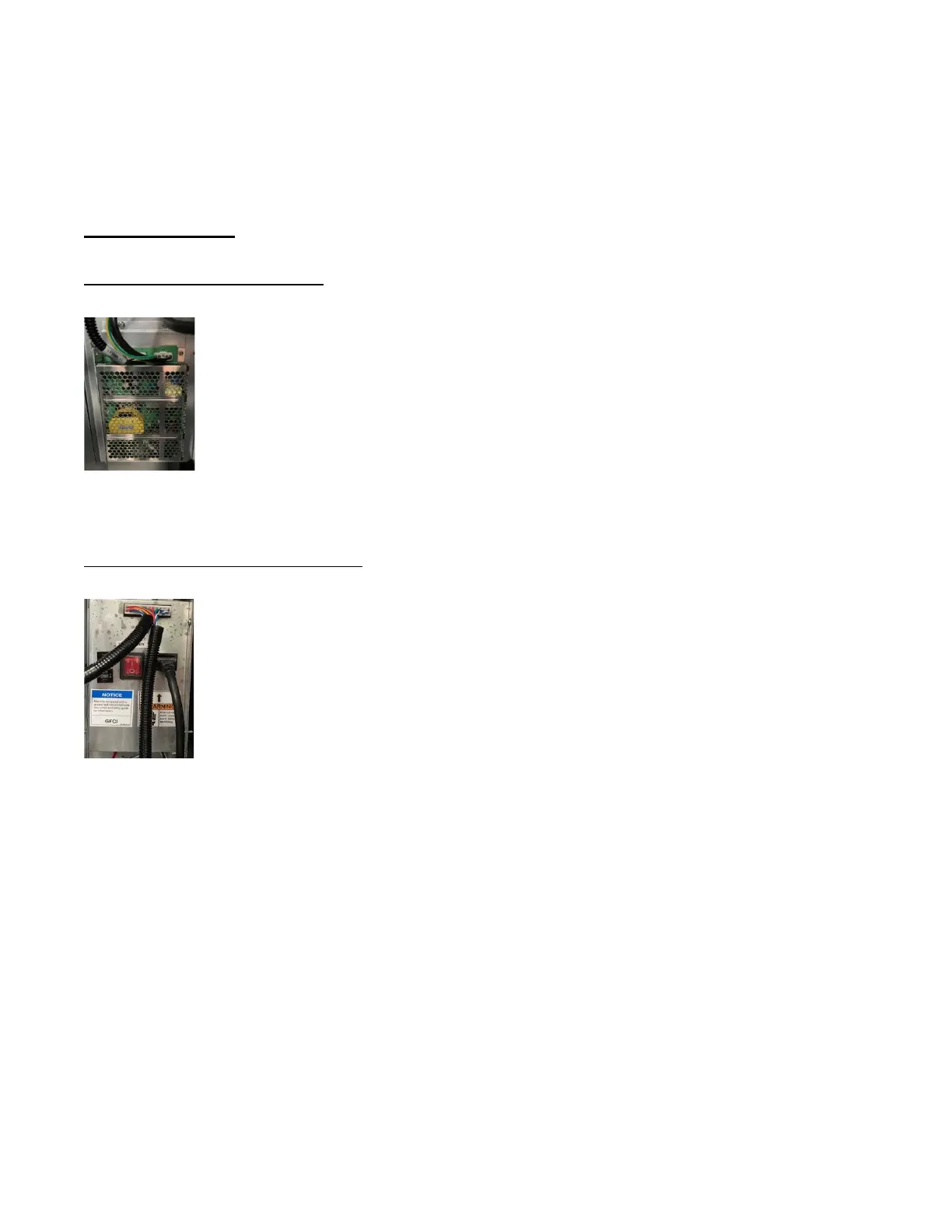

POWER SUPPLY 24V 150W
The New 24V 150W Power Supply is located inside the service area, mounted to the back wall
below the AC Distribution Box. It has 3 outputs with each one being capable of 150W. Two of
the outputs are wired into the AC Distribution Box. Each of the outputs are fused at 75W by the
circuit breakers in the AC Distribution Box Assembly. It contains a Board with Green status light
that illuminates when power is present. This 24V 150W Power Supply is common across all New
Electronics BevMax Platform Domestic, Export, Classic (BevMax 4), and Media (BevMax 6)
models. The Power Supply receives AC voltage via the AC Distribution Box. The Power Supply
converts the AC voltage to the main operating DC voltages of the Vender (24VDC). This Power
Supply is common across all New Electronics Platform BevMax Domestic, Export, Classic (BevMax 4), and Media
(BevMax 6) models.
POWER AC DISTRIBUTION BOX
The AC Distribution Box is located inside the service area, mounted to the back wall above the
Power Supply. It is where the 120VAC or 220VAC input voltage is sent to the Refrigeration Unit
& Condenser Fan, Evaporator Fan, and Power Supply which converts the AC voltage to the main
operating voltages of the Vender (24VDC). Those voltages are sent to the VMC via the P1 (4 pin)
connector. It contains an independent Cabinet Control Environmental Board for improved
troubleshooting and to distribute AC power to the Compressor, Evaporator/Condenser Fans, and
DC power to the LED Lighting and Encapsulated Temperature Sensor. The Compressor, two
vertical side LED Light Strips, and the Encapsulated Temperature Sensor are not powered up
when the Machine turns on. The Compressor turns on 2 minutes after the Machine is powered on. The two side
LED Light Strips, Evaporator Fan, and Encapsulated Temperature Sensor turn on when the Envionmental Cabinet
Control Board begins to communicate to the VMC (Vending Machine Controller). Two 3 Amp circuit breakers
protect the 24VDC supply. One is for the Cabinet and the other is for the Door electronics. This AC Distribution
Box is common across all New Electronics Platform BevMax Domestic, Export, Classic (BevMax 4), and Media
(BevMax 6) models.
