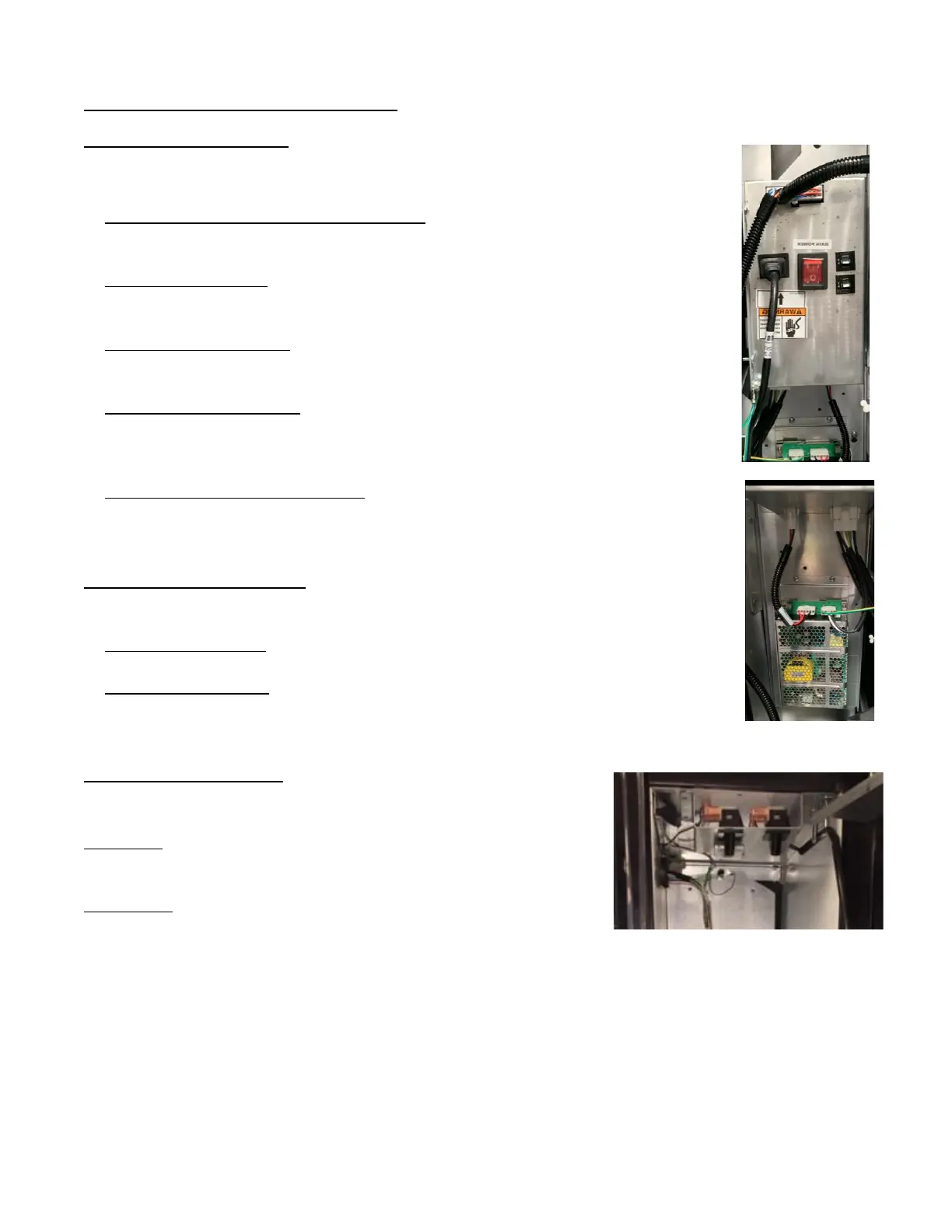

Major Component Description
AC DISTRIBUTION BOX
BevMax Refresh 4 5800-4/3800-4
120 VAC and 230VAC Machines
Main Power Switch or Power Supply Cord (A)
 Interrupts hot and neutral side of incoming AC Power to all components in Machine
from the electrical outlet.
8 Pin JST Connector (B)
 Provides AC power in to the Power Supply, Evaporator Fan, and Refrigeration Unit
(includes Condenser Fan and Defrost Control) from the AC Distribution Box.
4 Pin Molex Connector (C)
 Provides 24VDC in to AC Distribution Box Cabinet Control Environmental Board from
the Power Supply.
24 Pin Molex Connector (D)
 Provides 24VDC out to the VMC, it distributes 24VDC to the Cabinet Control Port
Board, 24VDC and 5VDC to the Cabinet Control Cup Board, Cabinet Control X Motor
Board, Cabinet Control Y Motor Board, and 3.3VDC to the Encapsulated Temp Sensor.
3 Amp 24VDC Circuit Breakers (2) (E)
 Protect the 24VDC from the Power Supply. One is for the Cabinet and the other is for
the Door electronics.
Power Supply 24V 150W
BevMax Refresh 4 5800-4/3800-4
120 VAC and 230VAC Machines
5 Pin JST Connector (F)
 Provides AC power in to the Power Supply from the AC Distribution Box.
6 Pin JST Connector (G)
 Provides 24VDC out to AC Distribution Box Cabinet Control Environmental Board from
the Power Supply.
Service Door Switches
BevMax Refresh 4 5800-4/3800-4
120 VAC and 230VAC Machines
Left Switch (Motor Power Interrupt Switch)
3 Amp/24VDC – in XY Motor Circuits, Port Door Motor Circuit, and Picker
Motor Circuit.
Right Switch (Door Service Switch)
.1 Amp/5VDC – in the VMC Service Switch input Circuit.
G
F
B
C
A
D
E
