Page 39 of 62
d. If the Cup Picker is stuck in the out position, go to Position Test and press “0” to cycle it back
to the home position. Once back at the home position ensure the VMC D5 Picker Home
Switch Diagnostic Red Light is On.
e. If the Picker is not (or no longer) stuck in the out position and the VMC D5 Picker Home Switch
Diagnostic Red Light is not On while in Position Test, verify the Plunger Home Spring is in the
cavity of the Plunger Assembly. Replace as necessary.
f. If the Picker Home Spring is present and the VMC D5 Picker Home Switch Diagnostic Red Light is
not On while in Position Test, the Picker Home Switch is not working. Replace as necessary.
g. Replace the Cup Assembly.
3. A Port Error.
a. Before replacing any Control Boards:
1) Check that the Cabinet Control Port Board is getting 5VDC from the VMC.
2) Ohm the Communication wire from the Cabinet Control Port Board to the VMC.
3) Check for Cabinet Control Errors “P Comms” Error in programming Test Mode, List Errors.
4) Replace the Cabinet Control Port Board.

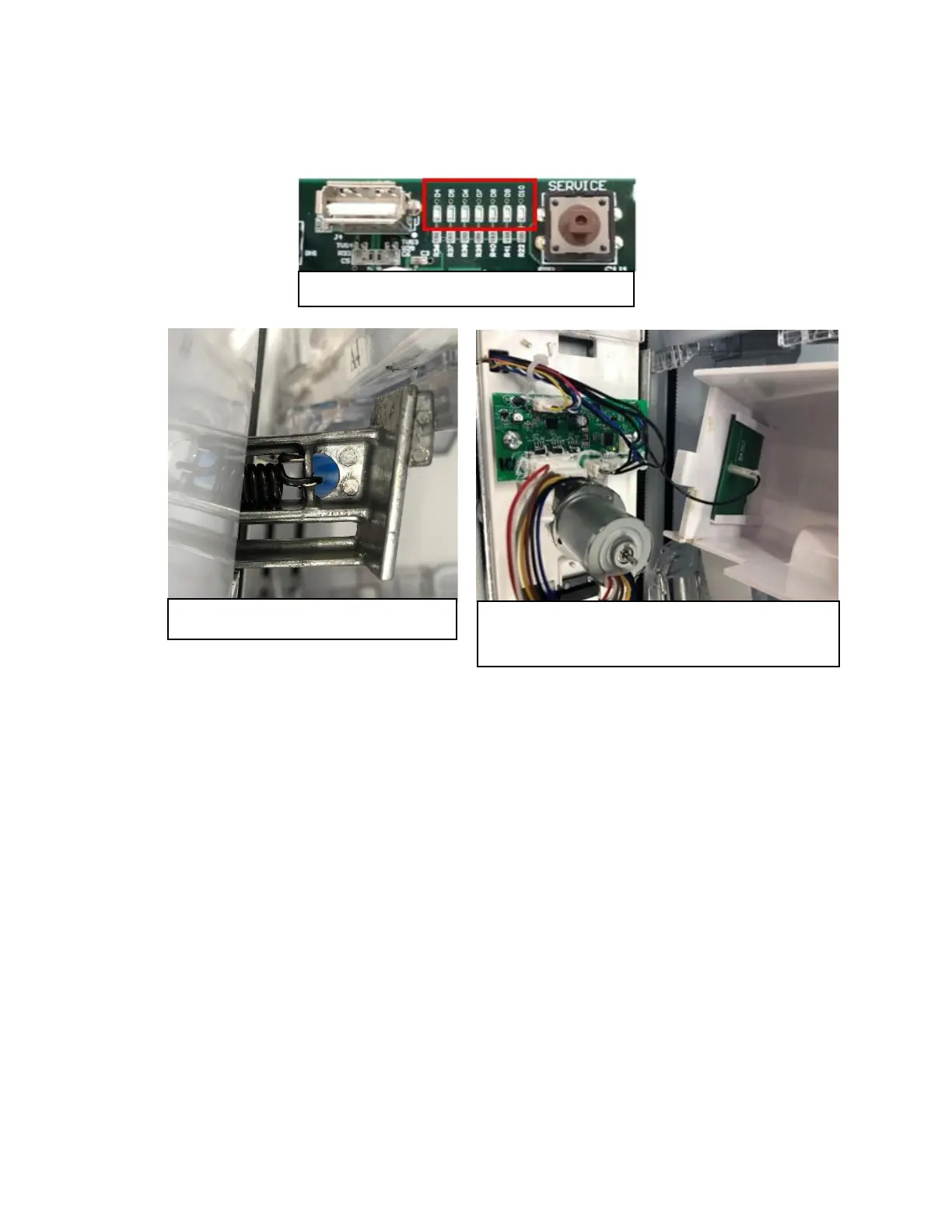

b. Remove top Port Motor cover and ensure the Cabinet Control Port Board Green status light is
flashing rapidly. If not, replace the Cabinet Control Port Board.
c. Go to Port Test and ensure the VMC D7 Port Closed Switch Diagnostic Green Light is On.
d. If the VMC D7 Port Closed Switch Diagnostic Green Light is not On, ensure the clear Port Door if
fully closed.
e. If the Port Door is fully closed and the VMC D7 Port Closed Switch Diagnostic Green Light is not
On, change the Cabinet Control Port Board.
