CreatBot D600 - Horizontal Dual Head Alignment

- 32 -
Align Dual Head Vertical
Software Opertation
Step 1: loose the screws on the back.
Step 2: raise or lower hotend with heads after cooling nozzle
Step 3: Lower left nozzle step by step same with right nozzle.
(Note: every time you raise or lower nozzle, you need to adjust the offset
value in autoleveling menu)
Tip: You can rising right nozzle as long time not use.
Add Multi Type Printer
You can add more than one
type of CreatBot to the software, and
easily switch between them without
re-config all the different machine
F1000
F1000(1000*1000*1000)
F160(160*160*200 mm)
F430(400*300*300 mm)
PEEK-300(300*300*400 mm)
- 33 -
Software Operation
Align Dual Head Horizontal
There are alignment problem while printing dual color model, this is
because the small difference in multi-nozzle assembly, CreatWare built
fine-tuning features.

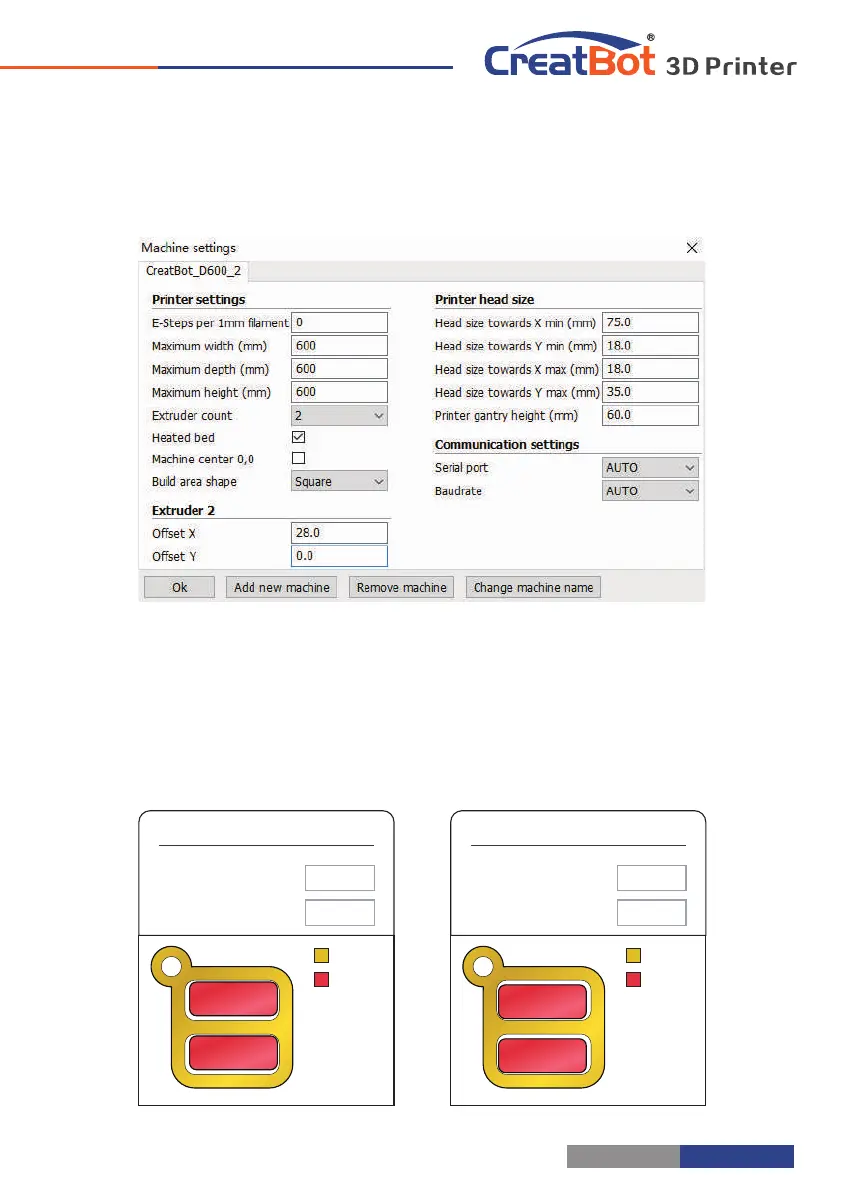

Click menu "Machine">"Machine settings", default X offset is: 20.0,
default Y offset is: 0.0, adjustment method as shown below:
Offset X：
27.7
Offset Y：
-0.3
Extruder 2
Extr. 1
Extr. 2
Offset X：
28.3
Offset Y：
0.3
Extruder 2
Extr. 1
Extr. 2
