PTZ Alignment Correction
To correct PTZcamera alignment in relation to the static wide-angle camera:
1. Open the Tracking Settings.

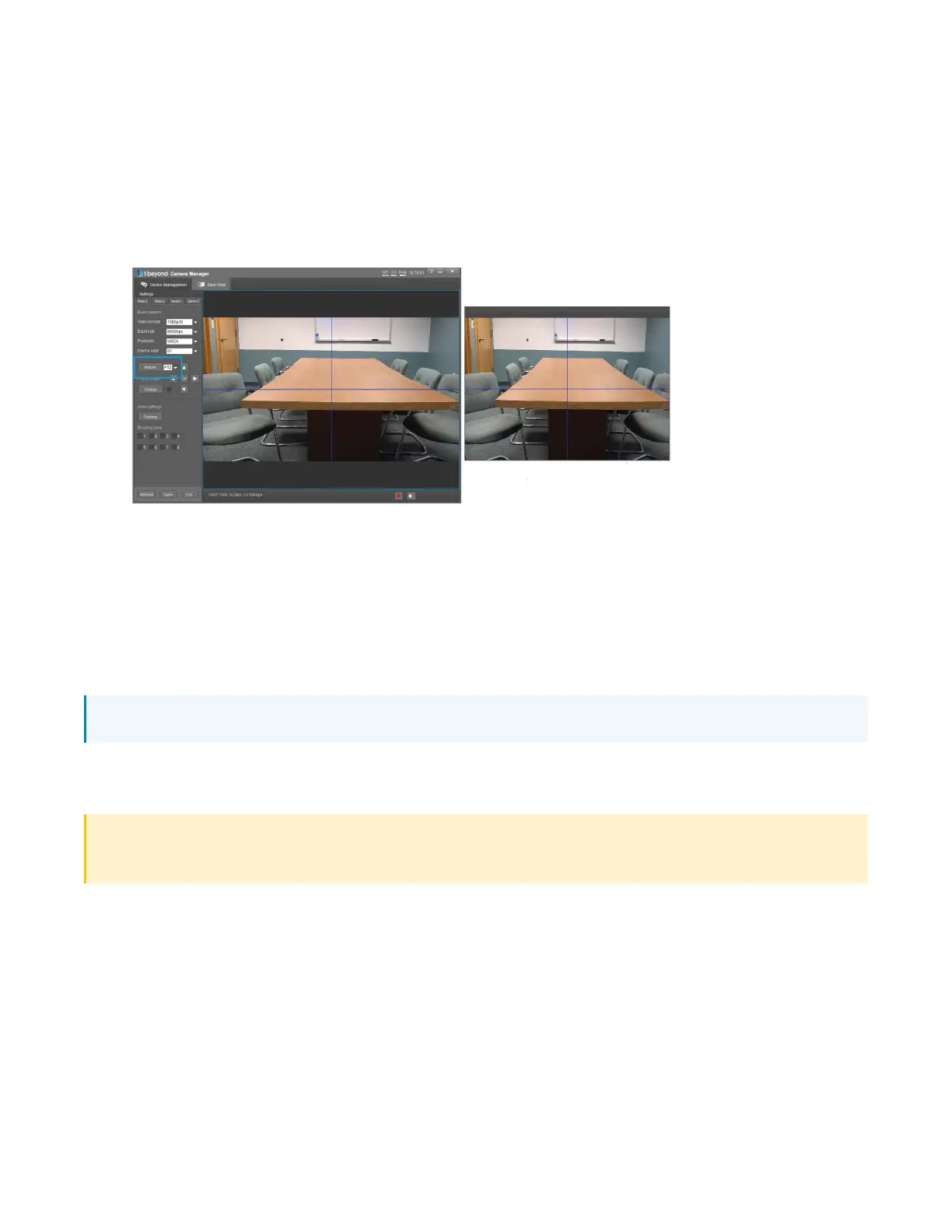

2. Locate the POSCorrect button in the Basic 1 tab of the settings panel. A secondary window will
be displayed showing the PTZ's video feed overlaid with a blue crosshair.
3. Place the PTZ video feed window next to the wide-angle feed so that both are visible
simultaneously.
4. Use the PTZ Lens controls in the settings panel to move the PTZ video feed's blue crosshair into
the same position as the wide-angle feed's crosshair. For the best results, place an object that
can be seen in both camera feeds as a point of reference for the blue crosshairs.
5. Once the blue crosshairs in the PTZ video feed and the wide-angle feed are aligned, click Save to
confirm the changes.
6. Click Return to exit the PTZ Alignment Correction interface.
NOTE:Click Exit to leave the PTZ Alignment Correction interface without saving any changes.
Face Height
This setting adjusts the camera’s calibration. The default value of the Face Height setting is 0.
CAUTION: Do not adjust the Face Height setting. Any value changed from the default value of 0 can
cause the camera to not track properly.
