Multitype Cresnet Distribution Block
The C2N-HBLOCK is a parallel distribution block for the termination of multiple Cresnet cables.
Three different types of connectors are provided to accommodate all types of Cresnet wiring,
including standard 4-wire Cresnet cable, Cresnet High-Power (HP)cable, and RJ-11 modular
cables (legacy installations only).

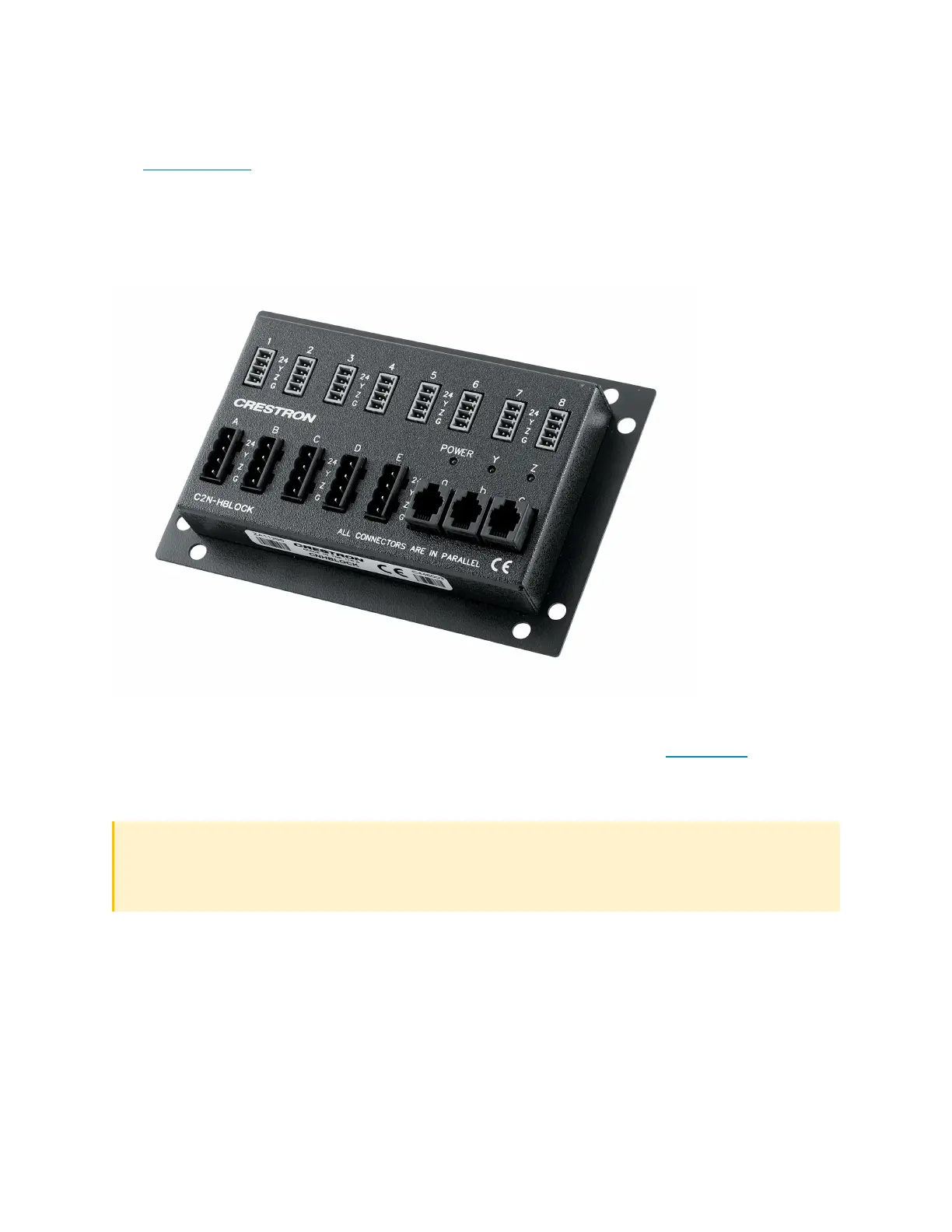

C2N-HBLOCK Multitype Cresnet Distribution Block
l
Diagnostic LEDs indicate the presence of network power and data.
l
Up to three units may be rack mounted together using the optional CNXRMAK rack mount
kit (sold separately).
l
Includes an integral mounting flange for mounting to a flat surface.
CAUTION:Do not connect or daisy chain more than one power input (power pack or power
supply)to the C2N-HBLOCK. Connecting multiple power inputs may cause damage to the
power inputs.
