10 • Cresnet® Network Design Guide — Doc. 9292A
Din Rail Cresnet Hub
The DIN-HUB is a DIN rail-mounted Cresnet hub designed for configuring large Cresnet
networks. DIN rail mounting enables modular installation alongside Crestron DIN Rail lighting
and automation control modules and other third-party DIN rail mountable devices.

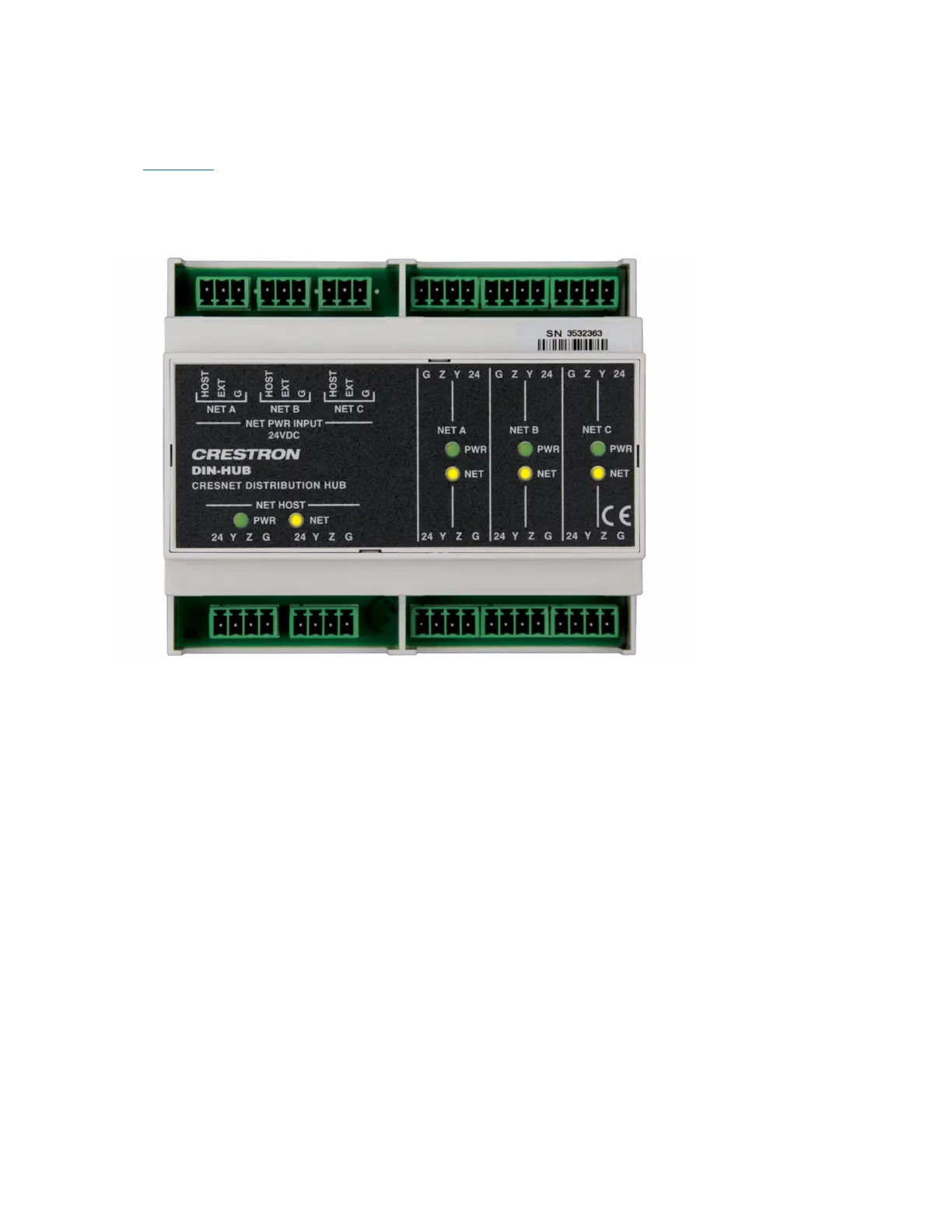

DIN-HUBDIN Rail Cresnet Hub
l
Diagnostic LEDs indicate the presence of network activity for connected devices.
l
Features three isolated Cresnet segments, each capable of supporting another 25 devices
with an additional aggregate run of 1,500ft (457m) of cable. More hubs can be added to
allow for a network of up to 90 devices.
l
Each isolated segment supports up to 75 W of power to secondary devices.
