Supported Cresnet Cables

The following Crestron cable types are supported for Cresnet wiring runs. Cables types should be

selected based on the Cresnet network installation requirements.

NOTE:For more information on determining the correct wire gauge to use for Cresnet

installations, refer to Calculate Power Requirements for Wire Runs (on page21).

Crestron Cresnet cables are compliant with the following regulatory standards:

NECArticle 800

UL®Subject 13, Type CM

CSAType CMG

RoHS

Non-Plenum Cables

CRESNET-NPseries cables are recommended for most standard Cresnet wiring runs.

CRESNET-NPseries cables contain one 18AWGpair for 24VDCand ground and one 22AWG

shielded twisted pair for control data within a non-plenum PVCjacket.

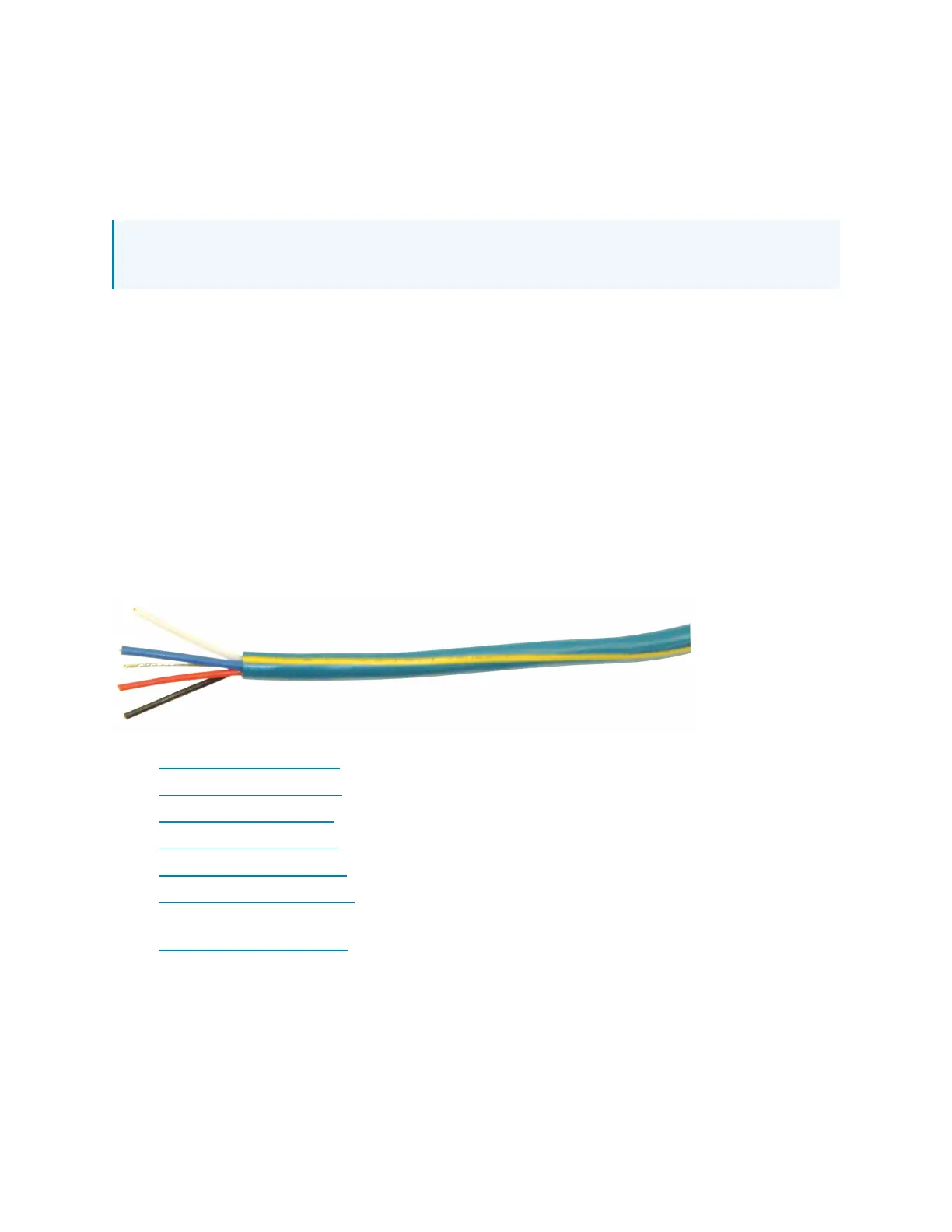

CRESNET-NPSeries Cable

CRESNET-NP-BK-B500:Cresnet Control Cable, Non-Plenum, Black, 500ft (152m) box

CRESNET-NP-OR-B500:Cresnet Control Cable, Non-Plenum, Orange, 500ft (152m) box

CRESNET-NP-TL-B250:Cresnet Control Cable, Non-Plenum, Teal, 250ft (76m) box

CRESNET-NP-TL-B500:Cresnet Control Cable, Non-Plenum, Teal, 500ft (152m) box

CRESNET-NP-TL-SP500:Cresnet Control Cable, Non-Plenum, Teal, 500ft (152m) spool

CRESNET-NP-TL-SP1000:Cresnet Control Cable, Non-Plenum, Teal, 1,000ft (304m)

spool

CRESNET-NP-WH-B500:Cresnet Control Cable, Non-Plenum, White, 500ft (152m) box
