To configure DM-NVX-E30(C) for 802.1X Authentication:
Move the IEEE 802.1X authentication slider to Enabled. This will enable all options on
the 802.1X dialog.
Select the Authentication method: EAP-TLS Certificate or EAP-MSCHAP V2
Password according to the network administrator's requirement.
If EAP-TLS Certificate is the selected authentication method, click Manage
Certificates to upload the required machine certificate.
The machine certificate is an encrypted file that will be supplied by the network
administrator, along with the certificate password.
-or-
If EAP-MSCHAP V2 Password is the selected authentication method, enter the
Username and Password supplied by the network administrator into the Username and
Password text fields. The Password method does not require the use of a machine
certificate, only the user name and password credentials.
If the Enable Authentication Server Validation option was enabled, this will enable the list
box of signed by trusted CAs certificates pre-loaded into the DM-NVX-E30(C).
Select the check box next to each CA whose certificate can be used for server validation,
as specified by the network administrator.
If the network does not use any of the listed certificates, the network administrator will
provide their own certificate, which must be uploaded manually, via the Manage
Certificates functionality.
If required, type the domain name of the network in the Domain field.
When the 802.1X settings are configured the way you want, click Save Changes to save
the changes to the device and reboot it.
Click Revert to cancel any changes.

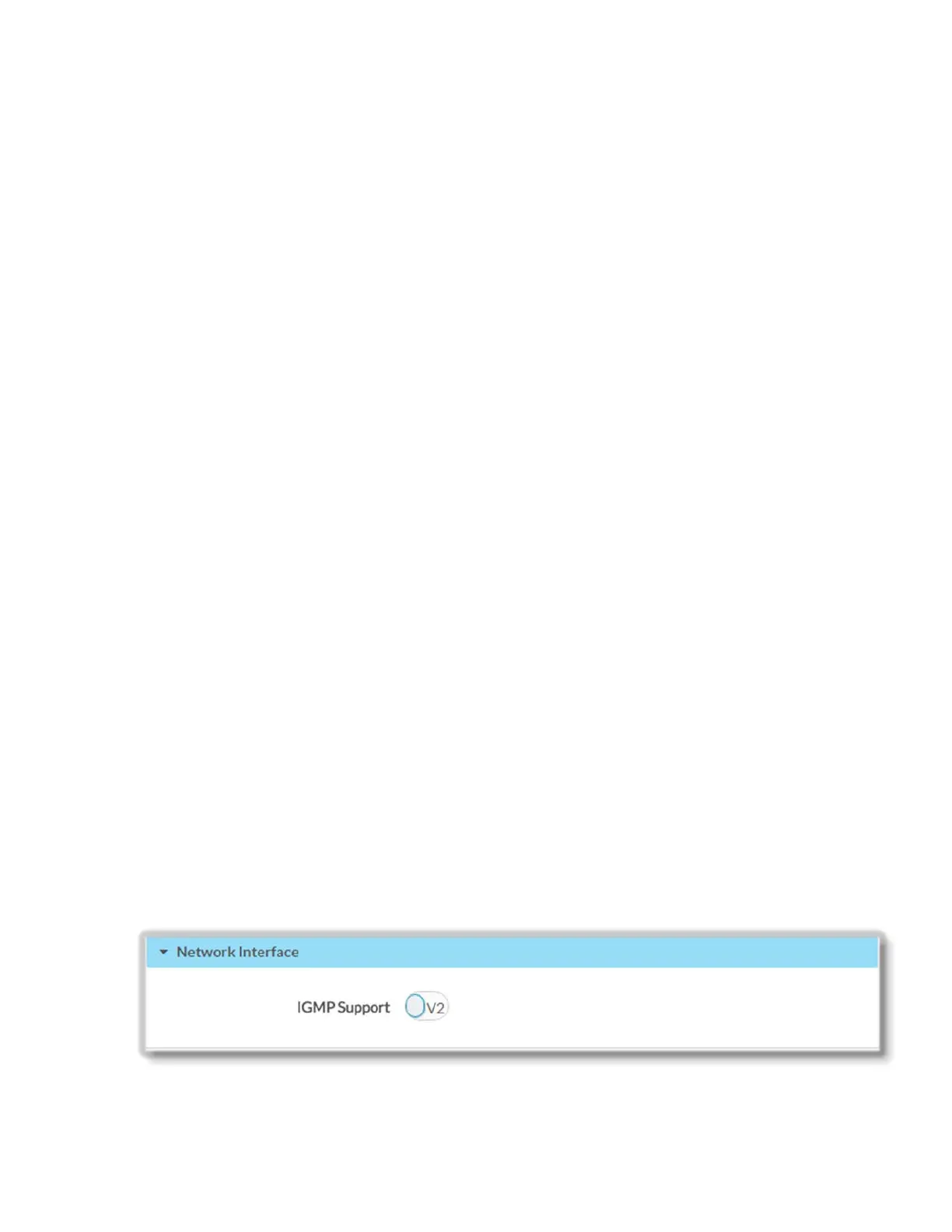

Network Interface
Use IGMP Support check box to switch between IGMPv2 (default setting) and IGMPv3
snooping based on existing network setup.
27 • DM-NVX-E30(C)
